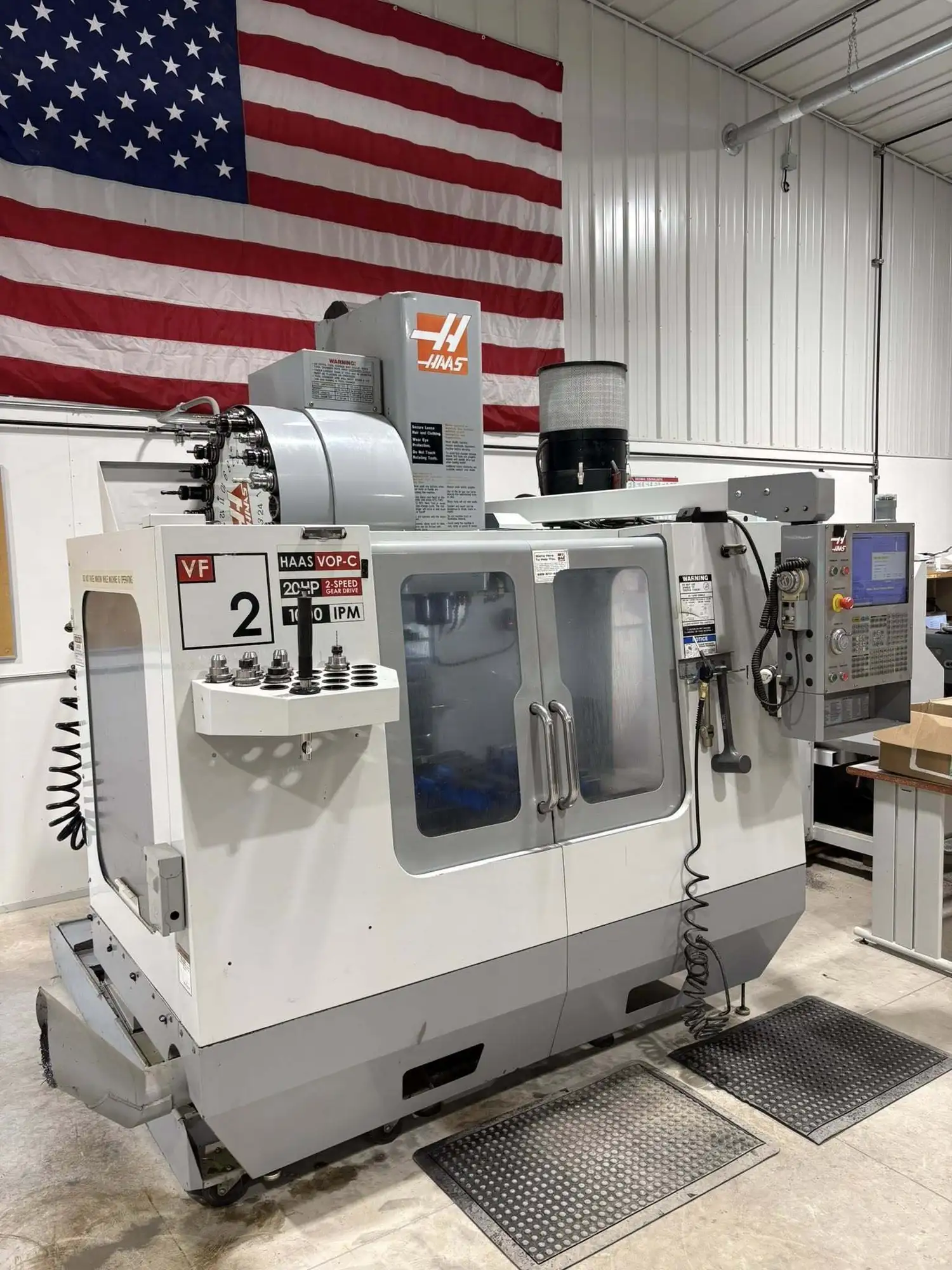

Used Vertical Machining Center, 30" x 16" x 20" travel, 30 hp, 7,500 RPM, 24 ATC, 4th axis drive, spindle probe/tool setter, chip auger, 2-speed gearbox, USB port. Vises/tool holders/coolant filter not included.
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 7,500 RPM | 7,500 RPM |
| # ATC | 24 | 24 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 3 | 3 |
| Control | CNC (HAAS) | CNC (HAAS) |
4th axis drive
24+1 side mount tool changer
Spindle probe and tool setter
Chip auger
2 speed gearbox 7500 rpm spindle
USB port
Vises, tool holders, and coolant filter system not included
