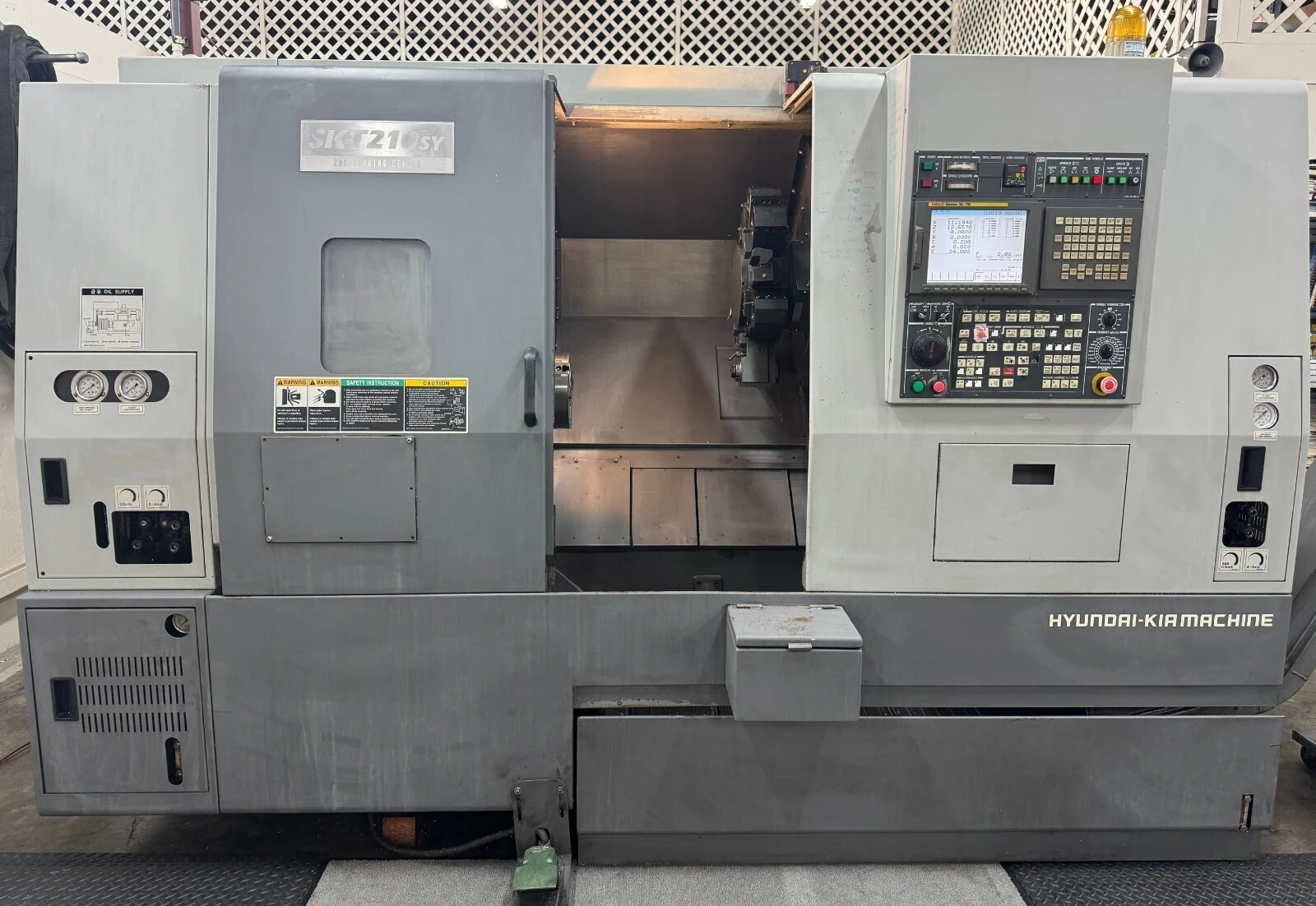

USED 2006 HYUNDAI KIA SKT-210SY
Overview
Description
Used CNC lathe, featuring an 8" main chuck, 4,000 RPM spindle, and 20 HP motor. Equipped with FANUC 18i-TB control, LNS chip conveyor, live tooling, and servo-controlled C-axis. Compact design, 12,000 lbs.
Specifications
| Swing | 21.7" | 551.18 mm |
|---|---|---|
| Machining Length | 20.9" | 530.86 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 120" x 68" x 85" | 120" x 68" x 85" |
| Weight | 12,000 lbs | 12,000 lbs |
MAIN SPINDLE
Chuck Size: 8"
Bar Capacity: 2.5"
Spindle Speed: 4,000 RPM
Spindle Nose: A2-6
Max Swing Over Bed: 21.7"
Max Turning Diameter: 9.5"
Max Machining Length: 20.9"
Main Motor: 20 HP
SUB-SPINDLE
Chuck Size: 6"
Bar Capacity: 1.7"
Sub-Spindle Speed: 6,000 RPM
Sub-Spindle Motor: 5 HP
TURRET & LIVE TOOLING
Turret Stations: 12
Live Tooling
Live Tool Motor: 7.5 HP
Live Tool Speed: 4,000 RPM
AXES & TRAVELS
X-Axis Rapid Traverse: 1,417 IPM
Z-Axis Rapid Traverse: 1,417 IPM
X-Axis Travel: 8.7"
Y-Axis Travel: 3.1" (+/- 1.55")
Z-Axis Travel: 21.7"
B-Axis (Sub-Spindle) Travel: 28.3"
DIMENSIONS & WEIGHT
Dimensions: 120" x 68" x 85" (162" with chip conveyor)
Weight: 12,000 lbs
Equipped With
FANUC 18i-TB CNC Control
LNS Chip Conveyor
(4) Live Tool Holders
8" 3-Jaw Hydraulic Chuck (Samchully Powergrip H-08)
Royal 5C Collet Chuck
ATS 5C Collet Chuck on Sub-Spindle
Parts Catcher
Tool Setter
Servo-Controlled C-Axis on Both Spindles
