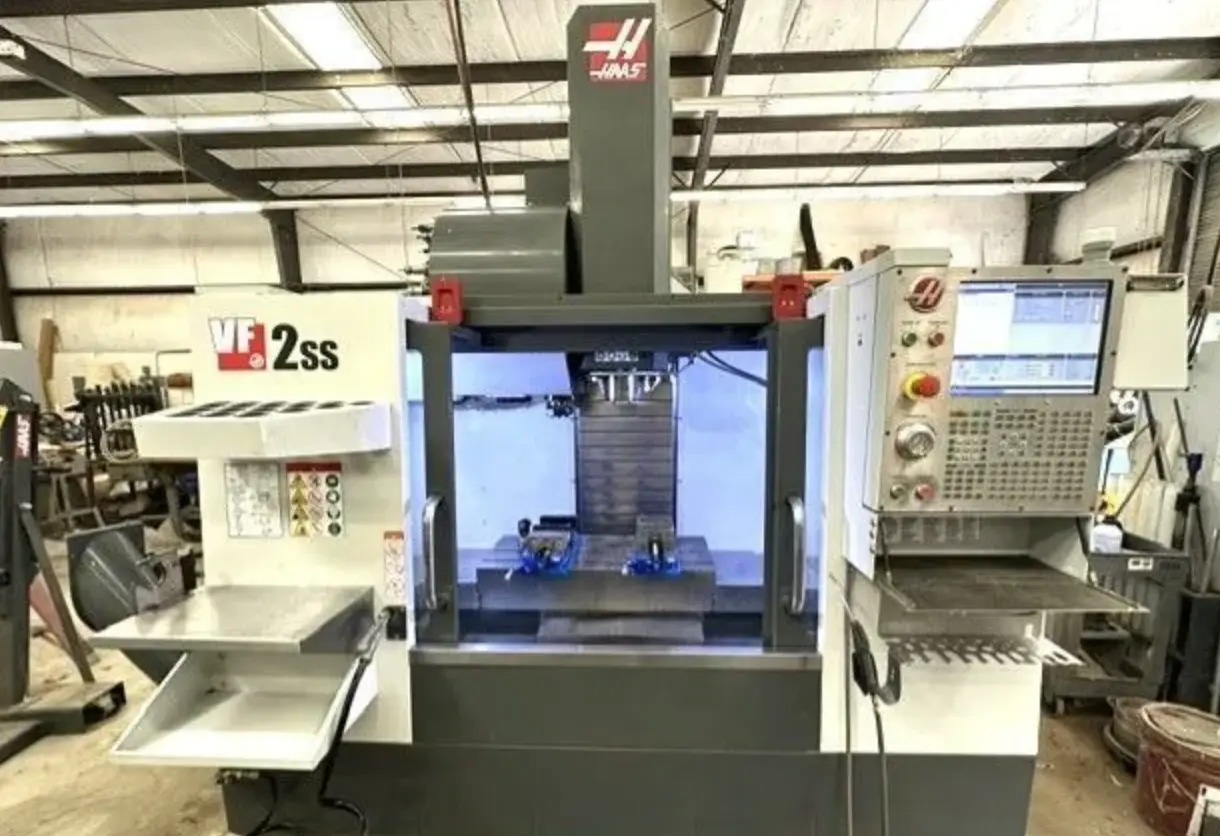

Used Vertical machining center offers 30" x 16" x 20" travel, 30 hp, 12,000 RPM spindle, 4-axis capability, and advanced HAAS CNC control. Equipped with WIPS, chip auger, and more.
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 4 | 4 |
| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 106"L x 101"W x 101"H | 106"L x 101"W x 101"H |
| Weight | 7,800 lb | 7,800 lb |
TABLE CAPACITY 1,500 lb
RAPID TRAVERSE - X AXIS 1,400 in/min.
RAPID TRAVERSE - Z-AXIS 1,400 in/min.
CUTTING FEEDRATE 833 ipm
HAAS NEXTGEN CNC CONTROL
HAAS HRTA6 (A1-6 SPINDLE NOSE)
HAAS HTS6 6" MANUAL TAILSTOCK
4TH AXIS DRIVE
THROUGH SPINDLE COOLANT (300 PSI)
WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
12,000 RPM SPINDLE
24 ATC SIDEMOUNT TOOL CHANGER
CHIP AUGER
DOOR SAFETY LOCK
55-GALLON COOLANT TANK
COOLANT MIXER/INJECTIONS SYSTEM
HIGH SPEED MACHINING
VISUAL PROGRAMMING SYSTEM (VPS) EDITING
COORDINATE ROTATION & SCALING
M19 SPINDLE ORIENTATION
MACROS
WIRELESS NETWORKING
COMPENSATION TABLES
MEDIA DISPLAY
RIGID TAPPING
ETHERNET
USB PORT
WI-FI
** COOLING WITH RO WATER ONLY
** MACHINE CUTTING PRIMARILY ALUMINUM
