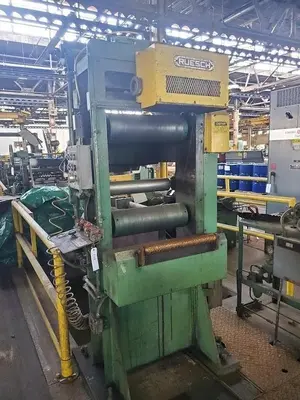

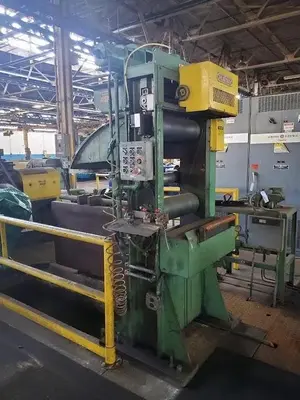

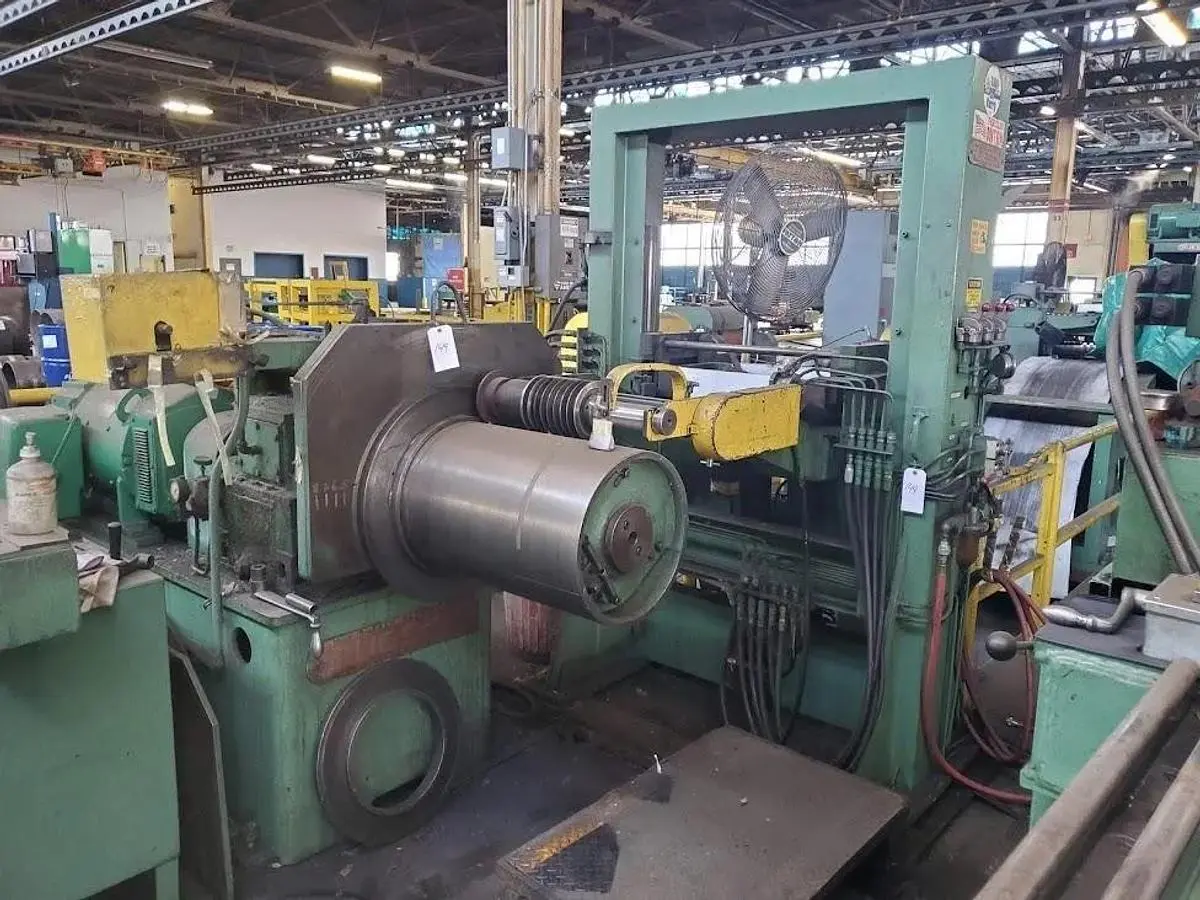

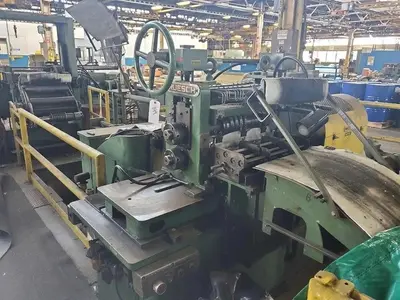

18” x .025” - .003” Ruesch Ring Type Precision Double Loop Slitting Line

The 18" Ruesch Ring Type Precision Double Loop Slitting Line is a used industrial machine designed for precise slitting of materials. It supports a thickness range from 0.003" to 0.025" and can process widths from 0.210" to 18". The machine achieves slit widths between 0.500" and 17.750", accommodating a variety of production needs.
This slitting line includes several integral components, such as the Ruesch Uncoiler with an 8,000 lb. capacity and hydraulic expansion, a Ruesch Slitter with a 30 HP DC drive, and a Ruesch Recoiler featuring a 25 HP DC drive. Additionally, it comprises an elevating drag pad tension stand, overarm separator, and entry & exit looping pit tables to ensure smooth operation.
The line operates at a maximum speed of 1,000 feet per minute, optimizing production efficiency. It also includes essential elements like an edge guide stand, scrap baller, and operator control console for optimal functionality. Tooling is included, making this slitting line ready for immediate use in high precision applications.
Ruesch Uncoiler
Model: N2799B
8,000 Lb. Capacity
16", 20" & 24" Coil ID
Hydraulic Expansion
Hydraulic Sliding Base
Paper Winder
Ruesch Payoff Bridle
Serial Number: 6108
Edge Guide Stand
Entry & Exit Looping Pit Tables
Ruesch Slitter
Model: 146
Entry Edge Guides
30 HP DC Drive
Entry & Exit Looping Pit Tables
Scrap Baller
Elevating Drag Pad Tension Stand
Overarm Separator
Ruesch Recoiler
16" Collapsible Drum
12" Diameter Drum
25 HP DC Drive
Wayne Equipment Turnstile
Ruesch Turnstile
Model: N2799
Two Drums
Operator Control Console
Tooling Included
