18” x 2.625” Arbors x 6,000# Ruesch Ring Type Slitting Line

Specifications:
Manufacturer: Ruesch
Maximum Coil Weight Capacity: 6,000 Lbs.
Entry Coil I.D.: 16”
Maximum Entry Coil O.D.: 72”
Exit Coil I.D.: 6”, 8”, 12”, & 16”
Maximum Exit Coil O.D.: 60”
Maximum Strip Width: 18”
Line Components:
Paper Unwinder

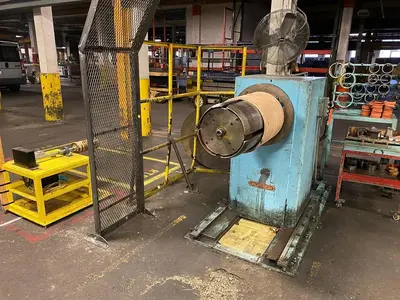

Ruesch Uncoiler:
-32” Mandrel Face
-Four Leaf Hydraulic Expansion
-Disc Brake
-Feed-Up Drive
-Self-Contained Hydraulics
Entry Edge Guides
Deburring Roll

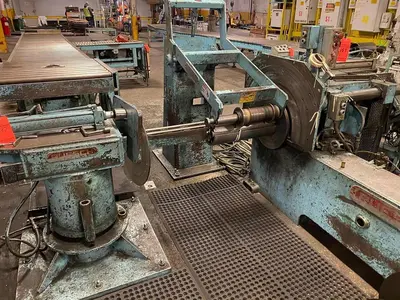

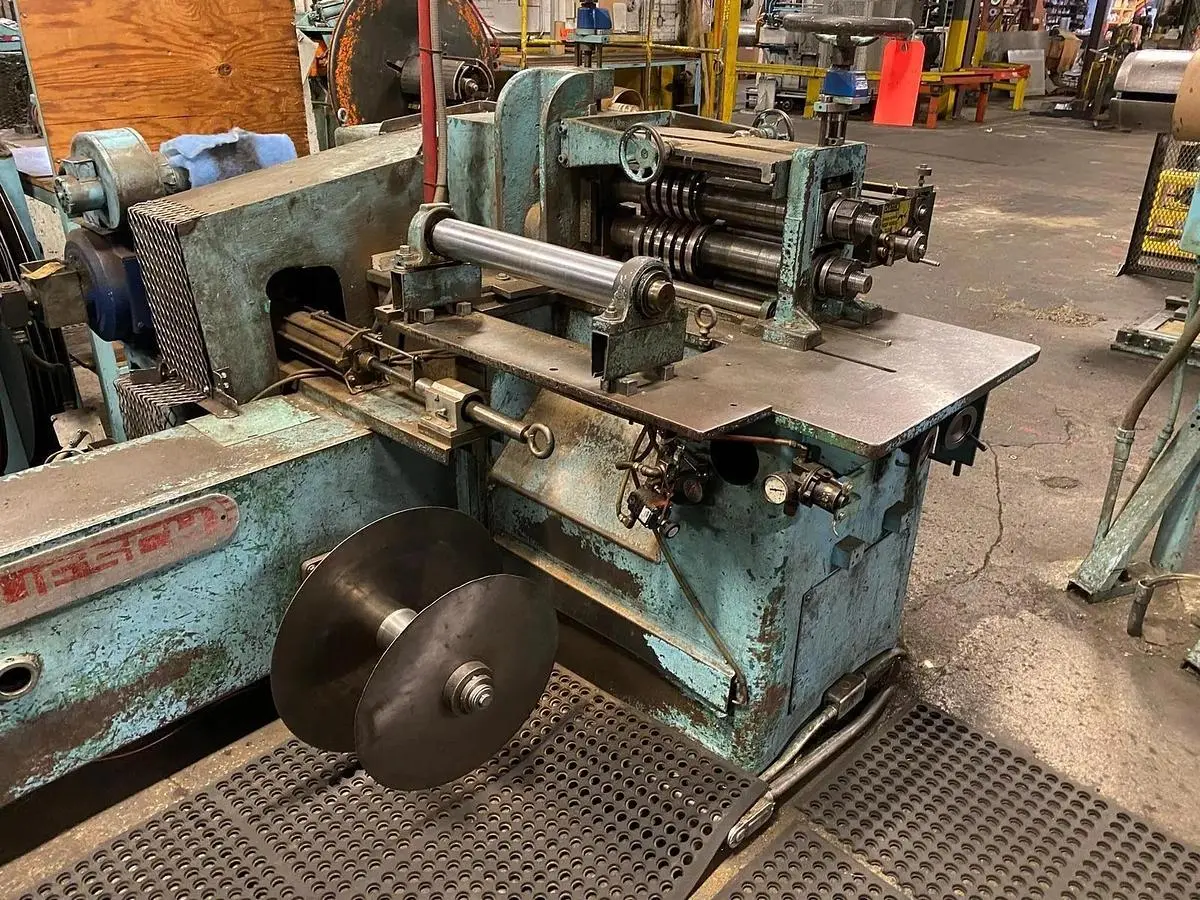

Ruesch Slitter Head:
-25 HP DC Drive
-S/N: N2371A
-Ring Slitter Design
Scrap Winder
Oscillator
Ruesch Recoiler:
-Floor Standing Overarm Separator
-25 HP DC Motor
-Two-Speed Gear Box
-Hydraulic Push-Off Plate
-Separator Disks For Smaller Widths
One Arm Turnstile:
-Hydraulic Push-Off
-Manual Rotation
Ruesch Horn Type Downlayer:
-41” Roll Face x 48” Wide
20’ Exit Conveyor

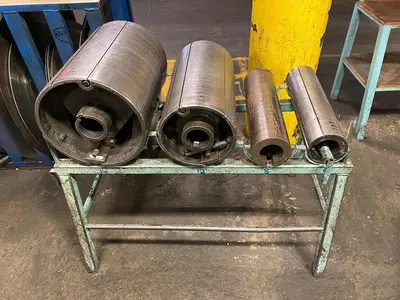

Large Quantity Of Tooling, Rubbers, Spacers, & Knives Included
Elite Carotron Digital Drives
Additional Notes:
-Slitter Head & Recoiler Share Common Base
