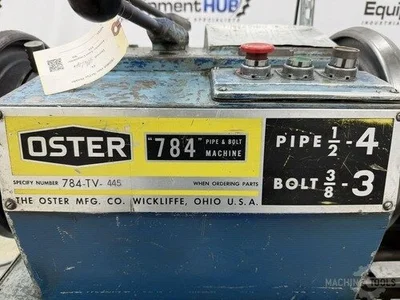

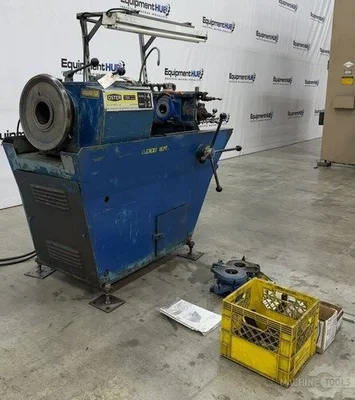

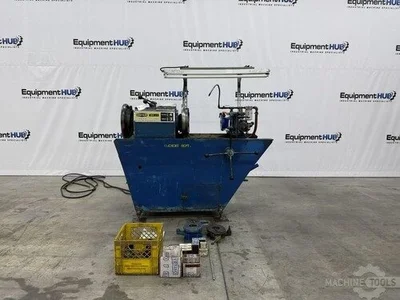

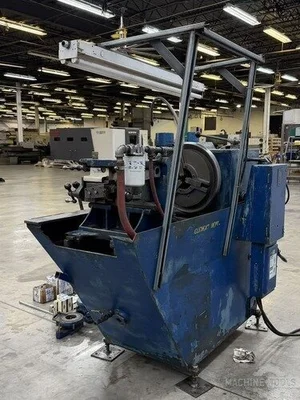

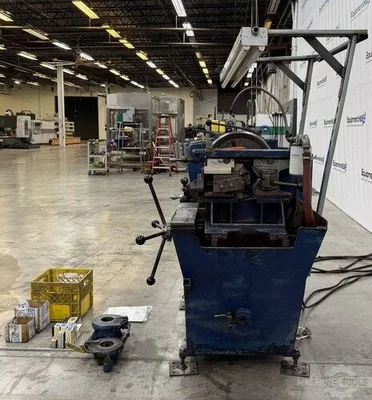

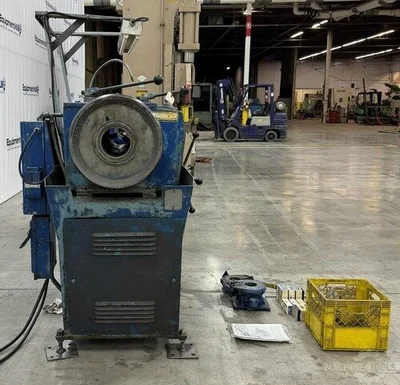

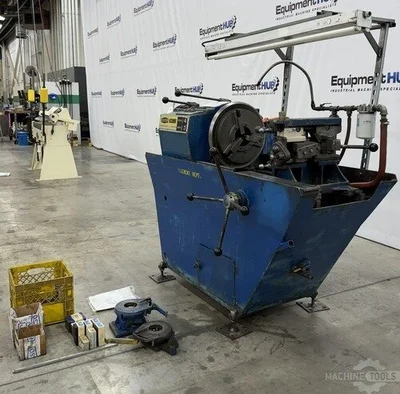

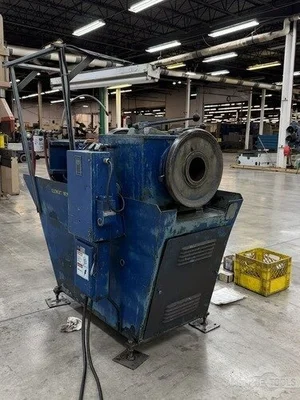

Oster 784 4" Pipe & Bolt Threading Machine
| Max Dia. of Thread | 4" | 101.6 mm |
| Min Dia. of Thread | 0.5" | 12.7 mm |
General Info
Stock #: 190260018
Location: Decatur, GA
Brand: Oster
Model: 784
Approx. Shipping Weight: 2250 Lbs.
Approx. Shipping Dimensions: 6' L x 4' W x 6' H
Skidding Fee: $150
Specifications
Pipe Threading Capacity: 1/2"-4"
Bolt Threading Capacity: 3/8"-3"

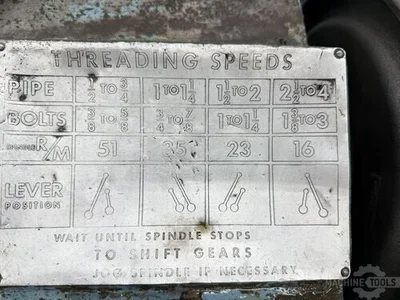

Spindle Speeds: 16, 23, 35, 51 RPM (4-speed gear transmission)
Carriage Travel: 15"
Electrical: 460V/3PH
Equipped With

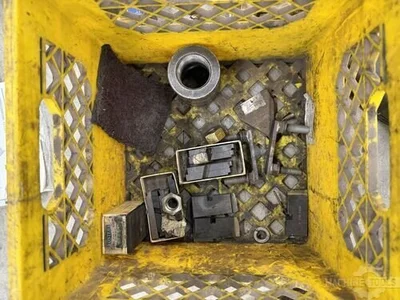

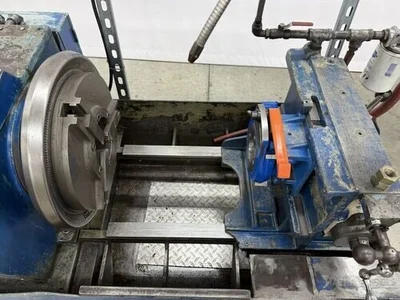

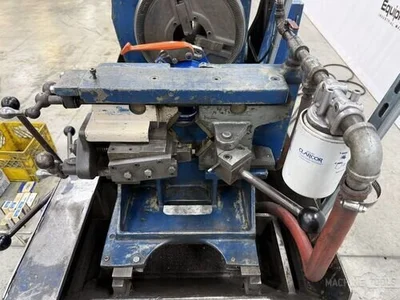

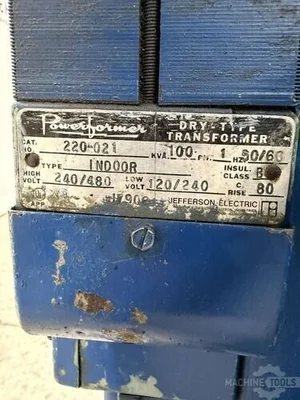

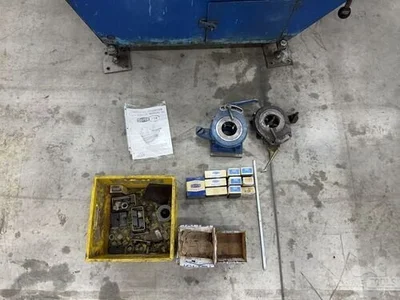

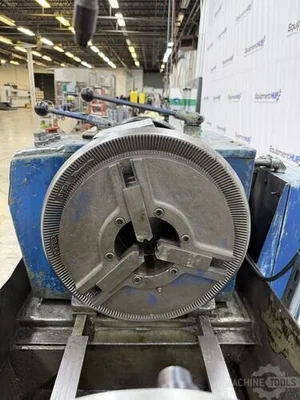

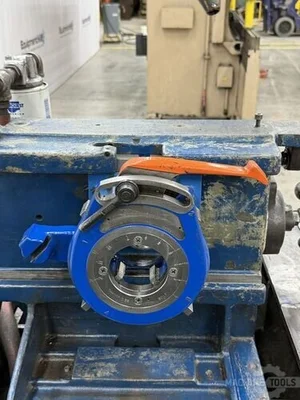

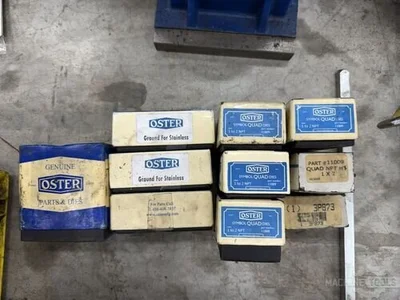

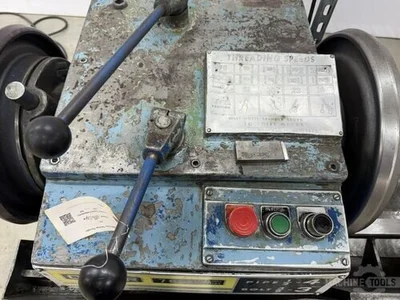

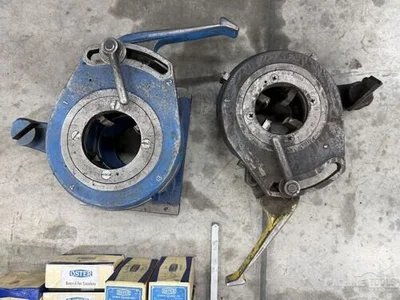

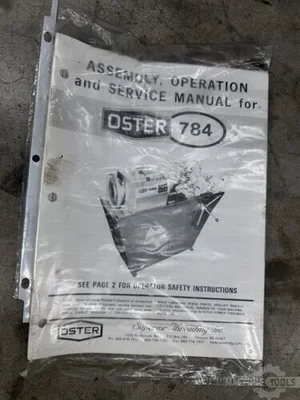

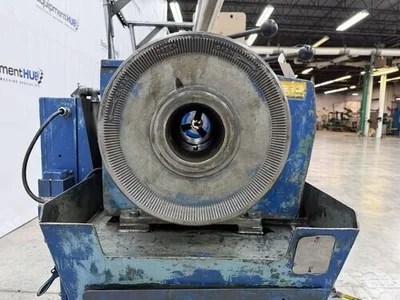

Wrenchless Three-Jaw Universal Front Gripping Chuck, Wrenchless Three-Jaw Rear Centering Chuck, Swing-Type Reamer, Lathe-Style Blade Type Cut-Off Tool with Double V Block Centering, Chamfer Tool, Reversing Magnetic Starter with Push Button Controls (Start/Stop/Emergency Stop), Jog-Run Selector Switch, V-Belt Driven Oil Pump, Oil Pan with Chip Tray, Oil Filter (Clarcor), Jefferson Electric Powerformer Dry-Type Step-Down Transformer (Cat. 220-021, 240/480V to 120/240V, 1Ph), Overhead Pipe Support Rack, Leveling Feet/Pads, (2) Quick-Opening Lever-Operated Die Heads (Symbol QUAD for 1"-2" and Symbol 74 for 2-1/2"-4"), Multiple Sets of Oster Symbol Quad Dies 1"-2" NPT (Part #11009), (2) Sets Oster Ground for Stainless Dies, Assorted Spare Parts and Chuck Jaws, Assembly/Operation/Service Manual, Power Cable
Additional Info
The Oster Pipe Threader can be demoed upon request, check out the video on the listing to see it in operation.
