USED ATRUMP K3V

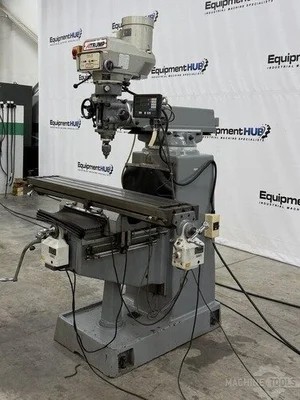

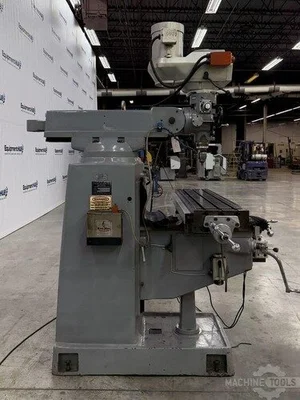

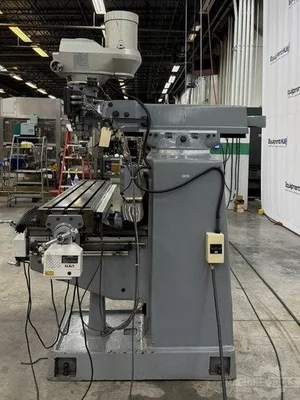

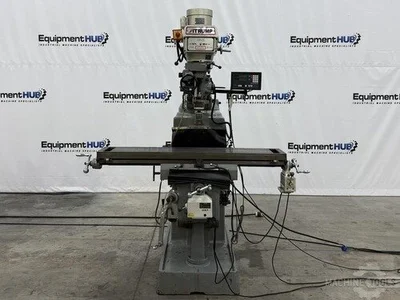

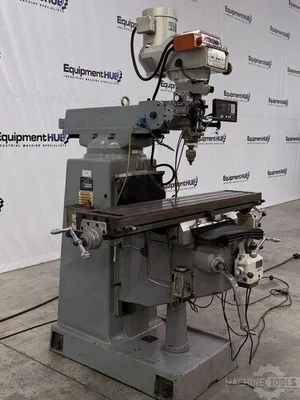

Atrump K3V 11" x 58" Vertical Milling Machine w/ Newall DRO, Power Feeds

General Info

Stock #: 150260001
Location: Decatur, GA
Brand: Atrump
Model: K3V
Serial #: K3V-221
Approx. Shipping Weight: 3,000 Lbs.
Approx. Shipping Dimensions: 5' L x 6'5" W x 7'10" H
Skidding Fee: Skidding Unavailable

Specifications

Table Size: 11" x 58"
X-Axis Travel: 40-3/4"
Y-Axis Travel: 17"
Z-Axis Travel(Knee): 19-5/8"
Quill Travel: 4-7/8"
Quill Feed: 0.002", 0.004", 0.006"
Spindle Taper: R8

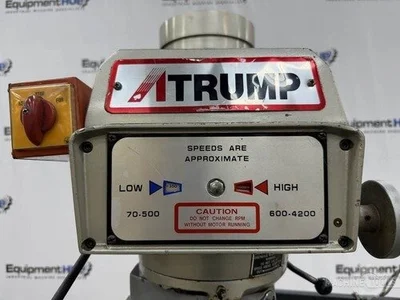

Spindle Speeds: 70 - 4200 RPM

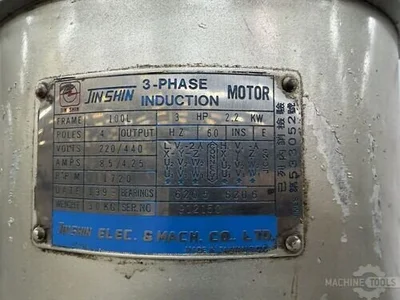

Spindle Motor: 3
Electrical: 220V/3PH

Equipped With

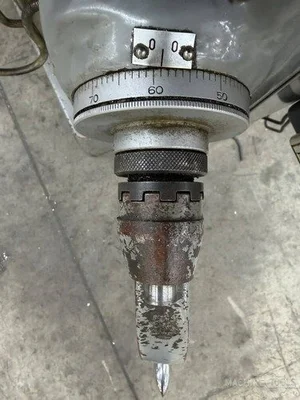

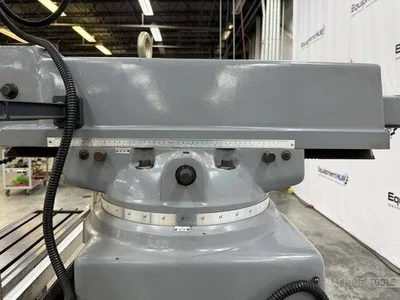

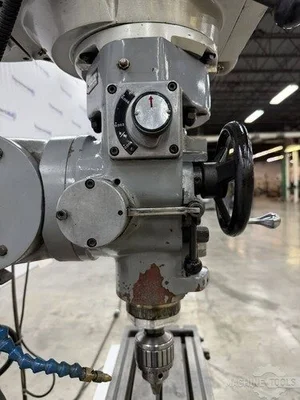

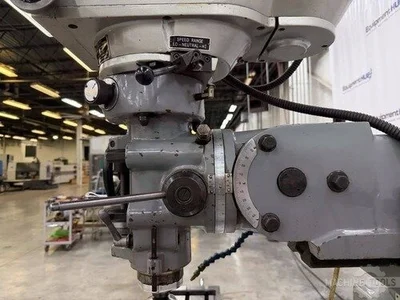

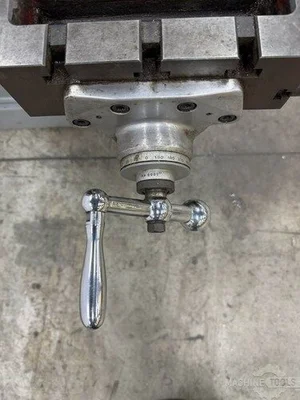

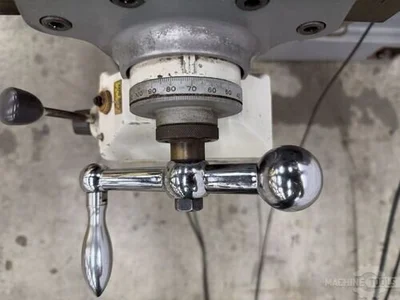

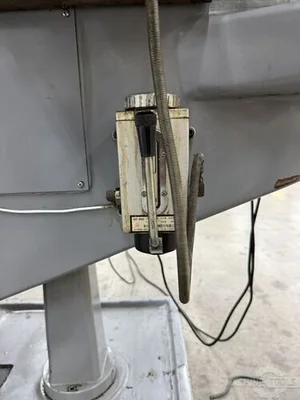

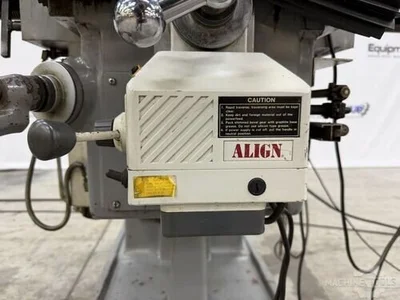

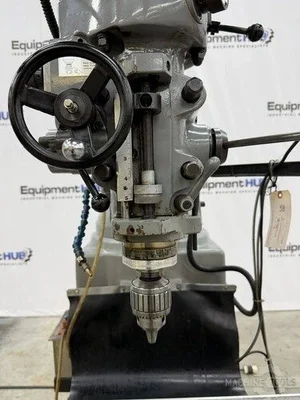

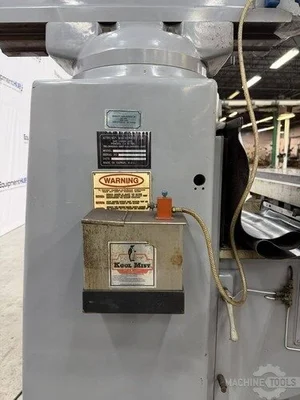

Newall 2-Axis Digital Readout (DRO), Align X-Axis Power Feed, Align Y-Axis Power Feed, Kool Mist Coolant System, One-Shot Lubrication System, Quill Fine Feed with Micrometer Dial (.001" Graduations), Graduated Swivel Head with Degree Scales, Graduated Knee Elevation Dial, Chrome Handwheels & Handles, Way Covers (Front & Rear Bellows), Emergency Stop, Drill Chuck

Additional Info
The Atrump Milling Machine can be demoed upon request, check out the video on the listing to see it in operation.
