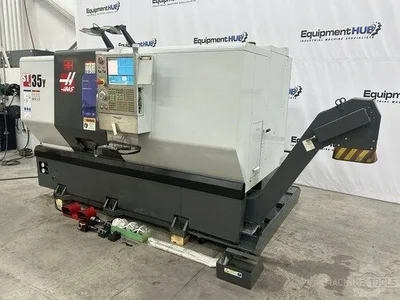

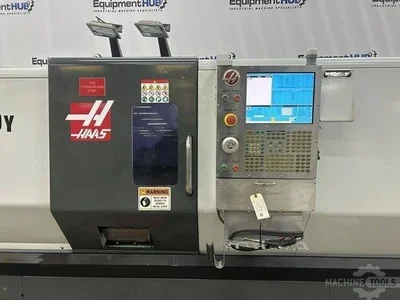

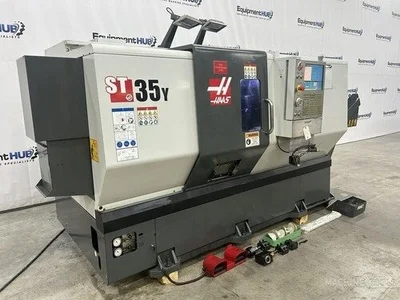

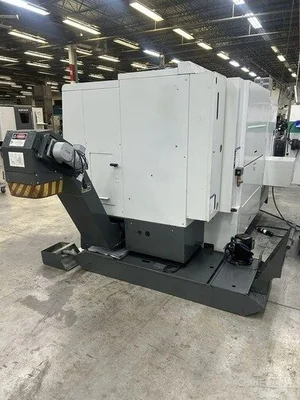

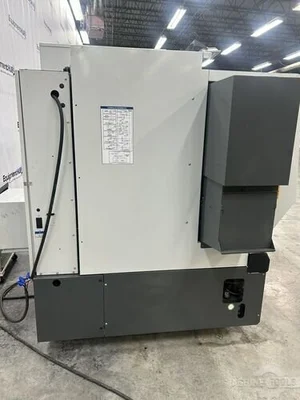

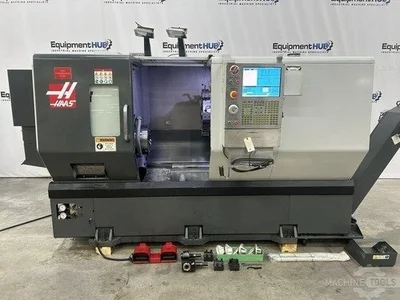

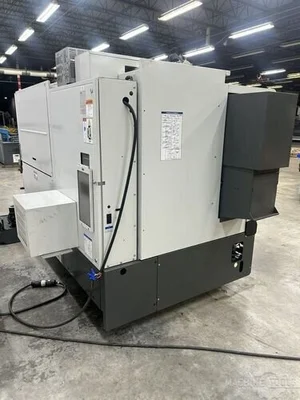

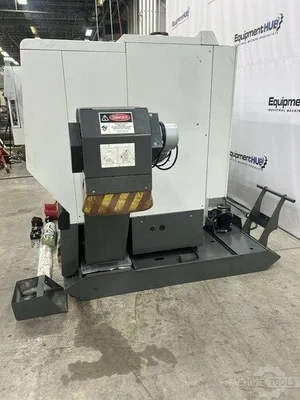

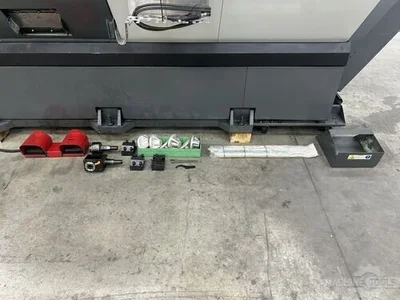

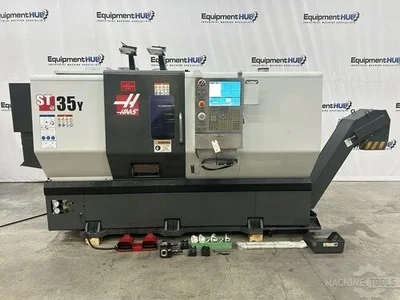

Haas ST-35Y CNC Lathe
| Swing | 31.75" | 806.45 mm |
| Machining Length | 23" | 584.2 mm |
| # Axis | 4 | 4 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 3,200 RPM | 3,200 RPM |
| Turning Dia | 18" | 457.2 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
General Info
Stock #: 210260008
Location: Decatur, GA
Brand: Haas
Model: ST-35Y

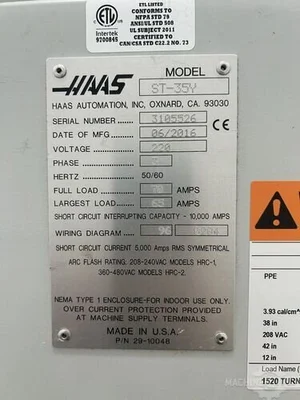

Serial #: 3105526
Year: 2016
Approx. Shipping Weight: 15,000 Lbs.
Specifications
Swing Over Bed: 31.75"
Max Cutting Diameter: 12"
Max Cutting Length: 32.5"
Bar Capacity: 4"

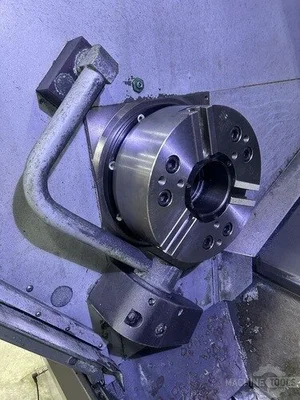

Chuck Size: 12"
Spindle Nose: A2-8
Spindle Bore: 4.62"
Draw Tube Bore: 4.06"
Spindle Speed: 0 - 3,200 RPM
Spindle Torque: 425 ft-lb @ 325 RPM
Peak Horsepower: 40 HP
X-Axis Travel: 9.4"
Y-Axis Travel: 4.0"
Z-Axis Travel: 32.5"

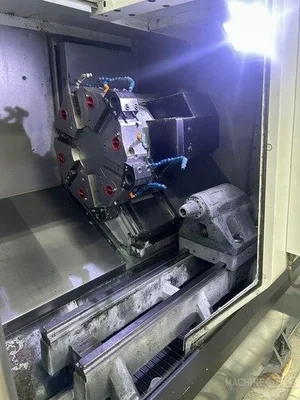

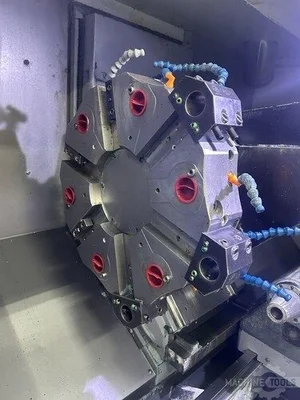

Turret: 12 Station Hybrid BOT / VDI
Coolant Capacity: 55 Gallons
Electrical: 220V/3PH
Equipped With

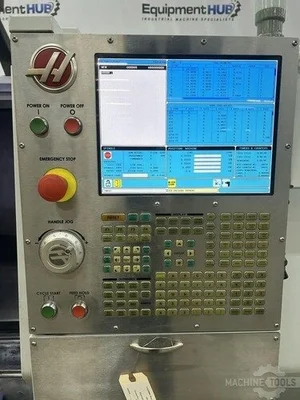

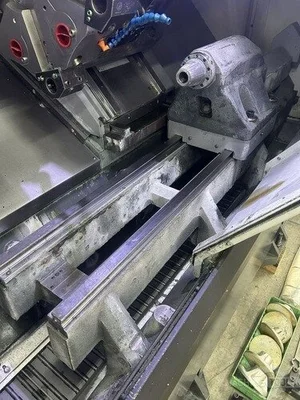

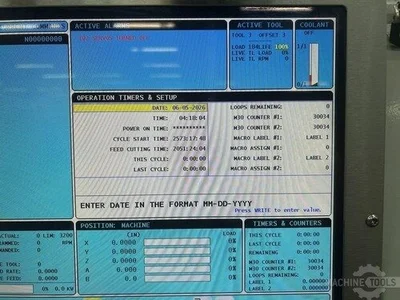

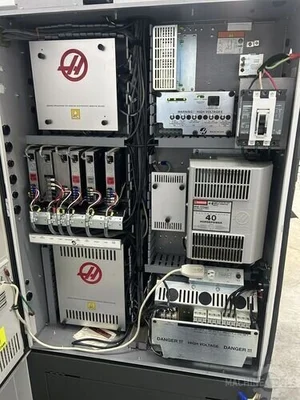

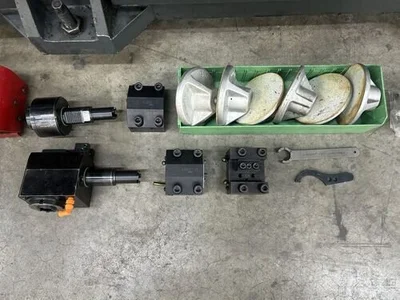

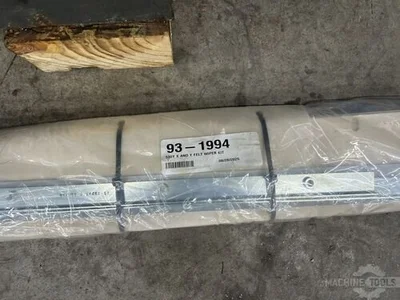

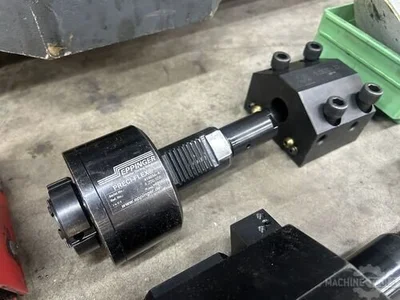

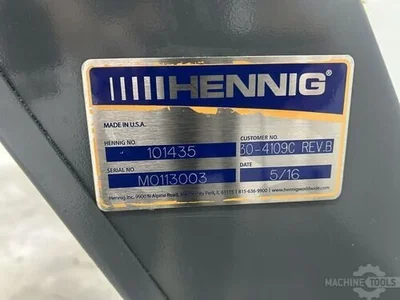

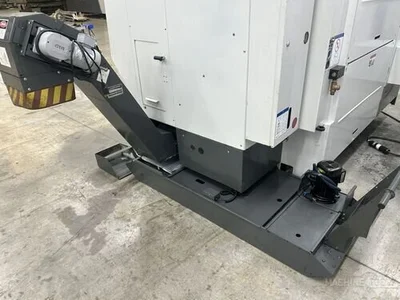

Y-Axis Live Tooling, 12-Station Hybrid BOT / VDI Turret, Hydraulic Programmable Tailstock, Haas Next-Gen Color LCD Widescreen Control, Box Way Construction, Hennig Chip Conveyor, Loc-Line Coolant System, 40 HP Haas Vector Drive, Servo Amplifiers (X, Y, Z, C-Axis, Live Tooling, Spindle, Tool Turret, Tailstock, Bar Feeder, Auto Door), Wiper Kit (New - P/N 93-1994)
Additional Info
The Haas ST-35Y CNC Lathe can be demoed upon request. Check out the video on the listing to see it in operation.
