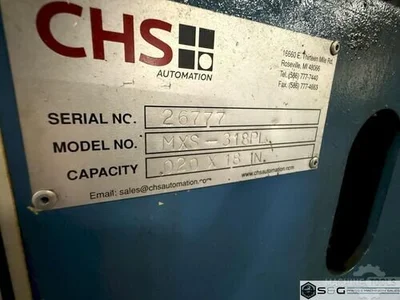

USED 2016 CHS AUTOMATION MXS-318PL

Nidec-CHS Automation Servo Feed Straightener - 18" Maximum Coil Width

Coil Width: 18 inches
Coil Thickness: .125 inches

NIDEC-CHS Servo Roll Feed Straightener Combination Press Feed Specifications:Stock width capacity: 18"Stock thickness capacity: .125" x 18" WideStock thickness capacity: .150" x 12" WideMinimum Stock Thickness....  0.020"Maximum Feed Length........ 999.99 inchesMaterial Feed Accuracy within 0.003 inchesRequired Air Pressure Supply 60-80 PSINIDEC-CHS Servo Roll Feed Straightener Combination Press Feed Equipment and Features:Three inch diameter full width upper and lower servo feed rollsMatte chrome finish on servo feed rollsAir operated upper servo feed roll adjustment / pilot Centralized lubrication pointsCabinet base mounted with heavy duty pass line adjustmentSolenoid controlled pilot release Straightener model no PL-225-5-18Five servo feed straightening rolls x 2.25" diameterUpper servo feed straightening roll adjustmentsCascade loop support rollersAC servo roll feed drive and controls (Consult sales for complete details)End of stock detector for automatic shut-off Job memory storageBatch countingOn the fly micro adjustmentFree standing sloped front servo roll feed control consoleRemote pendant control for jog forward and reverseFused disconnect480 Volt
Boost manufacturing efficiency with this high-performance Nidec-CHS Servo Roll Feed Straightener Combo (Model PL-225-5-18). Designed to optimize pressroom space, this compact combination feed flawlessly handles material widths up to 18" and stock thicknesses up to .125" at full width, or .150" at 12" wide.

Engineered for precision progressive die applications, it features 3" diameter matte chrome servo feed rolls, a 5-roll straightener, and advanced AC servo controls with job memory storage. Equipped with a free-standing console, remote jog pendant, and heavy-duty pass line adjustment, it delivers unparalleled accuracy.

Contact S&G Press today to schedule an inspection under power!
