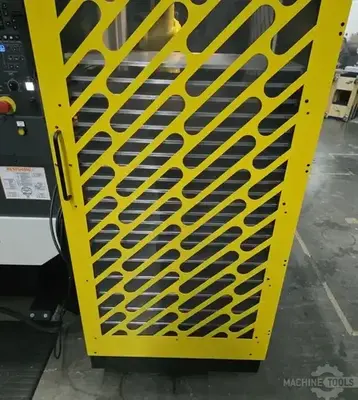

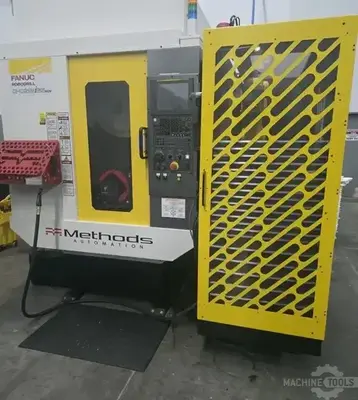

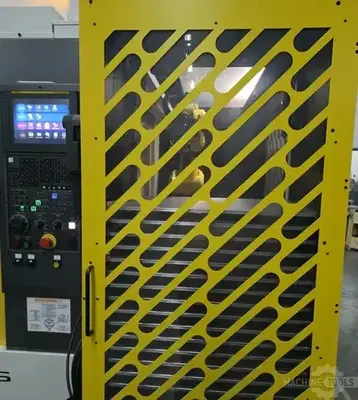

USED 2021 FANUC ROBODRILL A-D21MIB5ADV

CNC Vertical Machining Center

Request a Quote
Add to Cart
X-Axis Travel: 19.69"
Y-Axis Travel: 15.75"
Z-Axis Travel: 15.75"
Spindle Speed: 24,000 RPM
Spindle Taper: BT 30
Tool Magazine Capacity: 21 ATC

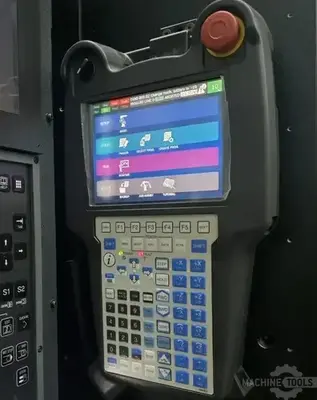

Control: Fanuc 31iB5
Additional Axis: 5th Axis Ready
Coolant: 1,000 PSI High Pressure Coolant
Rapid Traverse All Axes: 2125 IPM
Cutting Feed (Programmable): 1181 IPM
Max Tool Length: 9.84"
Max Tool Diameter: 3.93"
Max Table Load: 880 Lbs
Machine Weight: 4000 Lbs
Base Pallet Plus-E (15): CC Scraper LH+ Tank

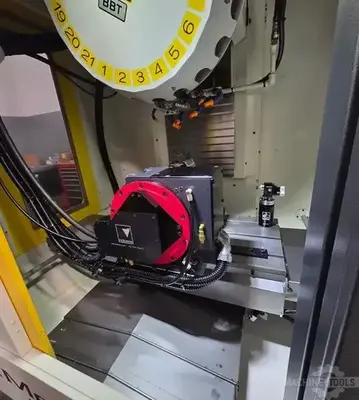

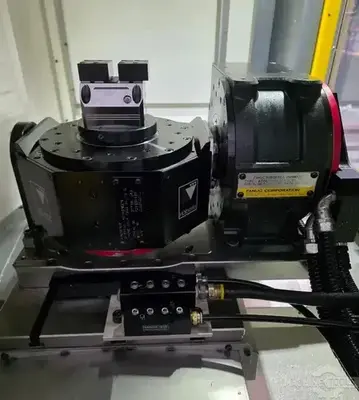

DTTiB Double Torque 5 Axis Table: Fanuc Package B – High Speed 5 Axis DiB5
Plus-E Accessories Kit Prepped: RMP400 + RTS HSS DiB5 Combo Probes
Robot Ready 100mm
