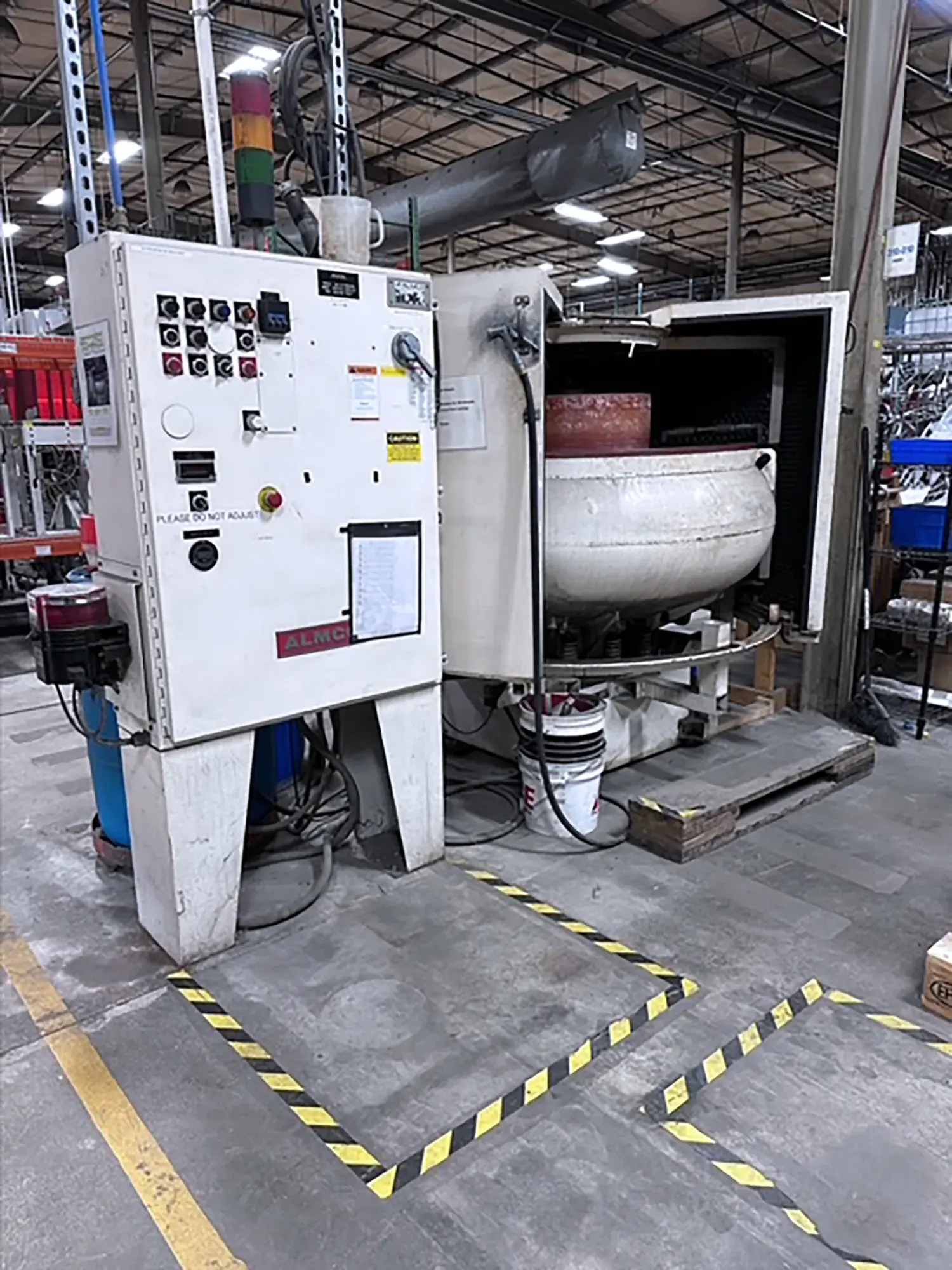

USED Almco OR-23V

Capacity: 23 cu. ft.
Length: 80" (including electrical control box)
Width: 66"
Height: 55"
Diameter: 66"
Blade Cross Section: 19" Dia.
Lining: 1" thick polyurethan (hot pour), 90 durometer

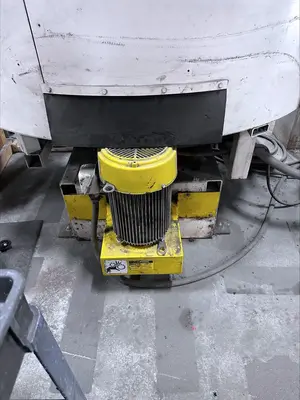

Power Unit:
HP: 10 HP
1800 RPM:
Ball Bearing Motor for 460 volts:
3 Phase:
60 cycle operation powered by an AC Variable Frequency Inverter:
Pullet is connected by a V-belt to a companion sheave on the vibratory mechanism:
Frequency of vibration is variable from 900 to 1400 cycles per minute:
All moving drive components are well guarded for operator protection:
**GENERAL DESCRIPTION **:
Energy Efficient "OR" Series Machine is composed of the following basic components::
1. The Supporting Base and Framework:
2. The Drive Unit:

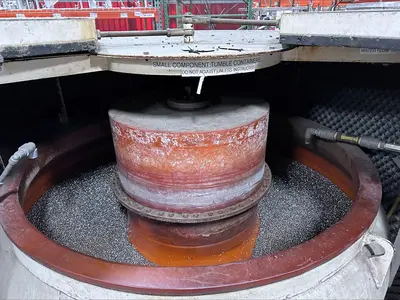

3. Almco's Natural Contour Molded Urethane Lined Tub:
4. The Vertical Shaft Vibrator:

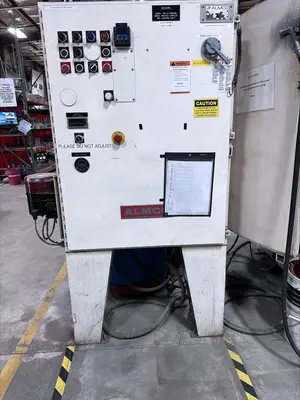

5. The Electrical Control Enclosure:

INCLUDED FEATURES
Flowmeters
Elapsed Time Recorder

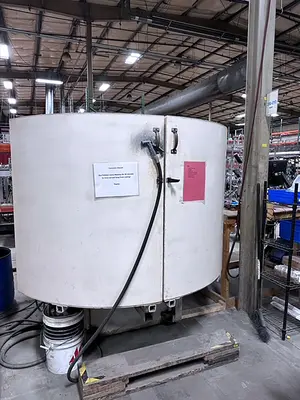

OR-23V Sound Hood
Automatic Lubrication System
Tachometer
Compartmentalized Divider Assembly
