USED 2018 MCCLOSKEY 628RE

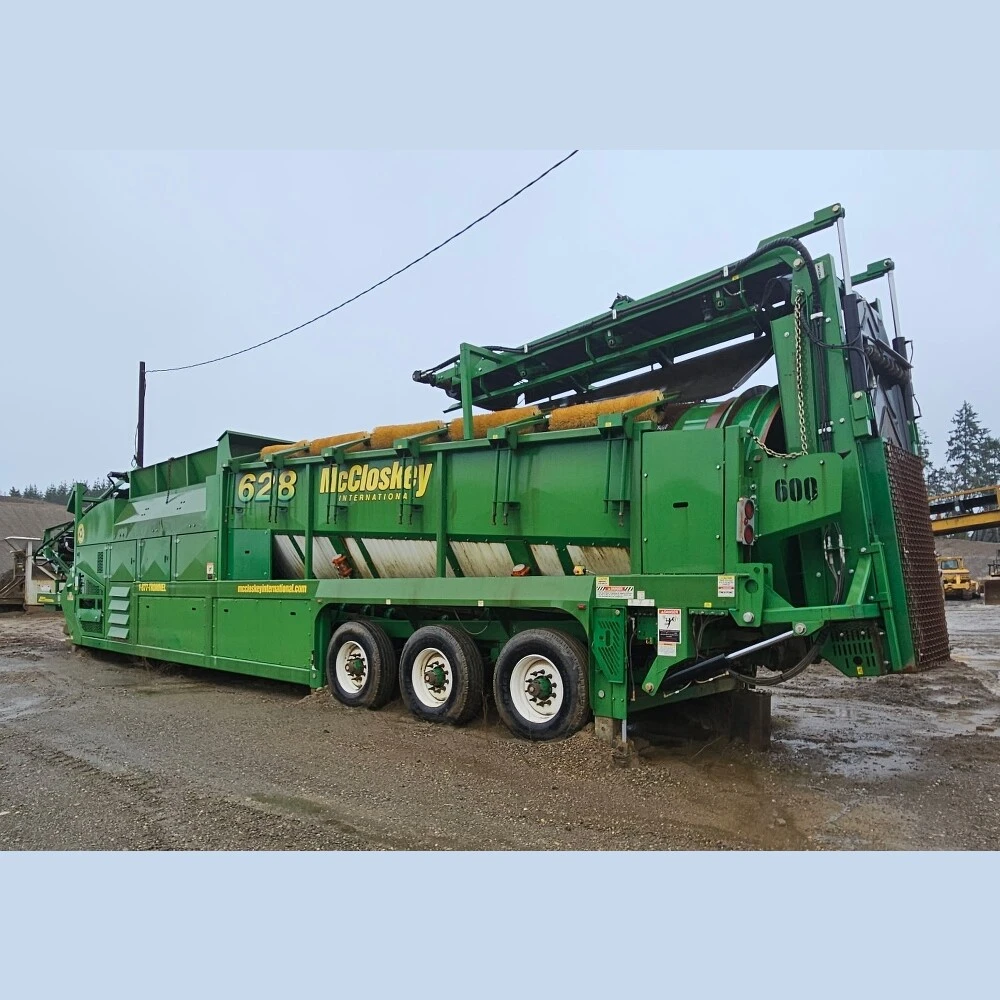

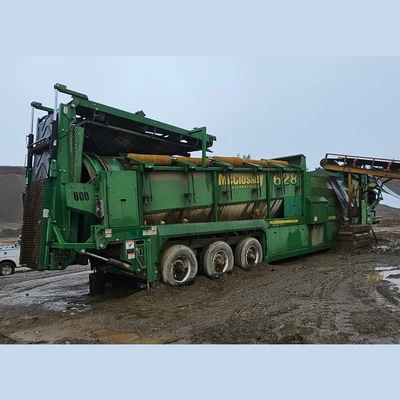

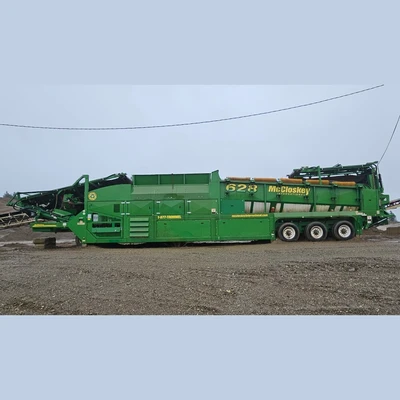

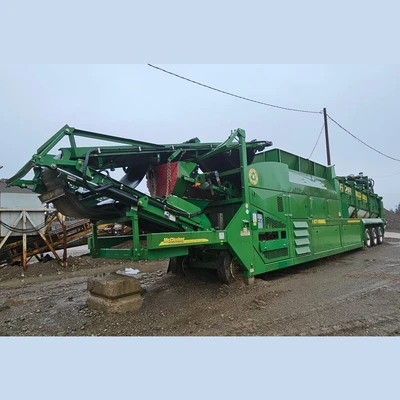

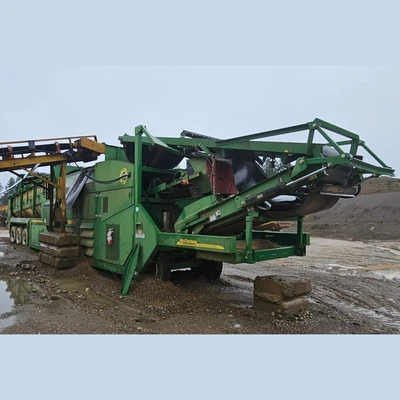

McCloskey 628RE Portable Rotary Screen
Make: McCloskey
Model: 628RE
Type: Portable Rotary Screen
Style: Wheeled Trommel
Year: 2018
Condition: Used Condition
Made in Canada
General Model Specifications: See Attached Spec Sheet For All Specifications
Production:
Topsoil & Sticky Material: 200+ TPH
Sand & Gravel: 300+ TPH
Trommel Angle: 5°
Drum: 6ft x 28ft (1.83m x 8.53m)
Screening Area: 370ft² (34.5m²)
Hopper Capacity: 6.5yd³ (5.0m³)
Radial Conveyor Stockpile Height: 16ft 10in (5.13m)
Oversize Conveyor Stockpile Height: 11ft 5.5in (3.49m)
Note: Unit has been Converted to Run off 480 Volt, 3-Phase Line Power or 200kW Generator
400 Amp Service Panel

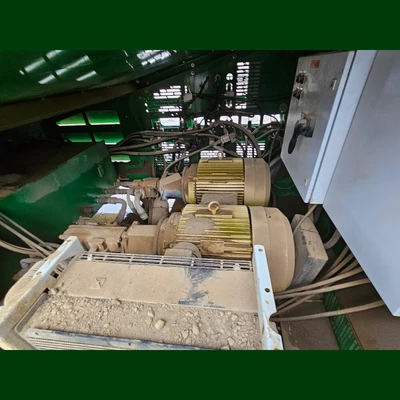

(2) 60HP Electric Motor Coupled to Hydraulic Pumps
(1) 5HP Electric Motor
On-Board Engine Removed
Working Dimensions:
Working Height: 16ft 10in (5.13m)
Working Width: 49ft 7in (15.12m)
Working Length: 100ft 1in (30.50m)
 Transport Dimensions:
Length: 65ft 3in (19.88m)
Width: 8ft 6in (2.59m)
Height: 13.5ft (4.12m)
Loading Height: 10ft 7in (3.22m)
Weight: 59,750 lbs. (27,100kg)
Production:
Topsoil & Sticky Material: 200+ TPH
Sand & Gravel: 300+ TPH
Topsoil & Sticky Material: 200+ TPH
Sand & Gravel: 300+ TPH
Trommel Angle: 5°
Drum: 6ft x 28ft (1.83m x 8.53m)
Screening Area: 370ft² (34.5m²)
Hopper Capacity: 6.5yd³ (5.0m³)
Radial Conveyor Stockpile Height: 16ft 10in (5.13m)
Oversize Conveyor Stockpile Height: 11ft 5.5in (3.49m)
Note: Unit has been Converted to Run off 480 Volt, 3-Phase Line Power or 200kW Generator
400 Amp Service Panel
(2) 60HP Electric Motor Coupled to Hydraulic Pumps
(1) 5HP Electric Motor
On-Board Engine Removed
400 Amp Service Panel
(2) 60HP Electric Motor Coupled to Hydraulic Pumps
(1) 5HP Electric Motor
On-Board Engine Removed
Working Dimensions:
Working Height: 16ft 10in (5.13m)
Working Width: 49ft 7in (15.12m)
Working Length: 100ft 1in (30.50m)
Working Height: 16ft 10in (5.13m)
Working Width: 49ft 7in (15.12m)
Working Length: 100ft 1in (30.50m)
 Transport Dimensions:
Length: 65ft 3in (19.88m)
Width: 8ft 6in (2.59m)
Height: 13.5ft (4.12m)
Loading Height: 10ft 7in (3.22m)
Weight: 59,750 lbs. (27,100kg)
Length: 65ft 3in (19.88m)
Width: 8ft 6in (2.59m)
Height: 13.5ft (4.12m)
Loading Height: 10ft 7in (3.22m)
Weight: 59,750 lbs. (27,100kg)
Location: Western USA
