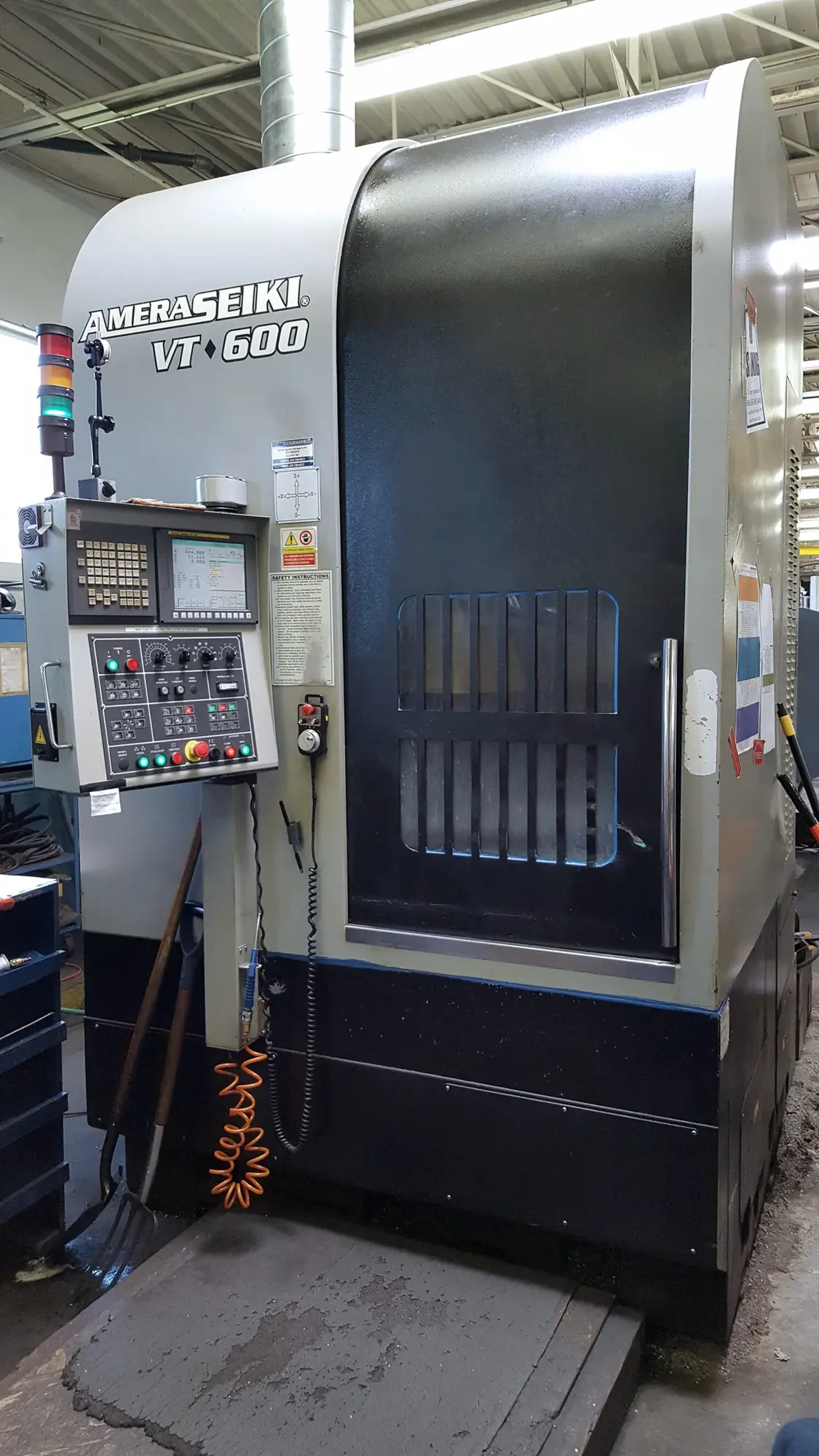

USED 2008 Amera Seiki VT600M
Overview
Description
The Amera Seiki VT600M Vertical Turret Lathe (2008) with Fanuc Oi-TC control is a heavy-duty CNC machine designed for high-precision turning, boring, and facing of large, complex parts. Commonly used in aerospace, energy, and automotive sectors, it efficiently machines components such as engine blocks, turbine blades, gears, and casings. Ideal for high-volume, high-precision manufacturing in demanding industries.
Specifications
Chuck Diameter: 24”
Number of Tool Stations: 12
Spindle Motor: 50HP
X-Axis Rapid Traverse: 787.4”/ Min
Z-Axis Travel: 25.59”
X-Axis Travel: -1.96”, +17.72”
Spindle Speed: 20~2000 RPM
Maximum Turning Diameter: 25.59”
Maximum Turning Height: 23.62”
Spindle Nose: A2-11
Tool Size: 1.25”
Z-Axis Rapid Traverse: 787.4” / Min
Machine Length x Width: 137” x 70”
Machine height: 138.5”
Machine Weight: 19,841 lbs
Power Requirements: 48 KVA
Table Diameter: 23.63"
Maximum Spindle Torque: (30min) 3,100 ft.lbs.
Maximum Swing : 29.50”
Equipped With

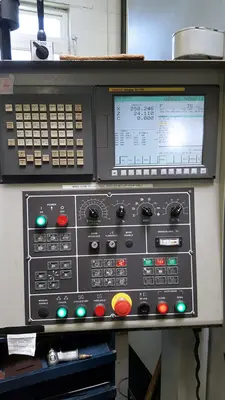

Fanuc OiTC Control
3-Jaw Power Chuck

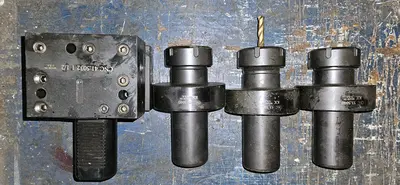

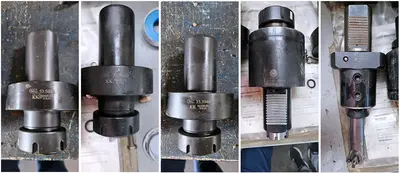

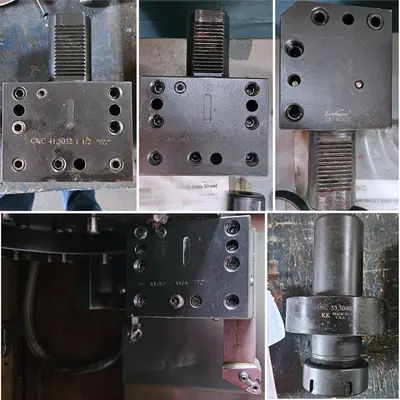

(4) Turning Tool Holders & (3) Live Tool Holders
Coolant System
Hydraulic Unit
Chip Conveyor
Renishaw RMP60 Probe
