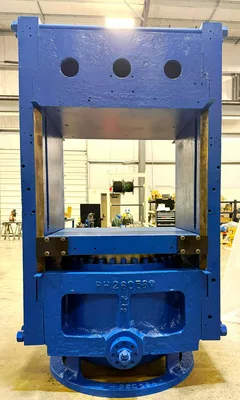

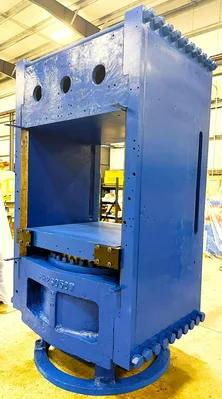

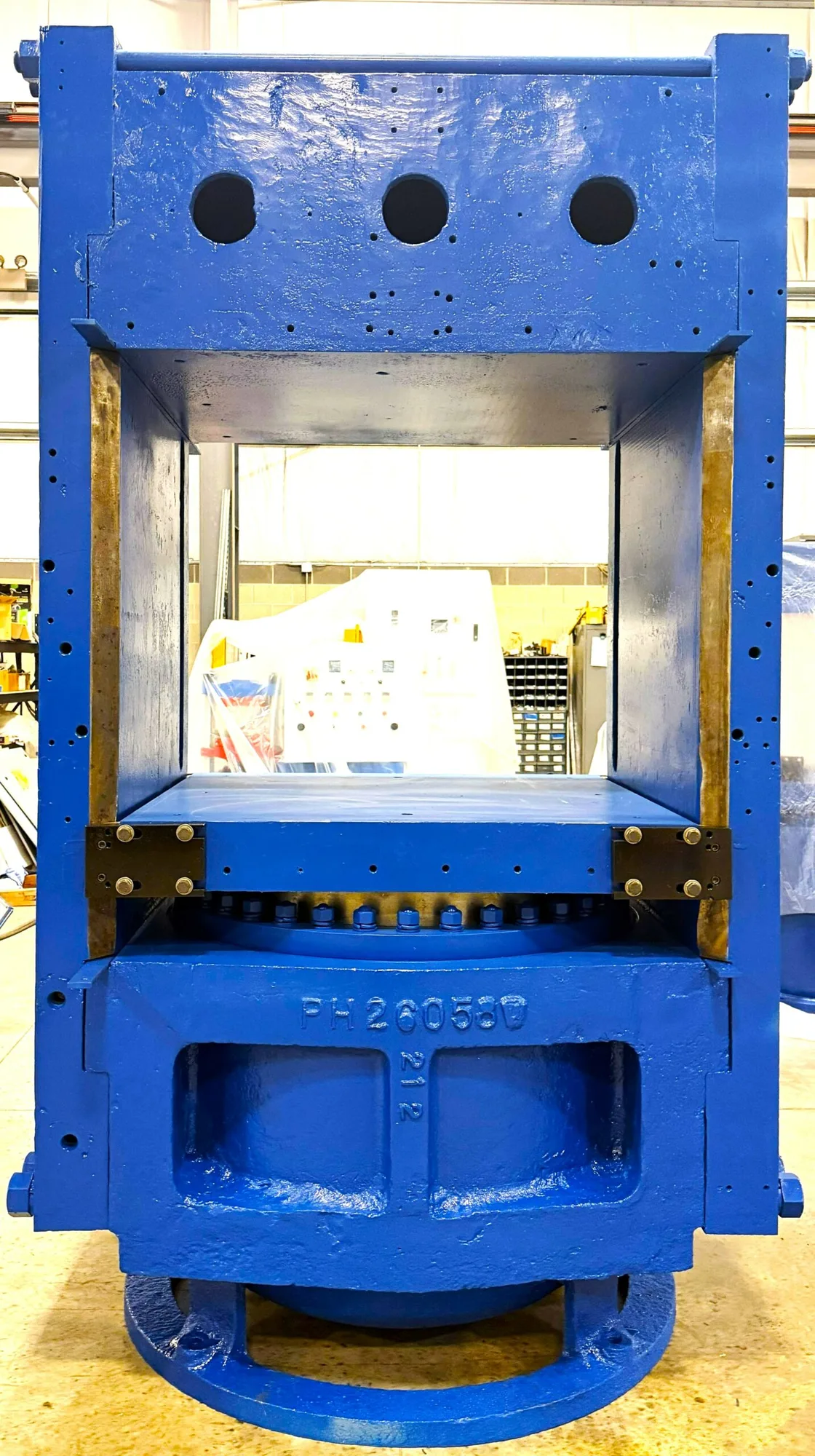

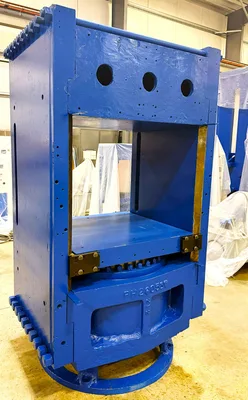

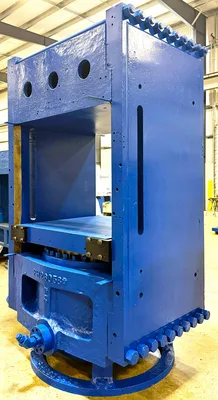

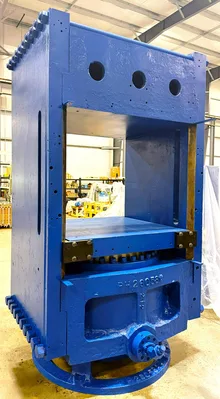

REBUILT 42″x42″/1250T French Press, Item # 1966
Overview
Specifications
1250 Ton @ 2,450 PSI
Very heavy-duty design & construction
Slab sides
6” thick sides with 2 ½” side windows
36″ dia. ram
18″-20” max. stroke
36 1/2 ″ daylight without platens
Moving bolster size: 45” l-r x 42” f-b
NEW/REBUILT bolster guides on all four beveled corners
45 3/4″ working height (from the ground to top of moving bolster)
46 1/4″ distance l-r between sides.
Press has been completely disassembled and sandblasted.

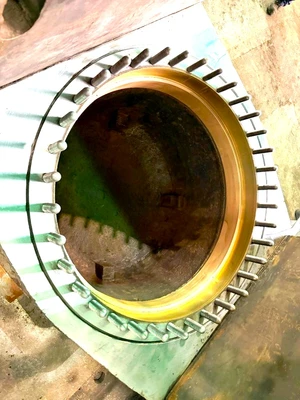

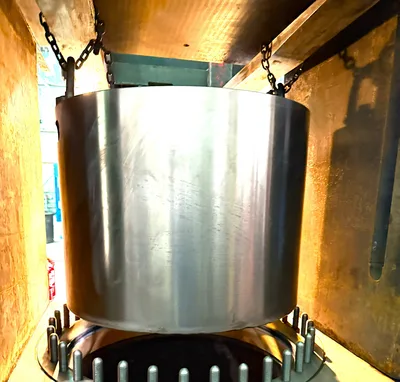

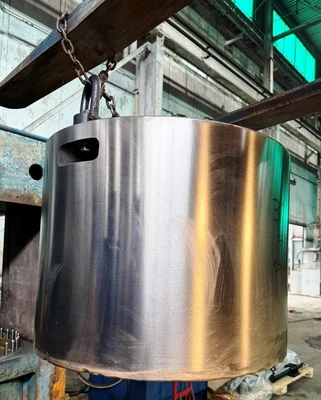

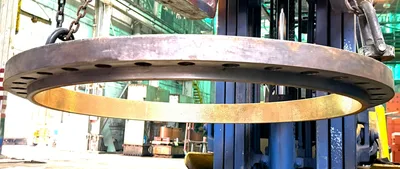

Ram, ram housing, and gland ring REBUILT TO NEW CLEARANCES.
Primed and painted with anticorrosive BLUE paint.
NEW u-cup seal will be installed.
Overall dimensions: 60″ l-r x 50″ f-b x 107″ H (bare press)
Offered rebuilt and guaranteed.
OPTIONAL # 1: NEW 200-gallon hydraulic unit. IN STOCK!
OPTIONAL # 2: NEW electrical/control Panel with Allen Bradley PLC and color HMI (operator interface) programmed for complete cycling: closing, pre-heating (dwelling), degassing (bumping), curing (clamping), opening, etc. IN STOCK!
OPTIONAL # 3: NEW electric, steam or oil heating platens and NEW platen insulation. IN STOCK!
Complete system is offered fully rebuilt and guaranteed.
