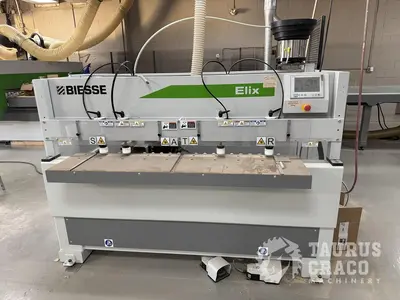

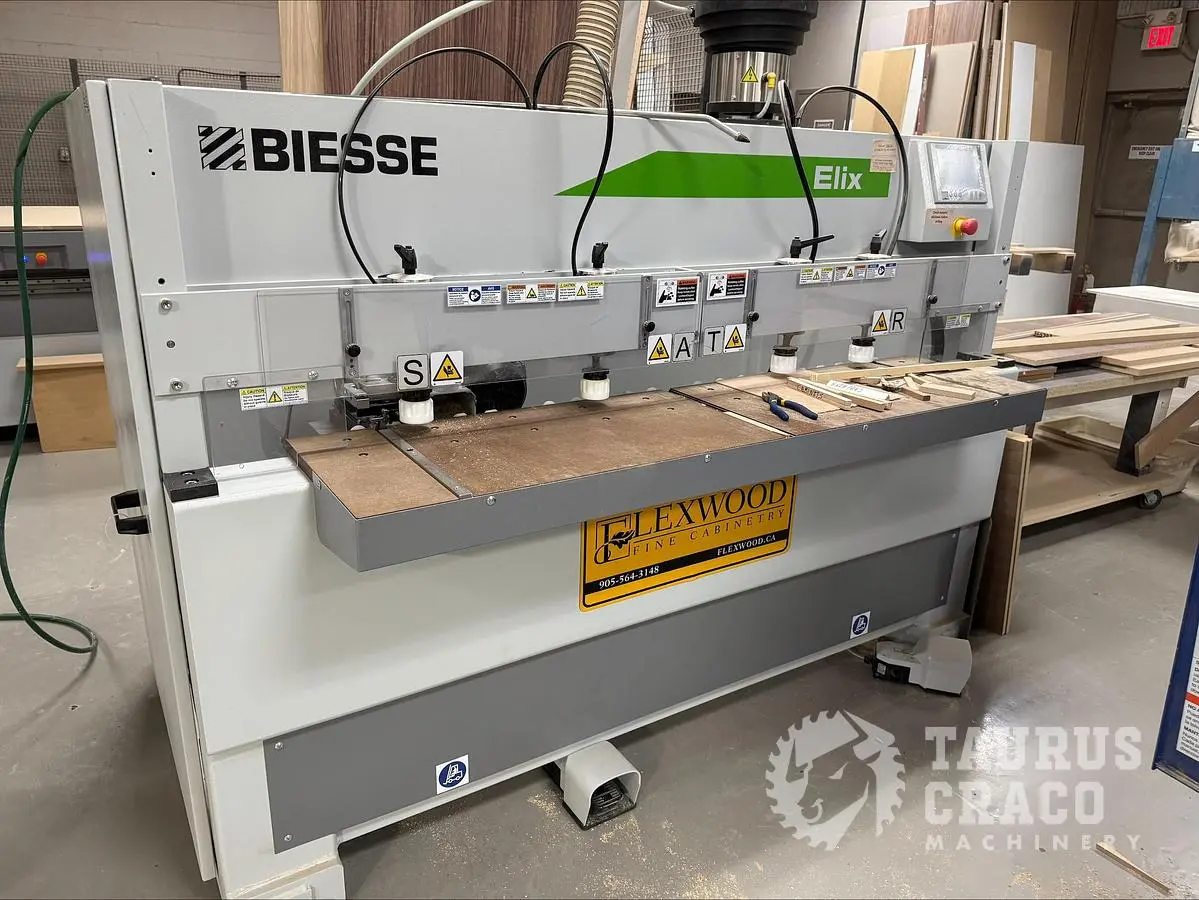

USED 2020 BIESSE ELIX B - DRILL, GLUE & DOWEL INSERTER

Manufacturer: Biesse
Model: ELIX B
Year of Manufacture: 2020
Condition: Used – Very Good Condition
Machine Type: CNC Bore / Glue / Dowel Insertion Machine
The Biesse ELIX B is a compact, high-precision CNC machine designed for point-to-point drilling, glue injection, and dowel insertion in panel processing applications. Built for flexibility and ease of use, this machine is ideal for cabinet shops, furniture manufacturing, and small-part production environments.

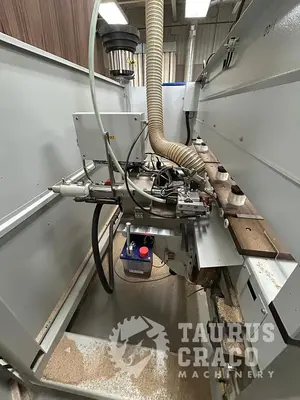

Equipped with a brushless-driven X-axis, precision boring unit, and integrated glue/dowel insertion system, the ELIX B allows operators to reduce manual labour while increasing accuracy and repeatability.

This 2020 unit represents a cost-effective solution for automated joinery production.
CNC-controlled drilling, glue, and dowel insertion
Compact point-to-point machining design
Brushless X-axis motion with ball screw drive
Integrated glue injection system (8L tank)
High-speed drilling unit (6,000 RPM)
Single dowel insertion unit (Ø8 mm standard)
Simple and intuitive CNC interface
Panel Size:
Max length: up to 1300 mm
Thickness: 10 – 40 mm
Axis Movement:
X-axis stroke: 1300 mm
Traverse speed: 50 m/min
Drilling Capability:
Spindle speed: 6,000 RPM
Max hole depth: 30 mm
Max bit diameter: 12 mm

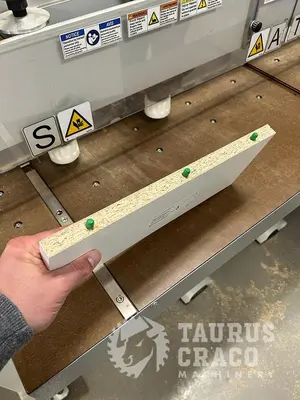

1 dowel insertion unit (Ø8 × 30 mm standard)
Glue tank capacity: 8 litres
Electronic glue dosing system

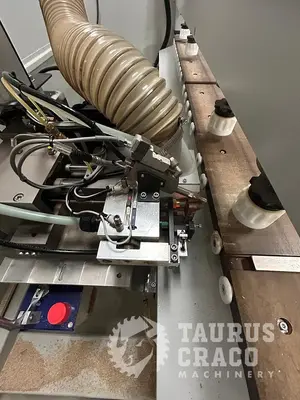

Pneumatic dowel insertion system
Voltage: 220 V
Phase: 3 Phase
Frequency: 60 Hz
Amperage: 13A
Air Requirement: 7 bar
Biesse industrial CNC

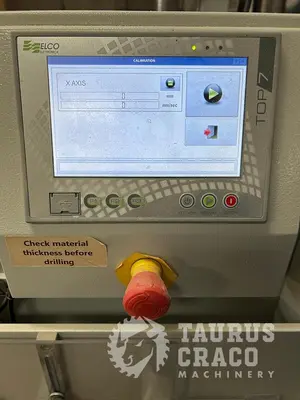

Touchscreen interface
Parametric programming
Program list management
Ethernet / USB connectivity
Very good operating condition
Fully functional and production-ready
Typical wear for machine age
Clean shop environment
The Biesse ELIX B is a highly efficient entry-to-mid level CNC dowel inserter, ideal for shops looking to automate cabinet joinery without the footprint or cost of a full CNC machining centre. It offers strong productivity gains over manual drilling and insertion systems.
