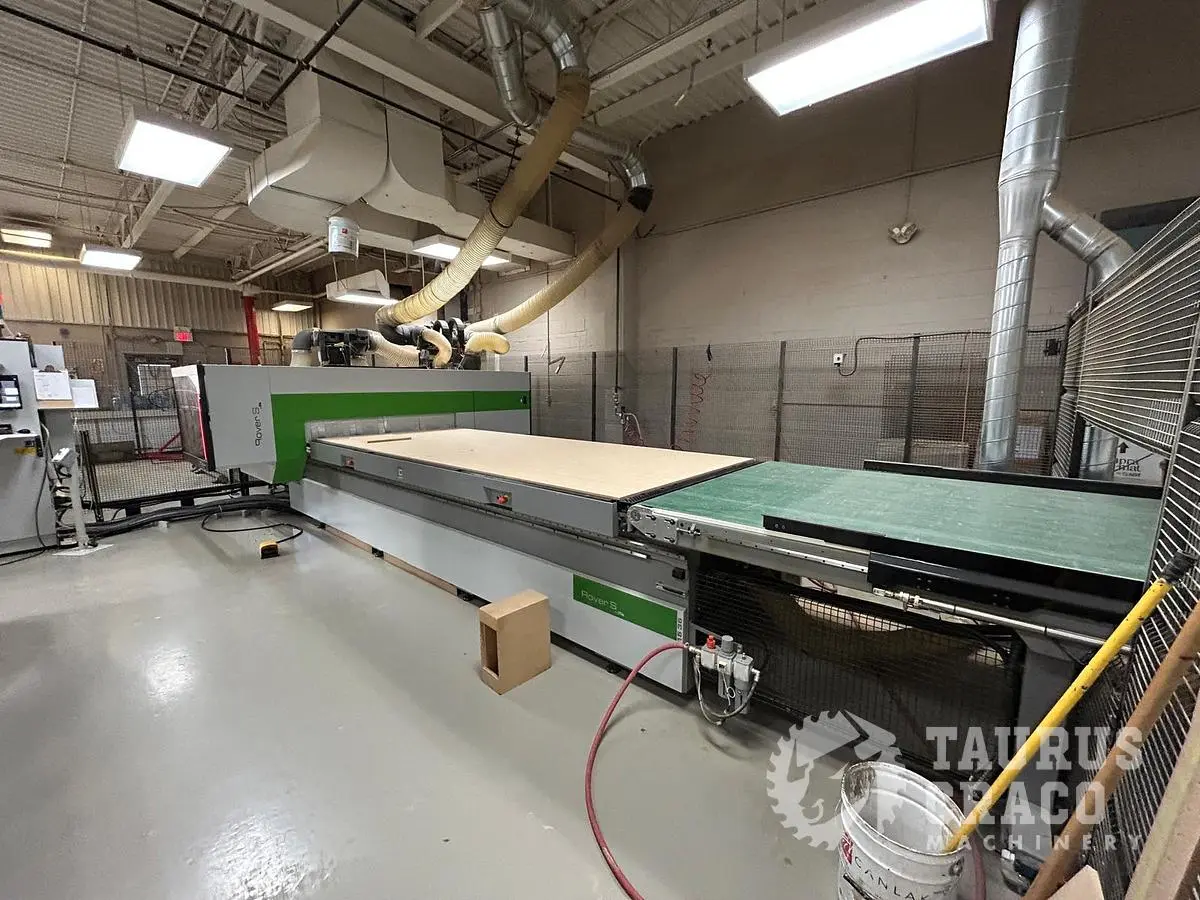

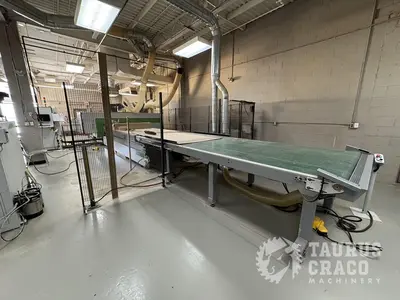

USED 2020 BIESSE ROVER S FT 1536 CNC 5' X 12'

Manufacturer: Biesse
Model: Rover S FT 1536
Year of Manufacture: 2020
Condition: Used – Very Good Condition
Machine Type: CNC Router / Flat Table Nesting CNC / Machining Centre
The Biesse Rover S FT 1536 is a high-production CNC nesting machining centre engineered for precision routing, drilling, and panel processing in industrial woodworking environments. Built in Italy and designed for continuous production, this model features a rigid electro‑welded steel gantry frame with high‑precision motion systems for exceptional accuracy and durability.

The machine is equipped with brushless axis drives, rack-and-pinion transmission, and ball screw Z-axis control, ensuring high-speed machining, repeatability, and minimal maintenance requirements.

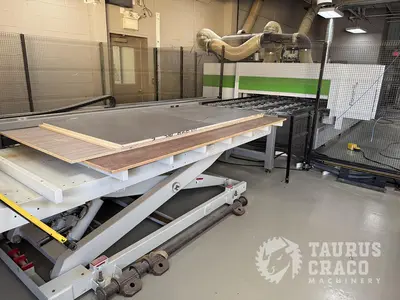

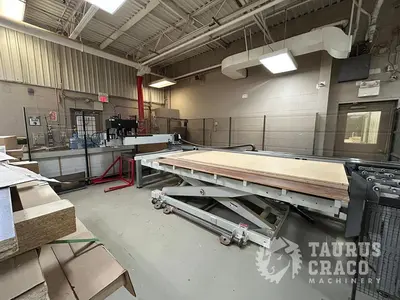

This 2020 unit is configured as a full nesting platform with vacuum table and automation pre‑arrangements, making it ideal for cabinet production, panel processing, and high-throughput manufacturing environments.

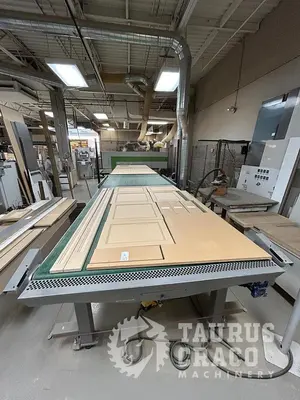

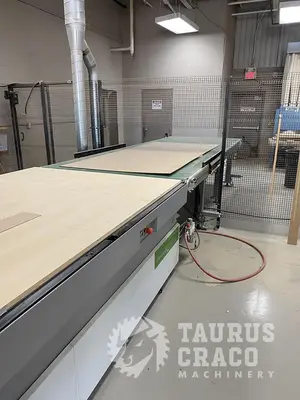

5' x 12' flat table nesting configuration

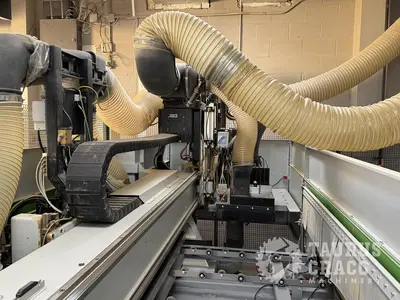

Heavy-duty gantry structure for vibration-free machining
Brushless servo motors with digital drives
Rack and pinion drives on X/Y axes for high-speed operation
Ball screw Z-axis with preloaded nut for precision positioning

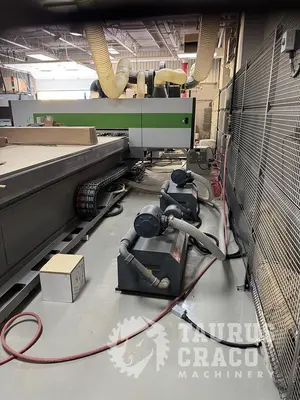

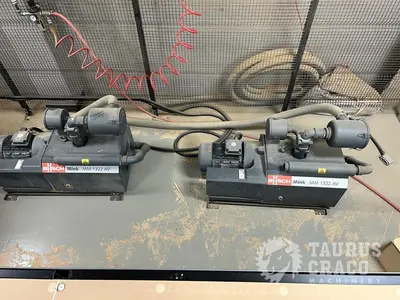

Multi-zone vacuum table for efficient panel hold-down
BH660 PC-based CNC control system
Full CAD/CAM integration with bSolid software suite
Industry 4.0 ready (OPC-UA + remote connectivity)
Work Table Size:
3763 mm (X) × 1558 mm (Y) (~5’ x 12’)
Panel Capacity:
Max Y panel width: approx. 1555 mm
Z-Axis Stroke:
320 mm
Clearance / Passage:
Standard passage: 170 mm
With hood: 105 mm
Axis Speeds:
X / Y: up to 60 m/min
Z: up to 25 m/min

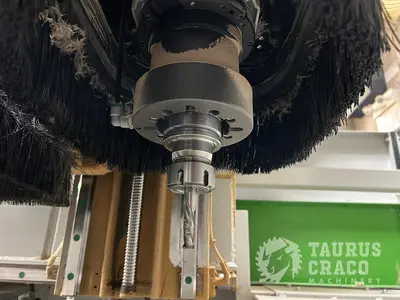

Electrospindle:
19.2 kW (25.7 HP) HSK F63 spindle
Speed range: 1,000 – 24,000 RPM
Liquid cooled system
Ceramic bearings
Automatic dust hood positioning

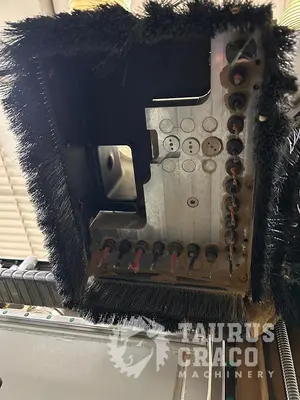

Boring Head (BH18):
18 vertical spindles
32 mm spacing system
Speed: up to 6,000 RPM

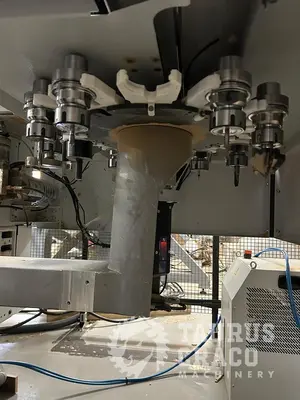

12-position tool changer (X-axis mounted revolver)
Max tool diameter: up to 160 mm
Max tool weight: 7.5 kg
Supports:
Routing
Drilling
Grooving
Nested-based panel processing
Voltage: 380–415 V
Frequency: 60 Hz
Phase: 3 Phase
Control Voltage: 24V DC stabilized system
Transformer: Integrated auxiliary transformer
Optional Compatibility: Up to 575–600V via autotransformer

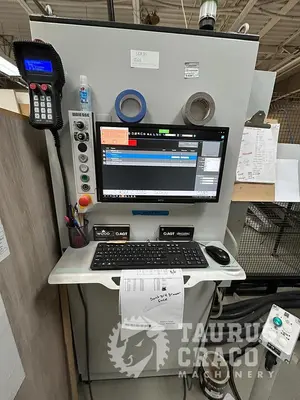

Biesse BH660 CNC control system
bSolid CAD/CAM software platform
bNest nesting optimization module
Real-time machining simulation
Tool life management and diagnostics
Remote service (teleservice + IoT integration)
Length: approx. 7,318 mm (288”)
Width: approx. 5,034 mm (198”)
Height: approx. 2,445 mm (96”)
Very good mechanical and cosmetic condition
Fully operational and production-ready
Maintained in industrial environment
Clean electrical and CNC system
Standard wear consistent with usage
The Biesse Rover S FT 1536 is a production-level nesting CNC platform offering high throughput, automation readiness, and precision machining. With its robust gantry construction and integrated CAD/CAM workflow, it is ideal for cabinet manufacturers, millwork shops, and high-volume panel processors.
