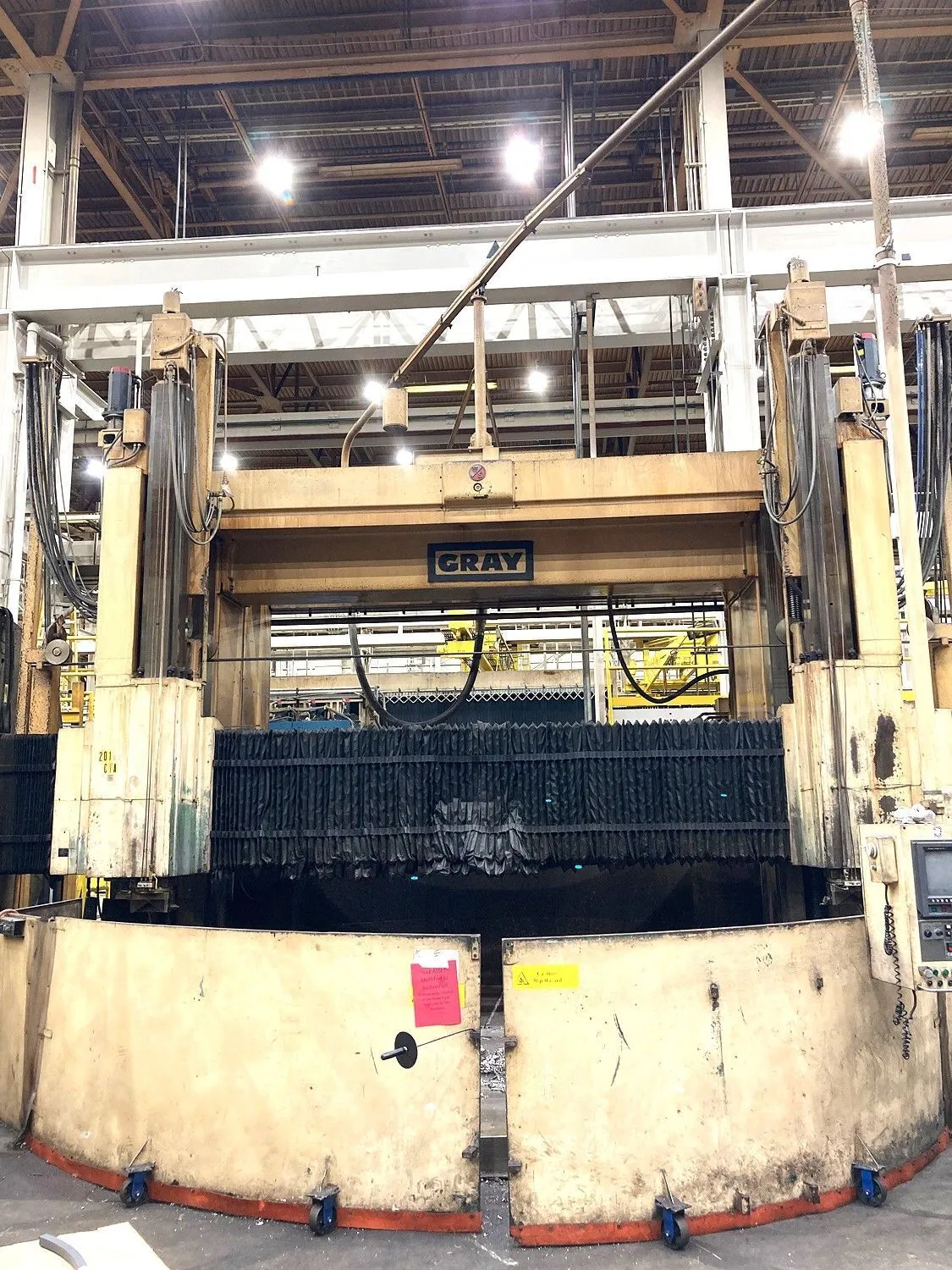

USED WARNER & SWASEY GRAY 300 Series
Overview
Description
Gray W&S Model 300 CNC Fanuc 15-TT Retrofitted Control
Twin Ram Vertical Turning & Boring Center.
Main Specifications:
Table Diameter:....... 192"
Max. Swing:............. 204"
Set of 14" Face Plate Jaws
for Use with Plain Table.
RPM Tachometer Indicator
Table Load Meter Calibrated in HP.
Flood Coolant
Mist Coolant
Chip Conveyor
Chip Guards
Rail Head Ram Type
Ram Type Power Index Block
Max Height Under Rail Head 120"
Max Heigth Under Rail Head Saddle 24"
Max Height Under the Ram or Tool Block 108"
Ram Travel to Table Center 110"
Ram Travel Past Table Center 1"
Smallest Hole Ram will Enter 15-1/2"
Number of Tool Positions in Ram Tool Block 4
Size of Slots in Ram Tool Block 1-1/2"
for Right Side or Left Side
Machine Available in Stock and Inspections!
Sincerely
Mark Murphy
Specifications
| Table Dia | 192" | 4,876.8 mm |
|---|---|---|
| Swing | 204" | 5,181.6 mm |
| Work Ht-U/R | 120" | 3,048 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 200 RPM | 200 RPM |
| Control | CNC (Fanuc 15-TT) | CNC (Fanuc 15-TT) |
| Dimensions | Height 30 Ft. 8" | Height 30 Ft. 8" |
