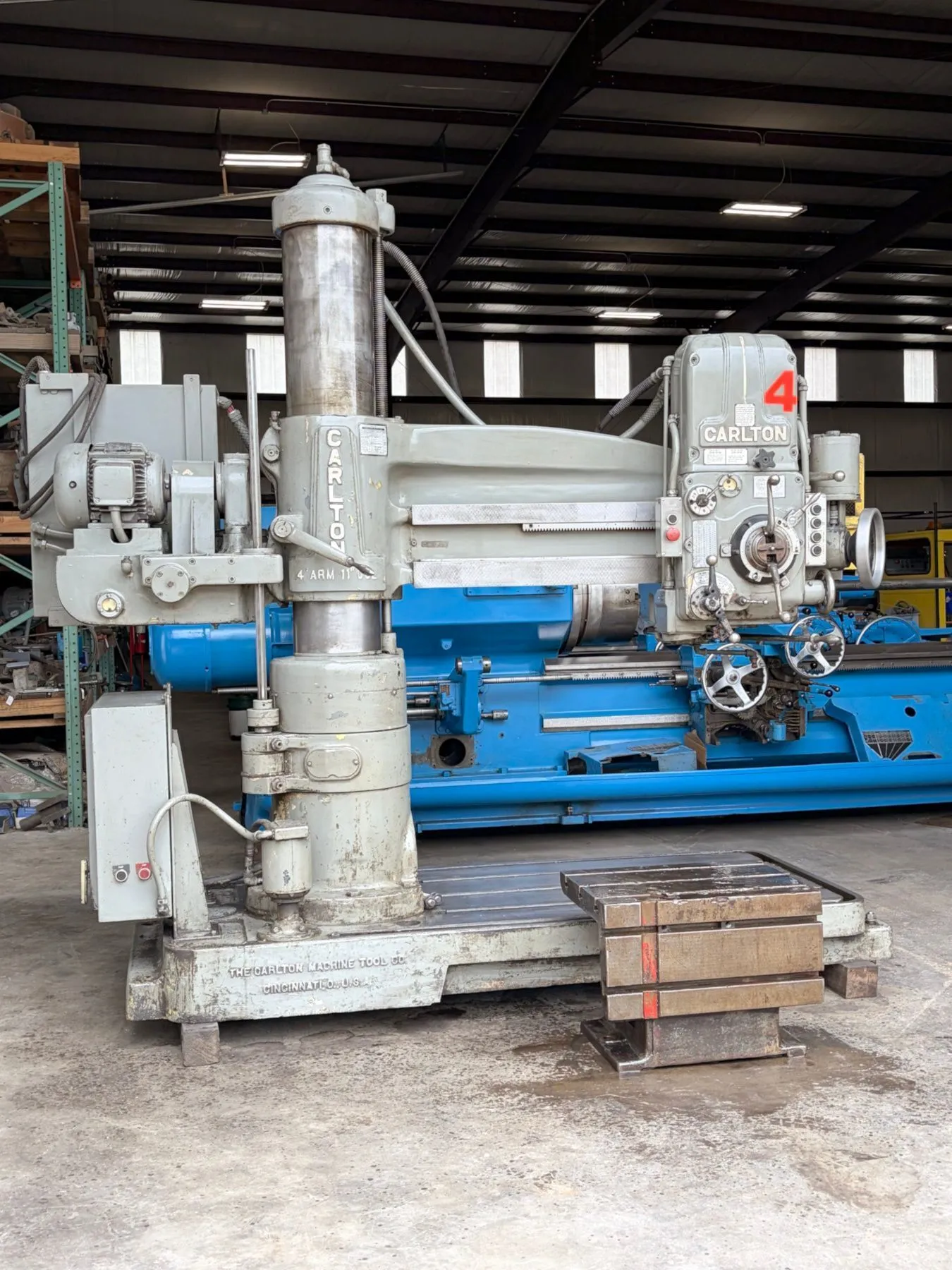

Carlton 4' X 11" Radial Arm Drill
| Arm Length | 4' | 1.2 m |
| Column Dia. | 11" | 279.4 mm |
| RPM | 2,000 RPM | 2,000 RPM |
| Power | 5 hp | 3.7 kW |
| Dimensions | R-L 108" X F-B 4' X Height 8'4" | R-L 108" X F-B 4' X Height 8'4" |
| Weight | 8,000 Lbs. | 8,000 Lbs. |
Arm Size..........................................4'
Column Diameter...................................11"
Column To Spindle Center..........................48"
Spindle Speeds....................................60 To 2,000 Rpm's
Spindle Taper.....................................# 4 Morse
Spindle Travel....................................12"
Spindle Diameter..................................2-1/2"
Spindle Min. / Max Dimeter Drill..................1/8 To 2-1/2"
Spindle Feeds.....................................0.006 To .250
Main Motor........................................5 Hp. 220 / 440 / 3
Floor Space Length................................R-L 108" X F-B 4'
Machine Height....................................8'4"
Weight............................................8,000 Lbs.
Manual Clamp To Head..............................Yes
Power Clamp On Arm................................Yes
Power Elevation...................................Yes
Rapid Traverse....................................Yes
Box Table.........................................Yes
Automatic Tap Depth Stop..........................Yes
Note: Machine will be cleaned, painted and cycled.
Oil will Be change and head flushed. Slight glasses
replaced.
