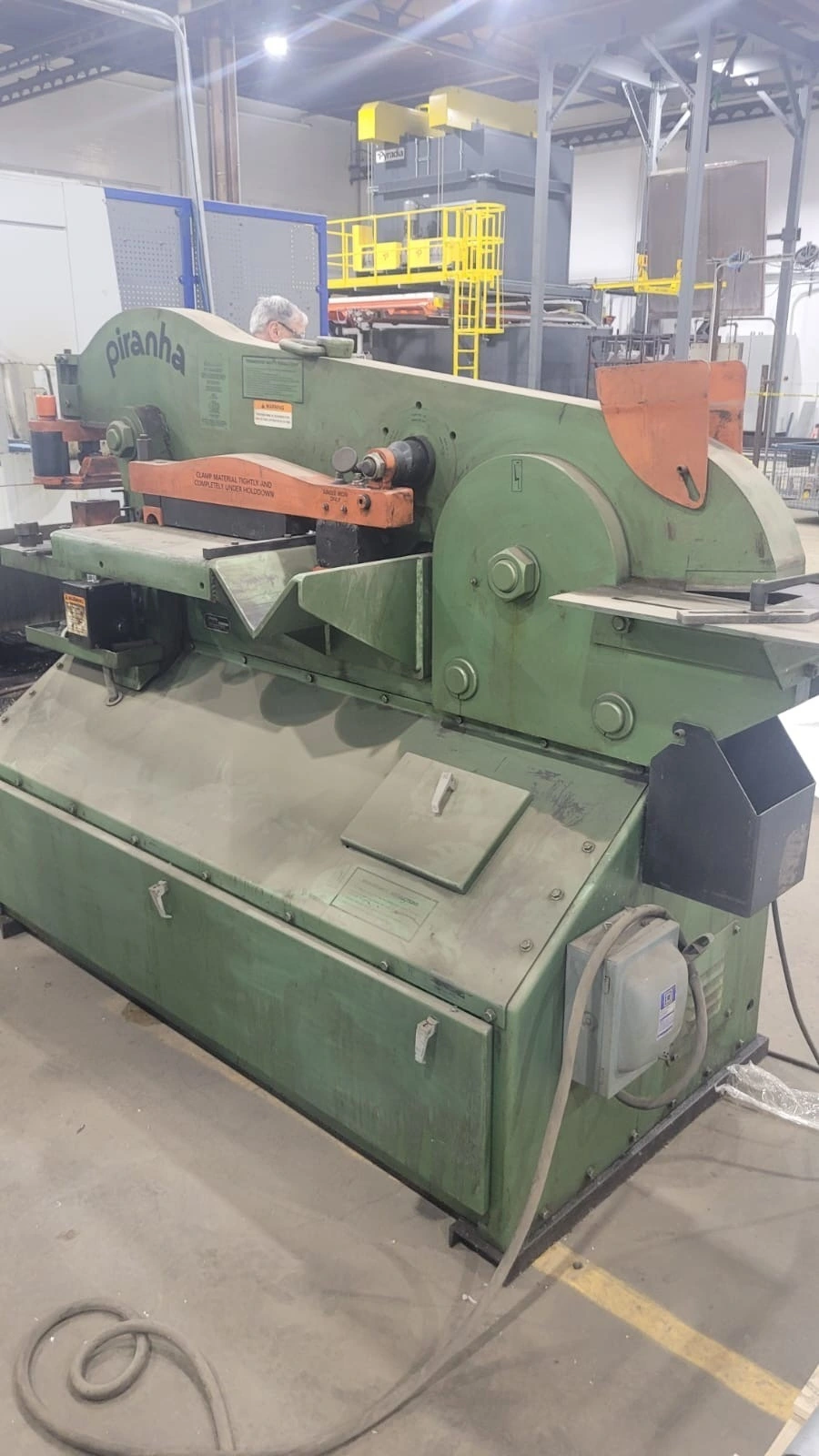

USED PIRANHA P-90

Piranha P-90 Iron Worker

Hydraulic Capacity: 90 Tons
1. Punching Station
Maximum Capacity: 90 Tons
Throat Depth: 10″
Max Hole Capability: 1-1/8″ diameter through 1″ thick plate
Max Large Hole Capability: 5″ diameter through 3/16″ material
Plate & Flat Bar Shear Station
Blade Length: 18″ long
Max Material Capacities: 1″ x 8″ plate 3/4″ x 12″ plate1/2″ x 18″ plate

Angle Iron Shear Station

Max 90° Shear: 5″ x 5″ x 1/2″ ( 6"x 6″ x 5/8″)
Round & Square Bar Shear Station
Round Bar Capacity: 1/2″ through 2″ diameter solid stock
Main Drive Motor: 10 HP (Standard 230 / 460 Volt, 3-Phase, 1800 RPM)
Stroke Length: 4-7/8″ (4.875")
Platen Table Size: 12″ x 21″
Work Station Height: 42″
Hydraulic Fluid Capacity: 25 Gallons (Recommended: ISO Grade 32 / AW-32)

Standard Features & Factory Tooling
Urethane Stripper Assembly: Keeps material completely flat and minimizes distortion during the punch stroke.

Automatic Shear Hold-Downs: Keeps bar stock from twisting or kicking up while shearing.
Control Adjustments: Full electrical control via remote electric foot pedals and adjustable stroke limit switches.

Low Rake Angle Blades: Prevents part deformation during flat-bar and notch cycles.

Total Machine Weight: Approx. 4,250 lbs
Approximate Dimensions: 35″ W x 90″ L x 66.5″ H
