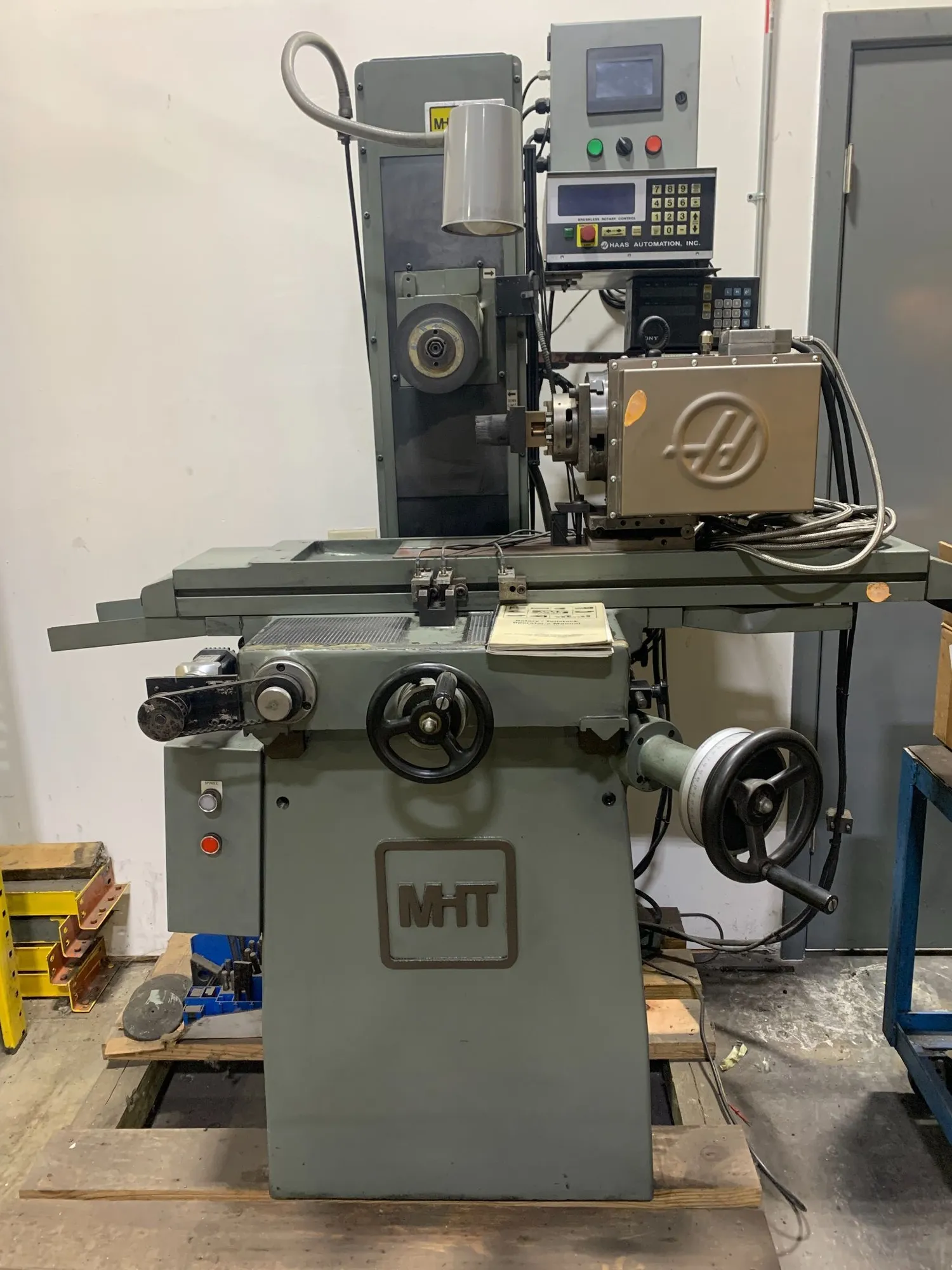

Mitsui MSG-200MH Hand Feed Surface Grinder
HRT-160SP Indexer
| Table-W | 6" | 152.4 mm |
| Table-L | 12" | 304.8 mm |
| Horz/Vert | Horz | Horz |
| Power | 1.3 hp | 1 kW |
| Grinding Wheel Width | 0.5" | 12.7 mm |
| Grinding Wheel Dia. | 7" | 177.8 mm |
General Specificaitons:
Chuck Size: 6" x 12"
Table Size: 6" x 13.5"
Carriage / Table Movement: 8" x 15"
Height Spindle Center to Table: 18"
Wheel Size: 8" x 3/4" x 1.25"
Longitudinal Feed Rate: Hand Feed 4" Per Handwheel Rev.
Cross Feed Movement Per Handwheel Revolution: .1" Per Rev / .001 Increments
Wheelhead Feed Increments: Hand Feed .05" Per Rev / .0001 Increments
Wheelhead Rapid Feedrate: Optional Poer Vertical Feed: 17-1/3 IPM
Spindle Speed: 3,470 RPM
Spindle Drive: 1.3 HP
Haas HRT-160 SP Indexer
Earth Chain EEPM-3040A Electro-Magnetic Chuck (12.2" x 17.3" x 2")
Erowa Fixtures ER-009219 (Amount TBD)
