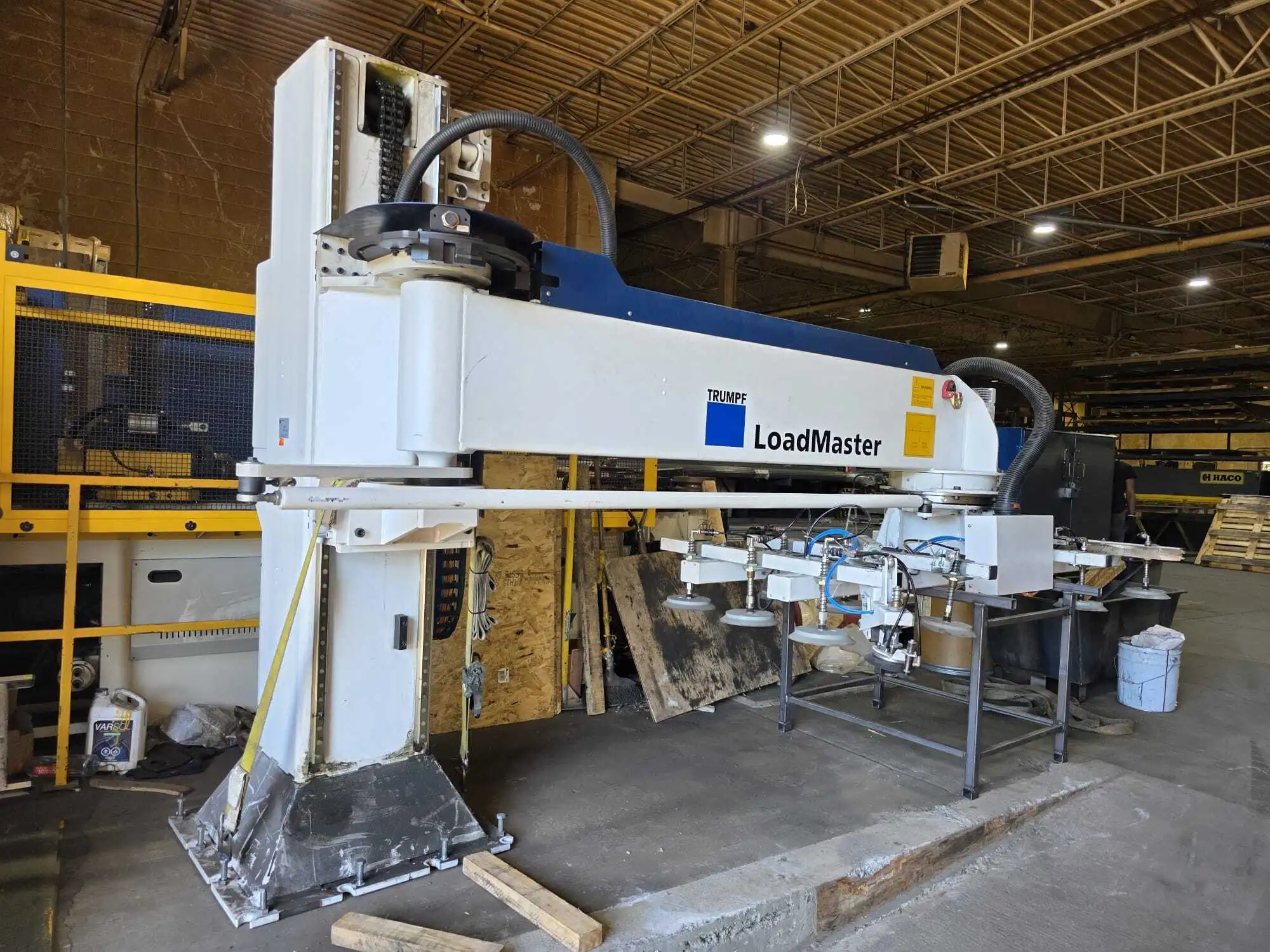

USED TRUMPF LOADMASTER

TRUMPF LOADMASTER AUTOMATIC SHEET LOADER

Manufacturer: TRUMPF
Model: LoadMaster
Country of Origin: Germany

Specs
Machine Type: Automatic Sheet Loading System for Laser Cutting Machines
Maximum Sheet Size: 3000 x 1500 mm (118 x 59 in)
Minimum Sheet Size: 1000 x 500 mm (39.4 x 19.7 in)
Maximum Sheet Thickness: 25 mm (1.0 in)
Maximum Sheet Weight: 900 kg (1,984 lb)
Loading Cycle Time: Approx. 103 sec
Loading Method: Vacuum Suction Cup System
Sheet Separation: Magnetic Sheet Separator for Ferrous Materials

Dimensions: 14' x 8' x 11'ft
Weight: 7,500 lb
