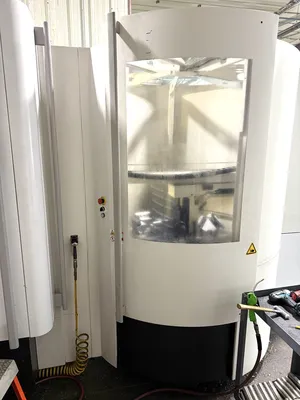

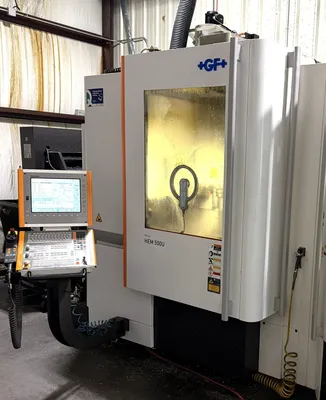

USED 2014 +GF+ MIKRON HEM 500U
Overview
Description

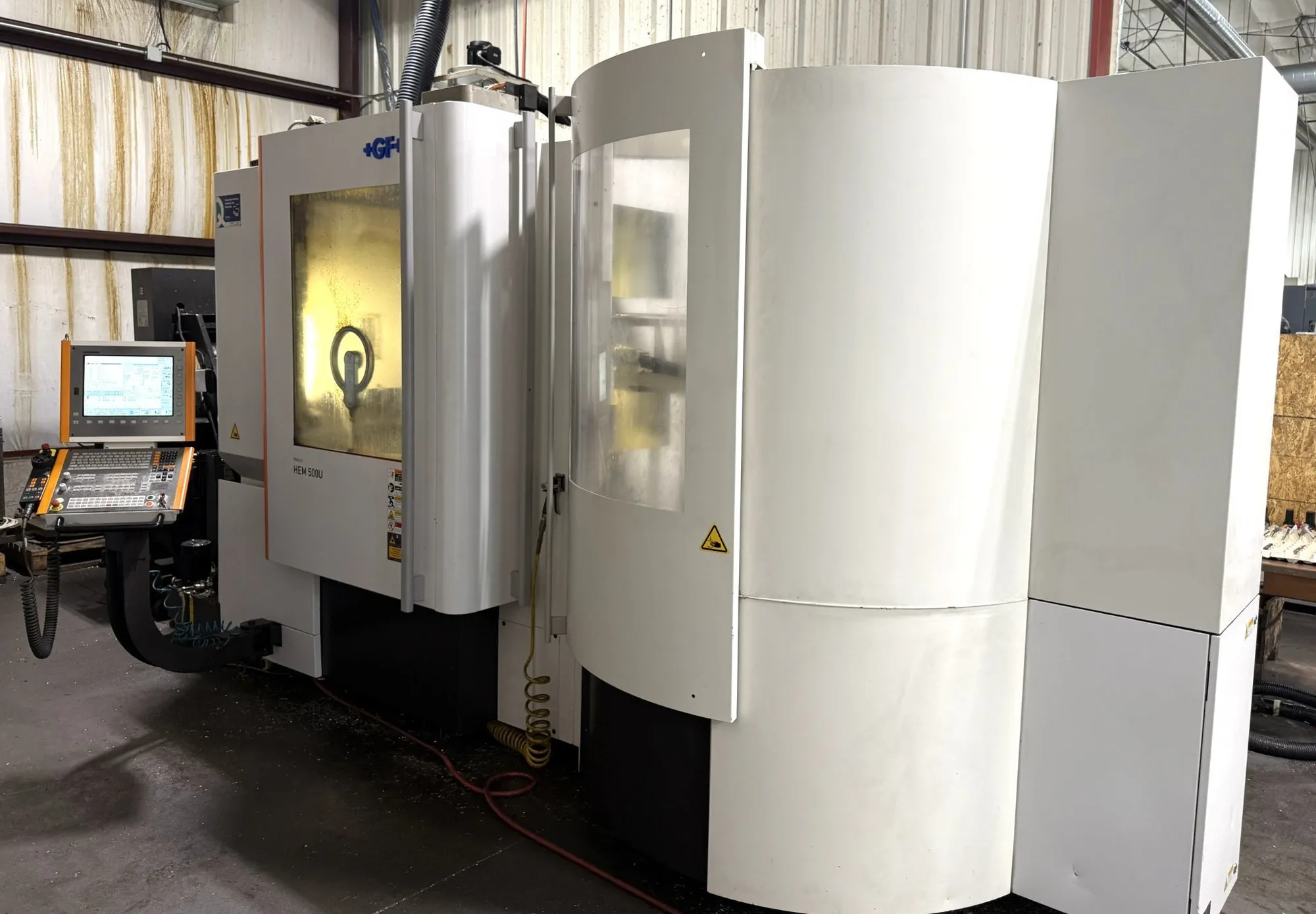

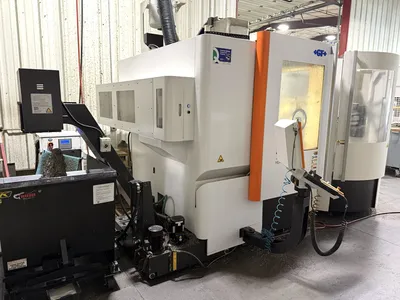

5-Axis, 5-Station Pallet Changer, 20000 RPM, Through Spindle Coolant, Probe, 40 ATC. This +GF+ AgieCharmilles Mikron HEM 500U universal machining center with the Heidenhain iTNC 530FS CNC control is under power and ready for immediate inspection and purchase.
Specifications
| PLATTER DIAMETER | 19.69" | 500.13 mm |
|---|---|---|
| TABLE LOAD CAPACITY | 661 lb | 299.8 kg |

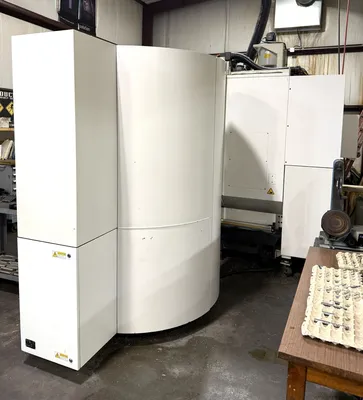

| NUMBER OF PALLETS | 5 | 5 |
| X-AXIS TRAVEL | 19.69" | 500.13 mm |
| Y-AXIS TRAVEL | 17.71" | 449.83 mm |
| Z-AXIS TRAVEL | 15.75" | 400.05 mm |
| A-AXIS (TILT) TRAVEL | –65° / +110° | –65° / +110° |
| C-AXIS (ROTATION) TRAVEL | 360° | 360° |
| SPINDLE SPEED | 20,000 RPM | 20,000 RPM |
| SPINDLE MOTOR | 30 hp | 22.4 kW |
| SPINDLE TAPER | CAT 40 | CAT 40 |
| TOOL CAPACITY (ATC) | 30 | 30 |
| RAPID TRAVERSE RATE | 1181 ipm | |
| Dimensions | 105" x 128" x 123" | 105" x 128" x 123" |
| Weight | 14,330 lbs | 14,330 lbs |
Equipped With

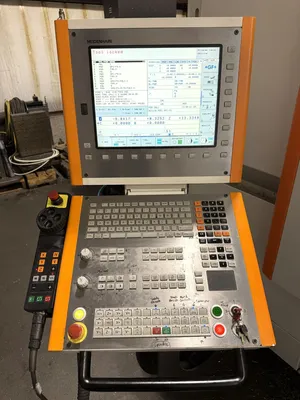

HEIDENHAIN iTNC 530 FS CNC CONTROL
5-AXIS (3+2)

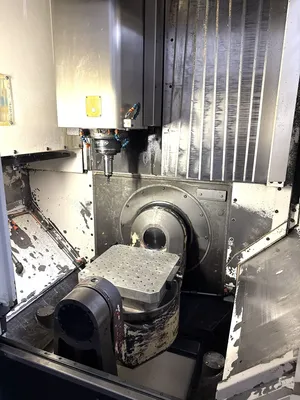

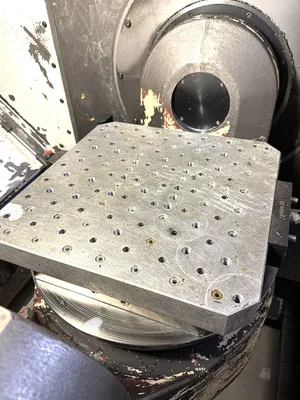

HEM ROTARY TILTING TABLE

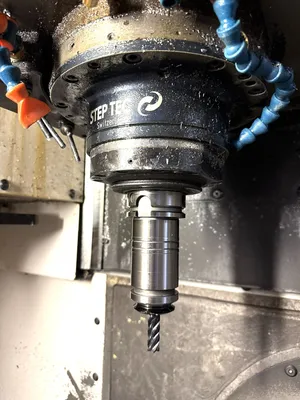

20,000 RPM SPINDLE
40 POSITION AUTOMATIC TOOL CHANGER
THROUGH SPINDLE COOLANT (300 PSI)
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM
BLUM LASER TOOL SETTER
OIL MIST SPRAY
MPG HANDWHEEL CONTROL
SPINDLE CHILLER
AUTOMATIC LUBRICATION SYSTEM
COOLANT TANK
COOLANT FILTRATION SYSTEM
CHIP CONVEYOR
** ORIGINAL OWNER
** MACHINE CUTTING PRIMARILY 416 STAINLESS STEEL

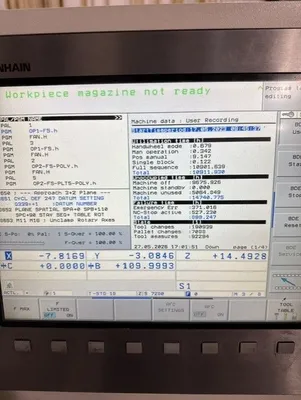

** AS OF JUNE 3, 2026 - TOTAL UTILIZATION TIME: 10,911 HOURS
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
