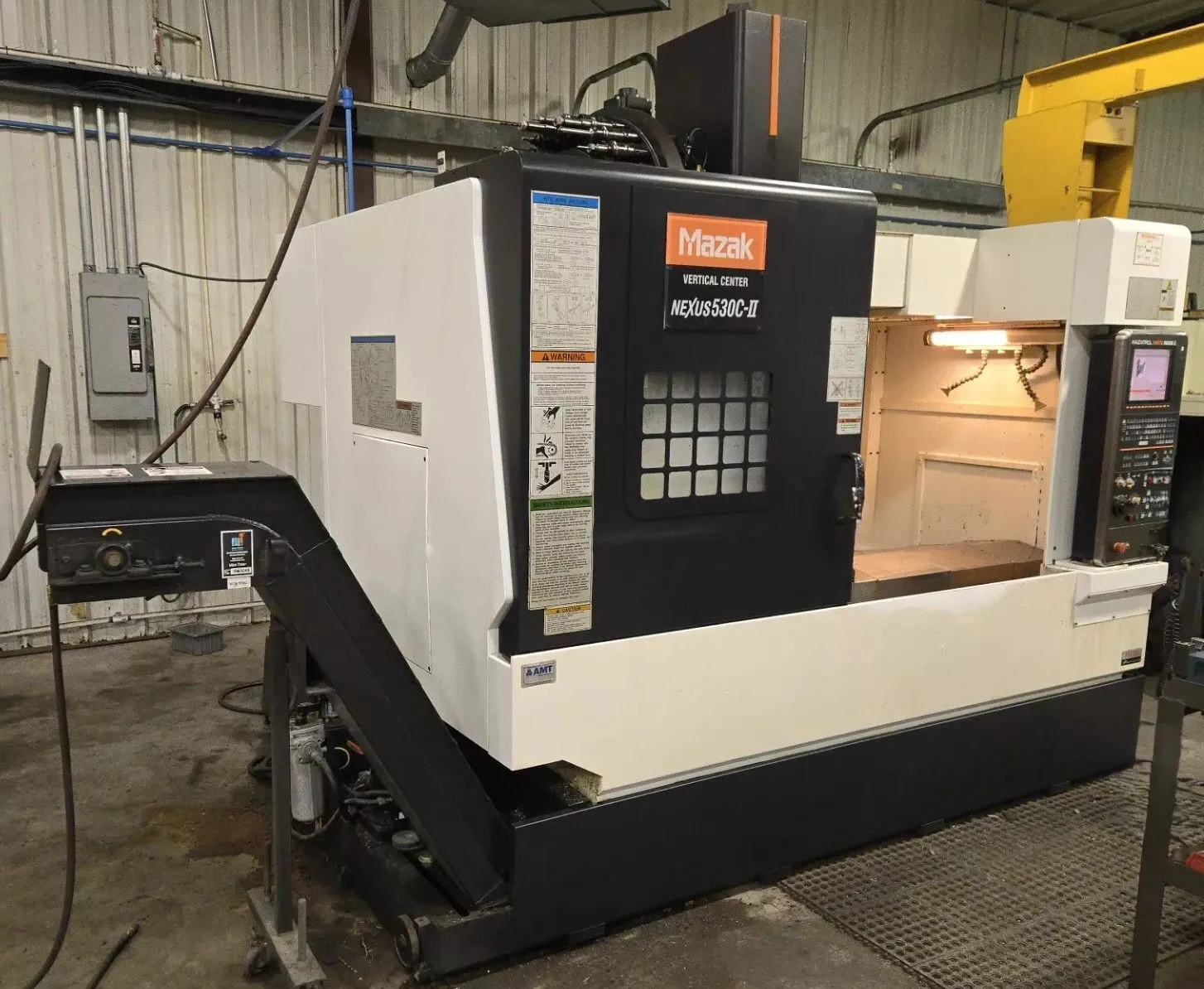

USED 2013 MAZAK NEXUS VCN 530CII
USD $69,500.00
Overview
Specifications
| X | 41.3" | 1,049 mm |
|---|---|---|
| Y | 20.8" | 528.32 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT 40 | CAT 40 |
| Pallet-W | 21.6" | 548.64 mm |
| Pallet-L | 51.1" | 1,297.9 mm |
| # Axis | 4 | 4 |
| Control | CNC (Mazatrol Matrix Nexus 2) | CNC (Mazatrol Matrix Nexus 2) |
| Dimensions | 117" x 112" x 112" | 117" x 112" x 112" |
| Weight | 15600 | 15600 |
2013 Mazak VCN 530C-II VMC
Mazatrol Matrix Nexus 2 Controller
Travels & Table
X-Axis Travel: 41.3in
Y-Axis Travel: 20.8in
Z-Axis Travel: 20in
Table Size: 51.1in x 21.6in
Maximum Table Load: 2,646 lbs
Spindle
Spindle Taper: CAT 40
Spindle Speed: 12,000 RPM (Standard)
Spindle Motor: 30HP / 15 HP Continuous
Tool Changer
Capacity: 30 Stations
Comes Fully Tooled
Tool Change Time: 1.3 Seconds
Max Tool Weight: 17.6lbs
Max Tool Diameter: 3.25in to 4.92in
Max Tool Length: 13.8in
Rapid Traverse Rates: 1,654 IPM (X, Y, and Z Axis)
Has 4th Axis with Tailstock
