USED 2006 HAAS TL-15B

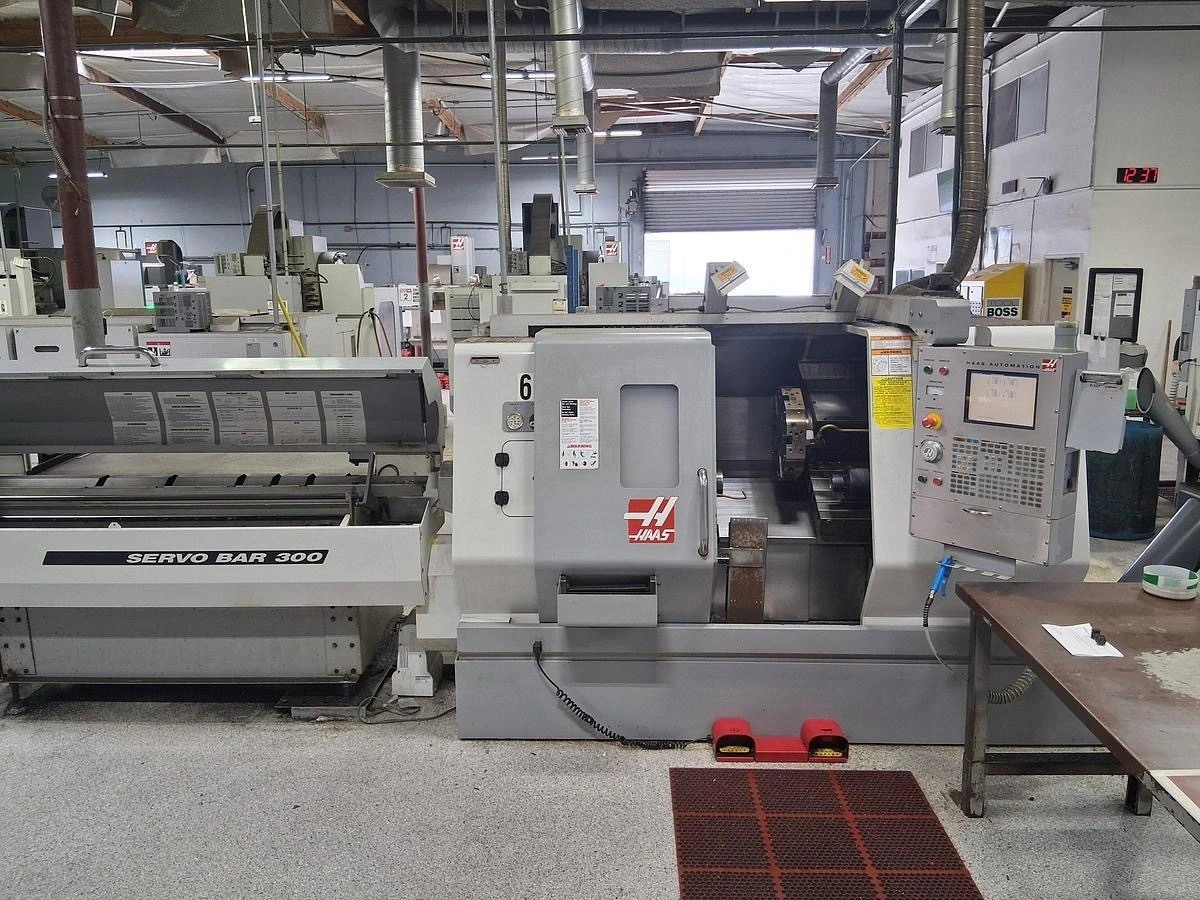

2006 Haas TL-15B CNC Toolroom Lathe
Clean, well-equipped 2006 Haas TL-15B CNC Toolroom Lathe featuring a Subspindle, Bar Feeder, Tool Eye Automatic Tool Setter, Chip Auger, Parts Catcher, and High-Intensity Lighting. This versatile machine is ideal for prototype work, short-run production, and complete part machining with reduced handling and increased efficiency.
A great opportunity to add a dependable Haas turning center with productivity-enhancing options to your shop floor.

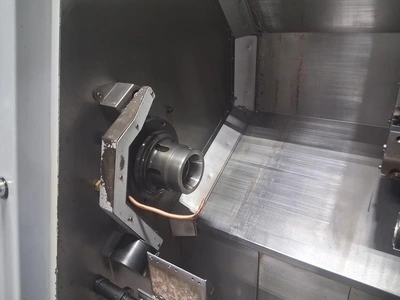

Chuck Sizes Main / Subspindle Collet Chucks & 3-Jaw Chucks
Maximum Swing over Bed 21.65"
Maximum Swing Over Cross Slide 9.5"
Maximum Cutting Diameter 8.2"
Maximum Distance Between Spindles 17.5"
X-Axis Travel 7.5"
Z-Axis Travel 17.5"
Spindle Nose / Bore / Bar Capacity A2-5" / 3.5" / 3"
Spindle Speeds 4,000 RPM
Spindle Motor 20 HP

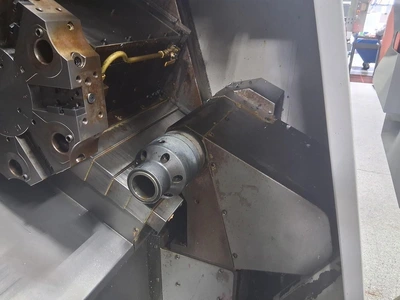

Subspindle Bore / Bar Capacity A2-5" / 1.18"
Subspindle Speed 4,000 RPM
Subspindle Motor 8 HP

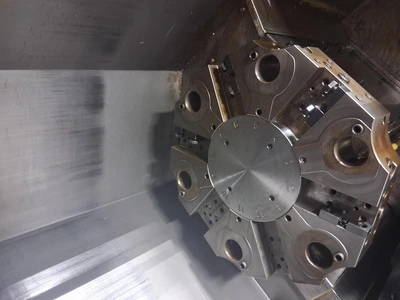

Turret Type 12 Positions
Rapid Traverse Rates 710 IPM
Machine Dimensions LxWxH 96" x 62" x 70"
Machine Weight 9,000 lbs
Barfeed 107"x45"x55"
Barfeed Weight Aprx 900 lbs

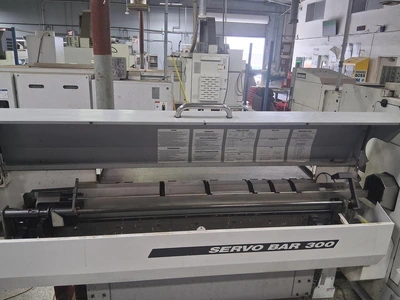

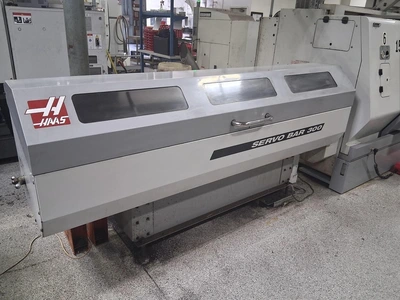

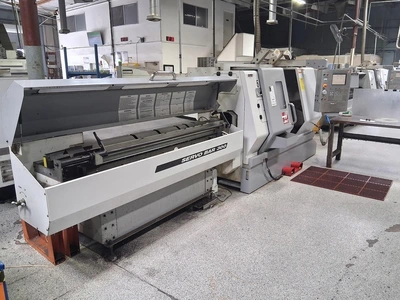

Haas Servo Bar 300 Bar Feeder

Tool Presetter

Parts Catcher

Spindle Orientation

Rigid Tapping

High Intensity Lighting

Standard Coolant Tank with Pump

USB Port Interface

RS 232 Port Interface

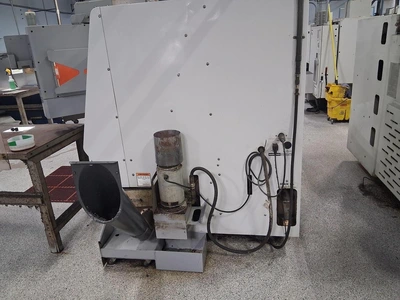

Chip Auger
