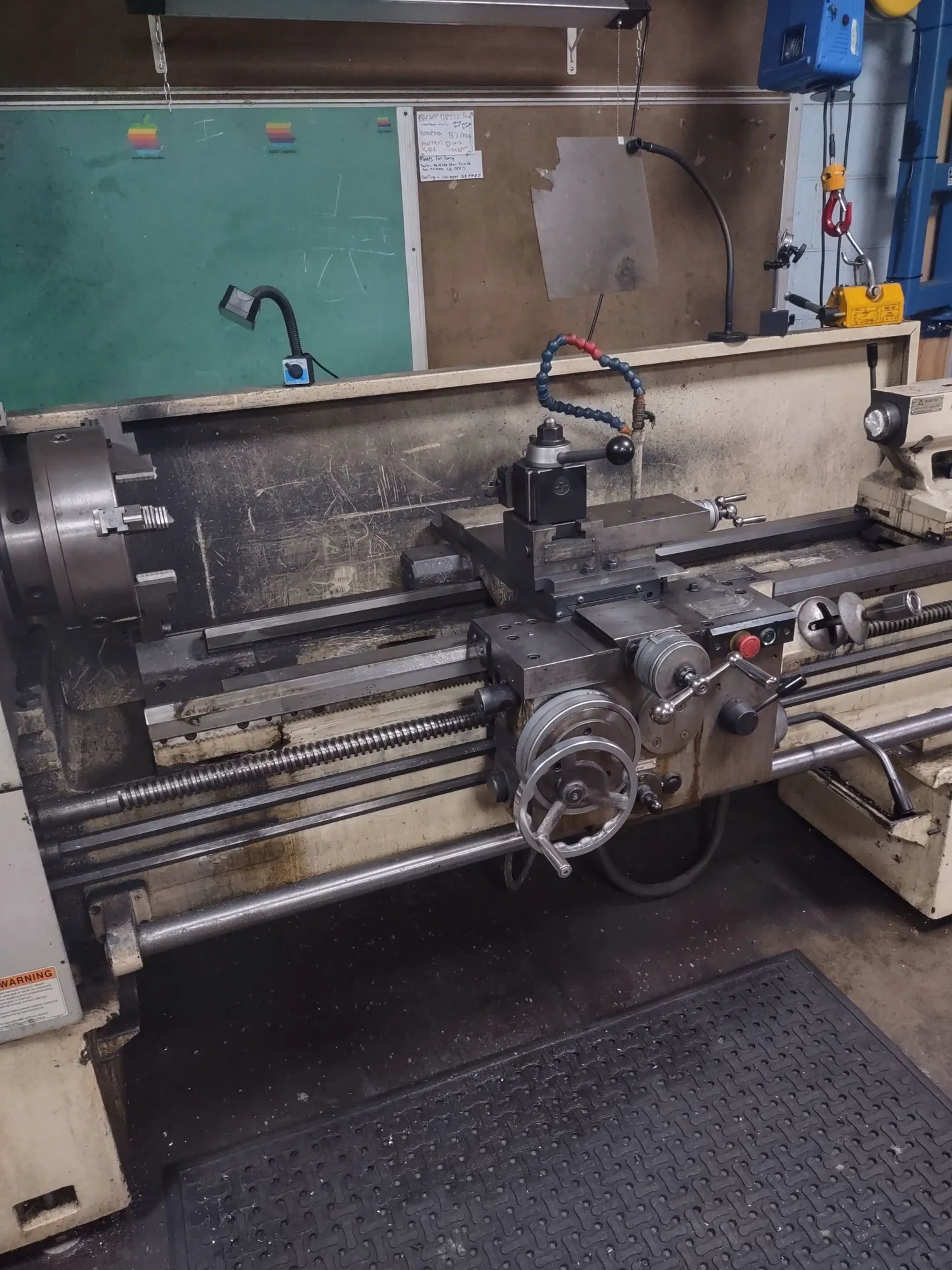

USED 2014 GMC GT-2060

GMC GT-2060 Engine Lathe, New in 2014

General Specifications:
Swing over bed: 20"
Length of workpiece: 60"
Swing over cross slide: 12"
Swing in gap: 28"
Width of bed: 15-1/2"
Effective length in gap to spindle: 9"
Effective length in gap to chuck jaws: 6"
Spindle bore: D1-8, 4-1/8"
Taper of spindle center: M.T.#6
Spindle speed: 1,600 rpm, 12 steps
Longitudinal feeds: 0.0023-0.093 IPR, 65 kinds
Cross feeds: 0.0011-0.04 IPR, 65 kinds
Inch threads: 28-2 TPI, 25 kinds
Metric threads: 1-14 mm, 22 kinds
Module threads: 0.5-7 mm, 18 kinds
Diameter pitch threads: 56-4 DP, 24 kinds
Travel of top slide: 5-3/4"
Travel of cross slide: 12-1/2"
Longitudinal rapid traverse: 18 ft/min.
Cross rapid traverse: 8 ft/min.
Diameter of tailstock quill: 3"
Travel of tailstock quill: 6"
Taper of tailstock quill center: M.T.#5
4-way tool post size: 1" x 1"
Longitudinal leadscrew diameter/pitch: diameter: 3", pitch: 2 TPI
Main motor: 10 HP, 220V/440V, 3 phase, prewired on 220V
Rapid traverse motor: 1/3 HP, 220V/440V, 3 phase, prewired on 220V
Coolant pump motor: 1/8 HP, 220V/440V, 3 phase, prewired on 220V

Machine Dimensions: 119" x 46" x 60"
Machine Weight: 4,620 lbs

12" 3 Jaw Chuck
16" 4 Jaw Chuck
24" Faceplate
5C Collet Attachment
Taper Attachment
Steady Rest
Follow Rest
Digital Read Out
Coolant System
Aloris Toolpost
