USED 2013 DOOSAN PUMA 400LC

Chip Conveyor
21" 3 Jaw Hydraulic Chuck
Programmable Tailstock
SMW Autoblok Hydraulic Steady Rest
Tool Presetter
3.5" Floppy Disk Interface
Card Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Boxed Way Construction on Slant Bed
All Available Tooling
All Available Manuals

**Approximately 7,000 Run Hours**

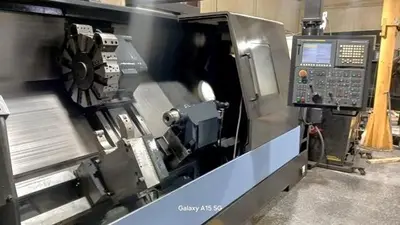

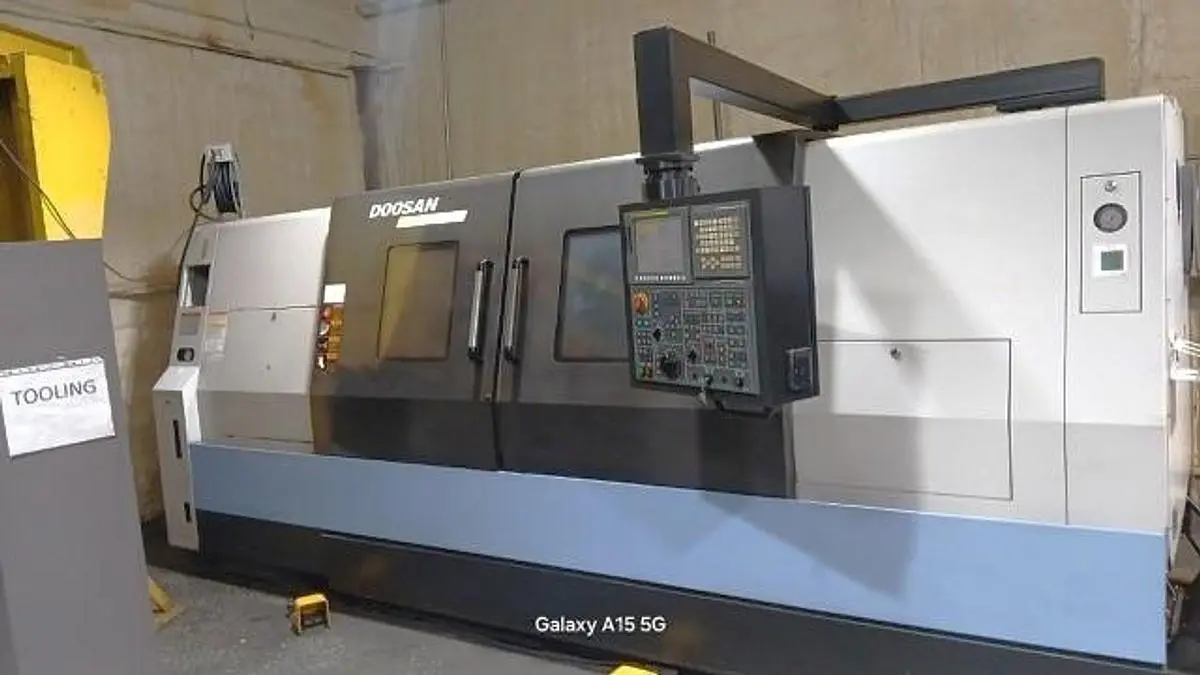

The 2013 Doosan Puma 400LC is a robust CNC lathe, designed to handle demanding machining tasks with precision and efficiency. It features a 21" hydraulic chuck and offers a substantial maximum turning diameter of 23.2", with a turning length capacity of up to 81.7". Powered by a 50 HP spindle motor, the machine can achieve spindle speeds up to 1,500 RPM, ensuring powerful and rapid operations.

Equipped with a Fanuc i Series Control system, the lathe provides ease of operation and precise control. The machine boasts a bar capacity of 6.5" and includes an A2-15 spindle nose with a 7.1" spindle bore. With rapid traverse rates of 630 IPM for the X-axis and 790 IPM for the Z-axis, this equipment ensures quick and efficient positioning. Additionally, the 12-position turret and hydraulic tailstock provide versatility for various machining tasks.

The Doosan Puma 400LC is fitted with an SMW hydraulic steady and a conveyor for efficient chip management. Despite its heavy-duty capabilities and machine weight of 25,500 lbs., it maintains a compact footprint with dimensions of 210" x 94" x 89". This CNC lathe is an optimal choice for industries requiring consistent and reliable performance.

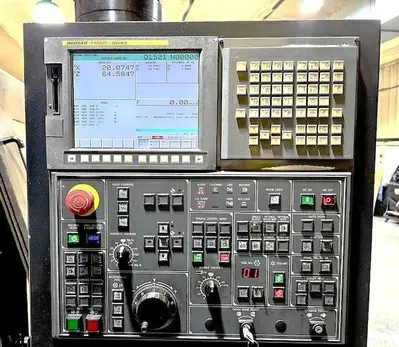

Control: Fanuc i Series Control
Chuck Size: 21" Hydraulic Chuck
Maximum Swing: 30.31"
Maximum Turning Diameter: 23.2"
Maximum Turning Length: 81.7"
Maximum Bar Capacity: 6.5"
X-Axis Travel: 14.25"
Z-Axis Travel: 84.84"
Spindle Nose / Spindle Bore: A2-15" / 7.1"
Spindle Speeds: 1,500 RPM
Spindle Motor: 50 HP
Number of Turret Positions: 12 Position Turret
Rapid Traverse Rates X/Z: 630 IPM / 790 IPM
Tailstock Quill Diameter / Center: 4.7" / MT #5
Tailstock Quill Travel: 4.7"
Machine Dimensions: 210"x94"x89"
Machine Weight: 25,500 lbs.
