USED 2009 MORI SEIKI NV5000 1A/40
Overview
Description

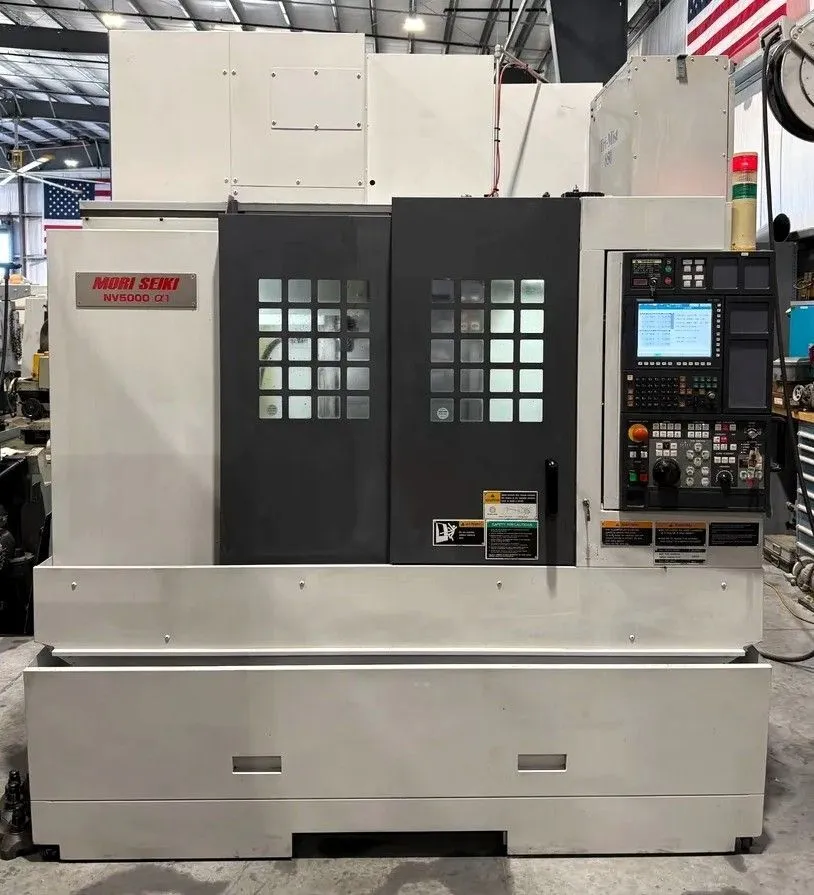

MORI SEIKI NV5000 1A/40 CNC Vertical Machining Center, New in 2009.
Specifications
| X-Axis | 31" | 787.4 mm |
|---|---|---|
| Y-Axis | 20" | 508 mm |
| Z-Axis | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc 18i) | CNC (Fanuc 18i) |
| Dimensions | 142" x 101" x 101" | 142" x 101" x 101" |
| Weight | 14500 | 14500 |
General Specifications:
X axis 31"
Y axis 20"
Z axis 20"
Power 30 hp
RPM 20,000 RPM
# ATC 30
Taper 40
# Axis 3
Dimensions 142” x 101” x 101” H
Weight 14,500 Lbs.
Tabel size- 43.30” x 23.60”
Max table weight -2,640 Lbs.
X axis travel- 31.50”
Y axis travel- 20.10”
Z axis travel- 20.10”
Rapid traverse- 1654 I.P.M.
Cutting feeds- 630 I.P.M.
Spindle taper- BT-40
Spindle speed- 20,000 R.P.M.
Spindle nose to table- 5.91” Min / 25.98” Max
Tool changer- 30 tool capacity
Max tool weight- 17.6 Lbs.
Max tool diameter- 4.92”
Tool changing time- 0.9 Seconds
Equipped With
MSG-501 (FANUC 18i) CNC Control
Machine hours- 15,435
Machine ran oil (came out of a medical part mfg.)
Plumbed for fire suppression
Mist collector
(3) Coolant pumps
30 H.P. Spindle motor
Machine is wired for 220 volt / 3 phase / 60 H.Z.
