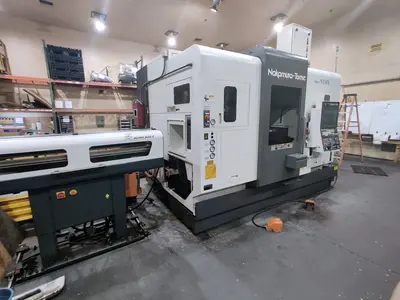

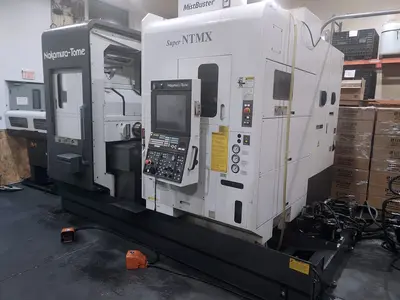

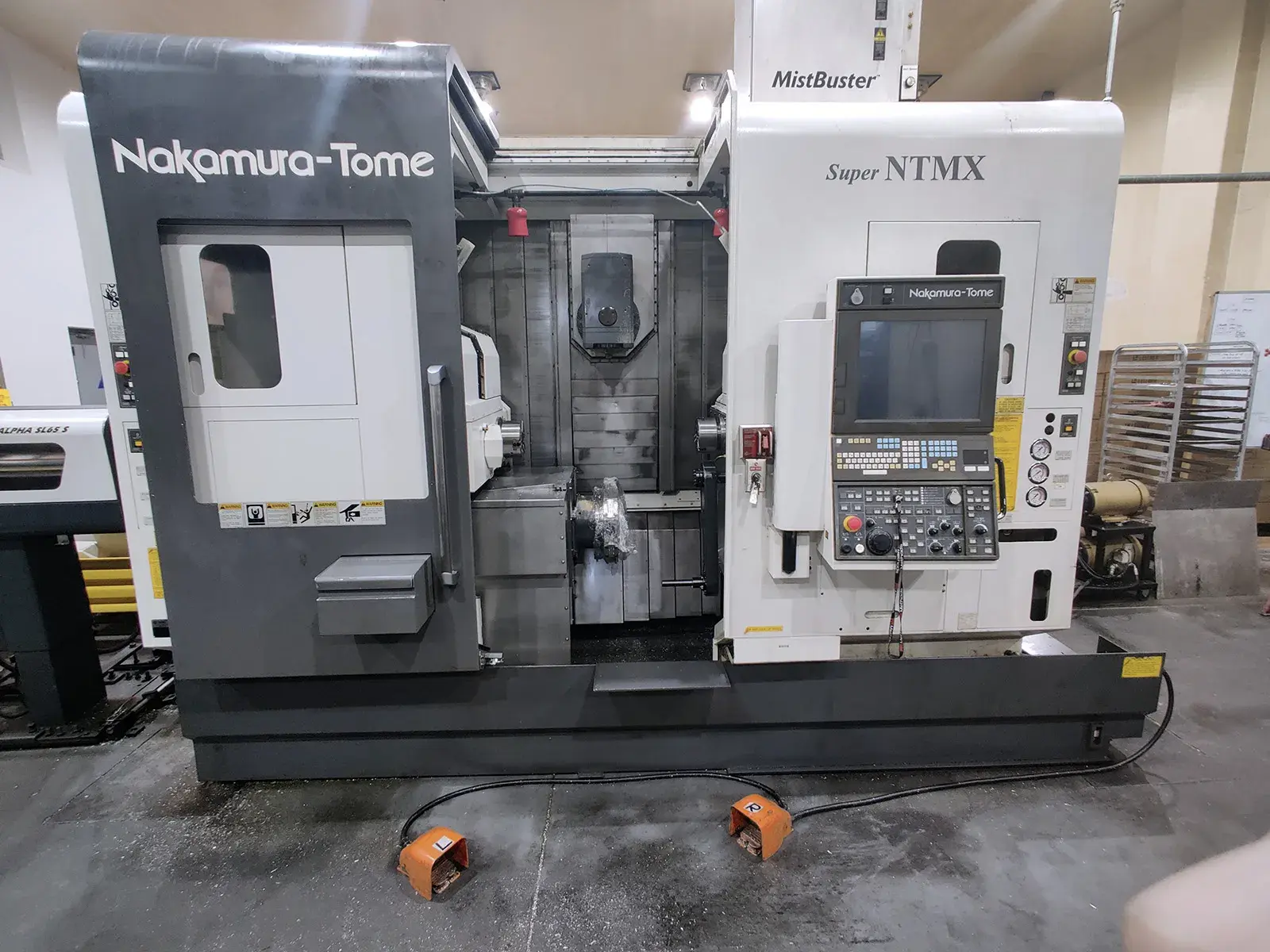

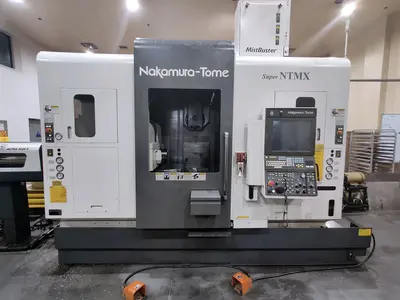

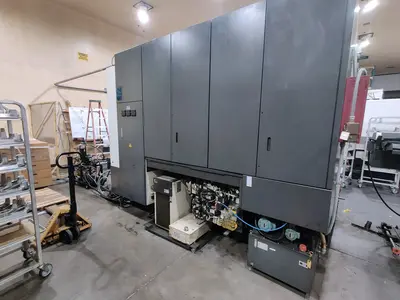

USED 2013 NAKAMURA TOME SUPER NTMX
Overview
NAKAMURA TOME SUPER NTMX (2013) CNC Turn-Mill Center is engineered for complete machining of complex, high-precision components in a single setup. Designed for aerospace, medical, automotive, and energy applications, it delivers exceptional accuracy, reduced cycle times, and increased productivity for parts such as turbine components, implants, housings, valves, and drivetrain assemblies.
Specs
Swing over cross slide: 8.07"
Max Cutting Diameter: 7.87"
Max Cutting Length: 30"
DISTANCE BETWEEN CENTERS: 38.58"
X-Axis Travel: 22.44"
Y-Axis: Yes
Y-Axis Travel: 7.87" (±3.93")
Z-Axis Travel: 51.1"
Chuck Size: 7"
Bar Capacity: 2"
Spindle Nose: A2-5
Spindle Motor: 15 hp
Spindle Speed: 5,000 RPM
Sub Spindle: Yes
Sub Spindle - Chuck Size: 7"
SUB SPINDLE - BAR CAPACITY: 2"
SUB SPINDLE - Spindle Nose: A2-5
SUB SPINDLE - SPINDLE MOTOR: 15 hp
Sub Spindle - Spindle Speed: 5,000 RPM
B-AXIS MILLING SPEED: 12,000 RPM
B-AXIS Rotation: 190° (±95°)
Turret Capacity: 24
Live Milling Speed: 12,000 RPM
TURRET 2 CAPACITY: 24
TURRET 2 - X-AXIS TRAVEL: 5.13"
TURRET 2 - Z-AXIS TRAVEL: 25.9"
Equipped With

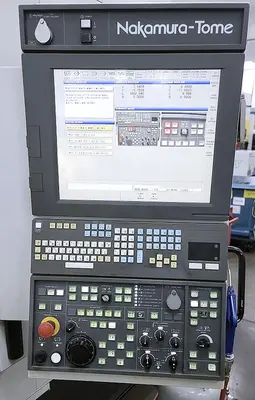

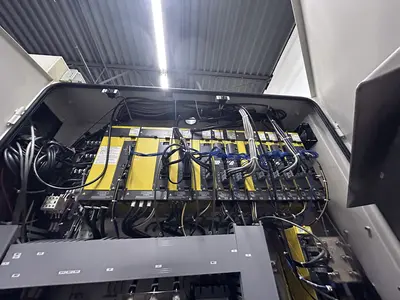

FANUC 31i-A5 2PATH CNC CONTROL

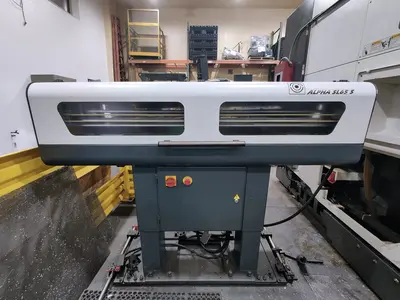

LNS ALPHA SL65-S BAR FEEDER (2014)
9-CONTROLLED AXES
5-AXES SIMULTANEOUS MACHINING (UPPER X1 Z1 C1[C2] Y B1)
4-AXES (LOWER X2 Z2 C2[C1] B2)
SIMULTANEOUS TURNING UPPER & LOWER TURRETS
48 ATC (24 ATC MAGAZINE UPPER/24 ATC MAGAZINE LOWER)
THRU-SPINDLE COOLANT

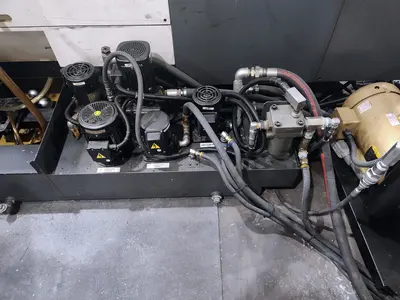

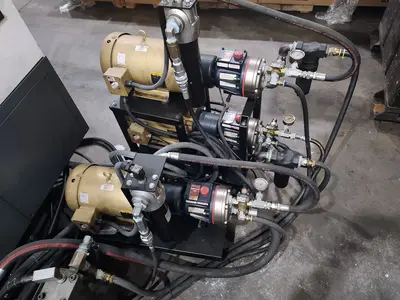

HIGH PRESSURE COOLANT (1000 PSI)
RENISHAW NC4 LASER TOOL SETTER (SETTING UPPER TOOLS)
SRP3 TOOL PRESETTER (SETTING LOWER TOOLS)
PART CONVEYOR
PARTS CATCHER

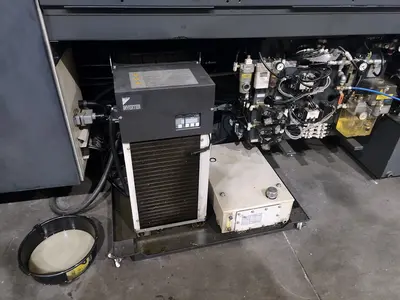

SPINDLE CHILLER
MIST BUSTER MIST COLLECTOR
FIRE SUPPRESSION SYSTEM

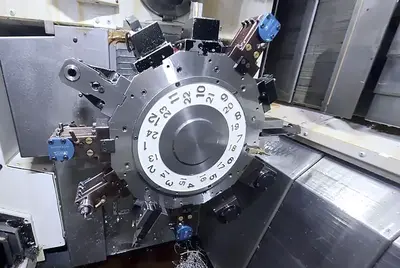

LOWER TURRET (14 HOLDERS):
(2) DRIVEN 90 DEGREE ER16 HOLDERS
(5) BORING BAR HOLDERS 1” DIA
(2) BORING BAR HOLDERS 1.25 DIA
(5) STICK TOOLING BLOCK

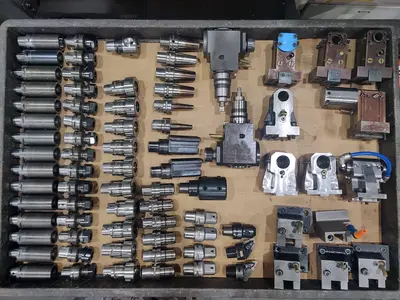

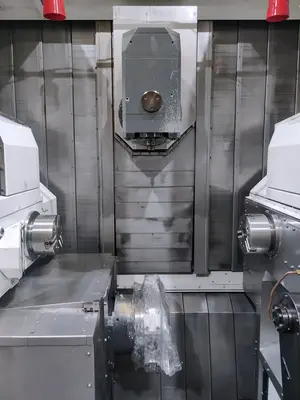

MILLING HEAD (63 HOLDERS):
(15) C4 EXTENSIONS
(6) ER16 HOLDERS (ULTRA-HIGH-PRECISION)
(15) ER20 HOLDERS
(10) ER32 HOLDERS (LYNDEX NIKKEN)
(4) INTERNAL BORING TOOL HOLDERS (PH HORN)
(1) PRECISION BORING HEAD
(2) CUTOFF BLADE HOLDER
(2) OD TURNING HOLDERS
(1) SIDE-LOC HOLDER
(1) BORING BAR HOLDER
(6) SHRINK FIT HOLDERS
