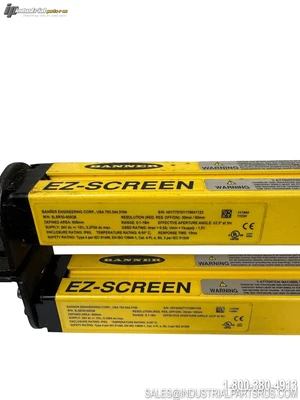

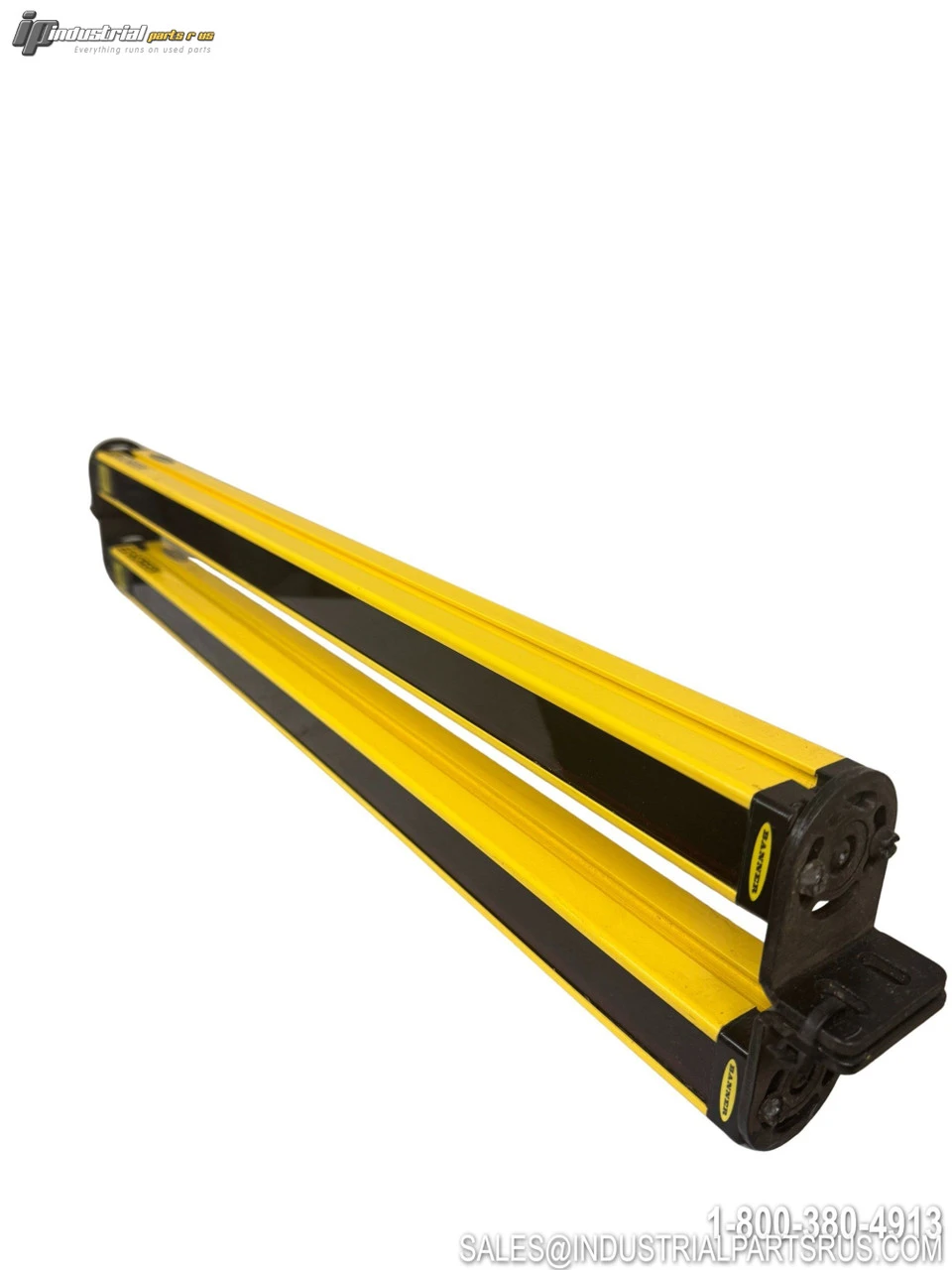

USED BANNER SLSR30-600Q8

This listing includes the COMPLETE SET with both emitter and receiver units.
The Banner SLSR30-600Q8 is an EZ-SCREEN safety light curtain receiver designed for personnel protection in industrial environments. This receiver creates an infrared light barrier with 30mm resolution for hand and ankle detection, featuring 40 beams across a 600mm protective height with operating ranges up to 18 meters.
Specification
Value
Brand
Banner
Model/Part Number
SLSR30-600Q8
Type
Light Curtain
Series
EZ-SCREEN 14/30 Series
Resolution
30mm
Defined Area Height
600mm (23.6 inches)
Housing Length
671mm (26.4 inches)
Number of Beams
40
Sensing Range
0.1m to 18m (4 inches to 60 feet)
Response Time
15ms
Operating Voltage
24VDC
Connection Type
8-pin M12 Connector
IP Rating
IP65
Operating Temperature
0°C to +55°C
Housing Material
Aluminum with Acrylic Lens
End Caps
Die-cast Zinc
Light Source
Infrared 850nm
Banner Part Number
71251
We warranty all items for 30 days from date of purchase.

SKU: AI1755
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 8.00 LBS
Width: 8.00
(in)
Height: 4.00
(in)
Depth: 36.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Sensor Type: Safety Light Curtain Receiver
Manufacturer: Banner
Part Number: SLSE30-600QB / SLSR30-600QB
Shelf: LC Bin
Model: SLSR30-600Q8
MPN: SLSE30-600QB / SLSR30-600QB
Type: Light Curtain
