USED STI MS46-20-700-X /MS46R-20-700-Q1-R-NO-FN

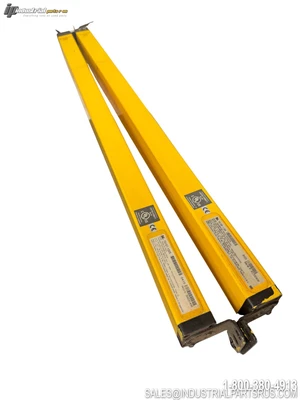

This listing includes the COMPLETE SET with both emitter and receiver units.
The STi MS46-20-700-X /MS46R-20-700-Q1-R-NO-FN is a MiniSafe MS4600 series safety light curtain system consisting of a transmitter and receiver pair. This industrial safety device provides presence detection with 20mm resolution capability for machine guarding applications. The system is designed to meet OSHA safety standards and provides reliable operator protection in manufacturing environments.
Specification
Value
Brand
STi
Model/Part Number
MS46-20-700-X /MS46R-20-700-Q1-R-NO-FN
Series
MiniSafe MS4600
Type
Safety Light Curtain Set
Resolution
20mm
Protected Height
700mm (27.6 inches)
Input Voltage
24VDC ±20%
Transmitter Current
285mA
Receiver Current
1.4A Max
Operating Range
0.3-20m (20mm resolution)
Response Time
<40ms
Enclosure Rating
IP65
Operating Temperature
0-55°C
Effective Aperture Angle
±2.5°
Safety Category
Type 4 ESPE
We warranty all items for 30 days from date of purchase.

SKU: AI1775
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 6.00 LBS
Width: 8.00
(in)
Height: 4.00
(in)
Depth: 36.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: Two PNP safety outputs
Sensor Type: Safety Light Curtain
Full Load Amps: 285mA
Manufacturer: STI
Enclosure Type: IP65
Part Number: MS46SR-20-700-Q1-R-NO-FN / MS46-20-700-X
Shelf: LC Bin
Model: MS46-20-700-X /MS46R-20-700-Q1-R-NO-FN
MPN: MS46SR-20-700-Q1-R-NO-FN / MS46-20-700-X
Type: Light Curtain
