USED 2014 DMG MORI NVX5100 II
Overview
Description

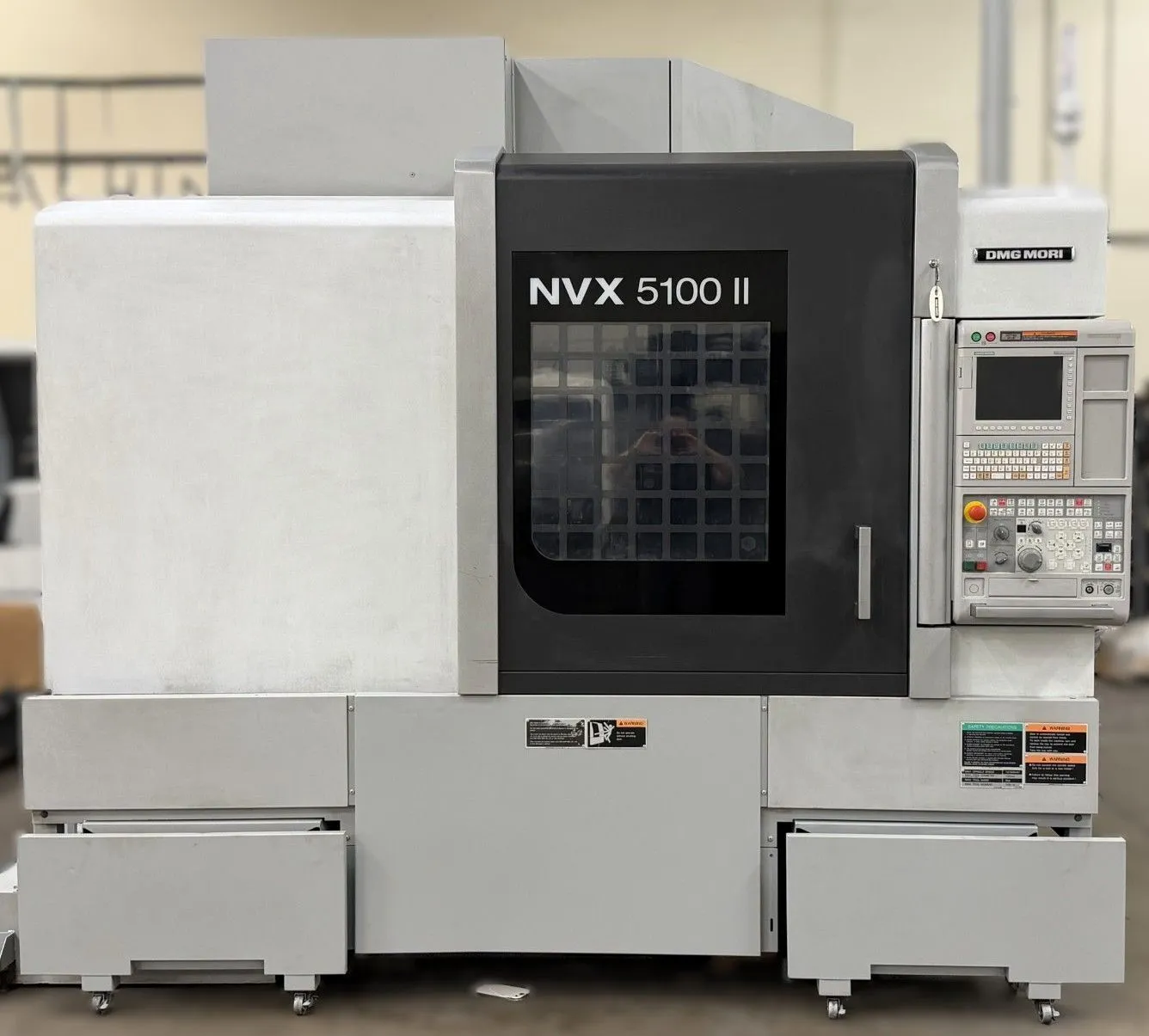

DMG MORI NVX5100 II CNC Vertical Machining Center, New in 2014
Specifications
| X-Axis | 41.3" | 1,049 mm |
|---|---|---|
| Y-Axis | 20.9" | 530.86 mm |
| Z-Axis | 20.1" | 510.54 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Table-W | 23.6" | 599.44 mm |
| Table-L | 53.1" | 1,348.7 mm |
| Control | CNC (CNC Mitsubishi) | CNC (CNC Mitsubishi) |
General Specifications:
Travel (XYZ) 41.3” x 20.9” x 20.1”
Spindle Nose to Table Top 5.9” – 26”
Table To Floor Distance 35.4”
Working Surface 53.1” x 23.6”
Table Load Capacity 2,640 lbs
Max. Spindle Speed 12,000 RPM
Spindle Taper 40
Rapid Traverse Rates XYZ Axes 1181.1 IPM
Spindle Drive Motor 30 HP
Tool Storage 30
Equipped With
M750BM w/ MAPPS Control (MITSUBISHI)
All Available Manuals
