USED PINES #4

6″ Pines 4 Tube Bender

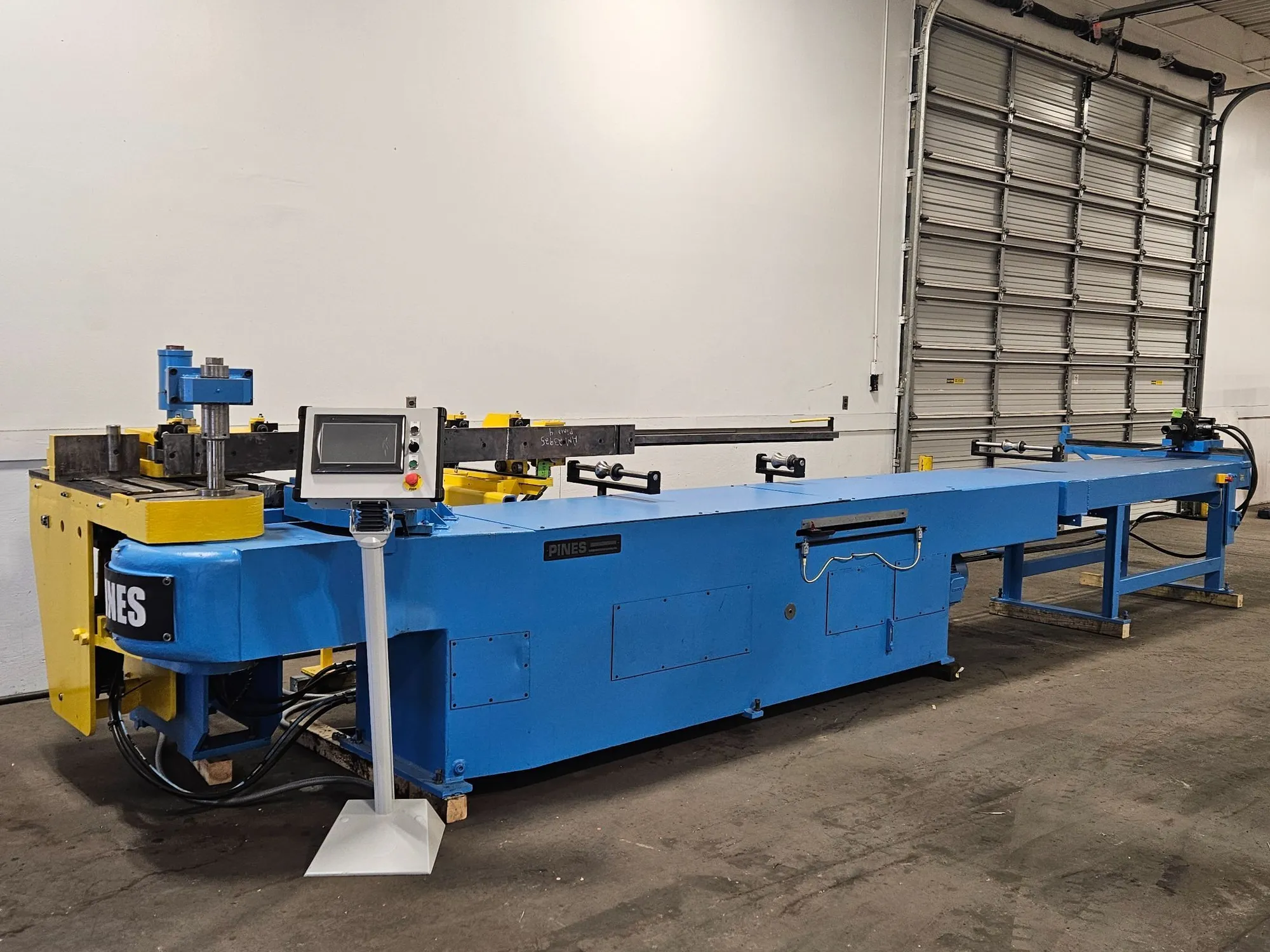

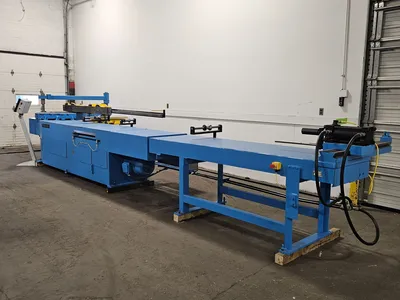

Pines Horizontal Heavy Duty Mandrel Tube / Pipe Bender Rebuilt
Model: #4
Specifications:

Minimum Bending OD: 1″ OD (approx.)
Maximum Bending Capacity:
Non-ferrous: 6″ OD x .250″ WT
Mild steel: 6″ OD x .165″ WT
Stainless Steel: 4-1/2″ OD x .250″ WT
Black iron pipe: 4″ schedule 80
Maximum degree of bend: 180 + springback
Maximum Centerline Radius: 24″
Maximum Length over mandrel: 200″
Bending Rotation: Left Hand (Counter-Clockwise)
Includes:

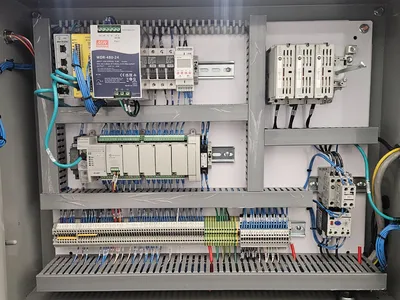

Updated Touchscreen Control System
New Allen Bradley PLC
New Hydraulic Hoses
Rebuilt hydraulic cylinders
Remachined slides / Wear surfaces
New encoder for accurate degree of bend

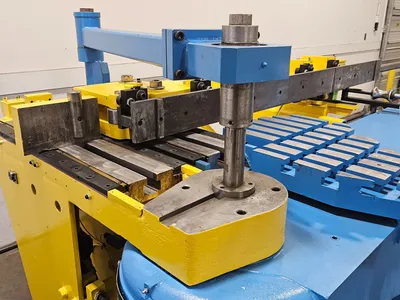

Overhead tie bar for rigidity during bend
Extended Pressure die for large radius / Large degree of bend

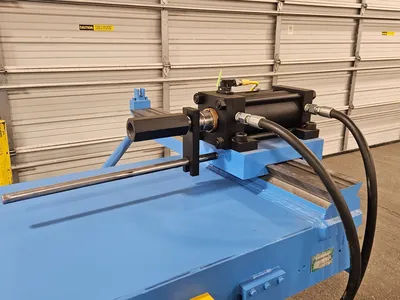

Hydraulic mandrel extractor
Automatic machine lubrication system
480 Volts
60 Hz
3 phase electrics
