USED 2015 AIR LIQUIDE C100

Complete Air Liquide hydrogen fueling station equipment package designed for light-duty vehicle refueling service at nominal pressures up to 700 bar, with 350 bar capability where applicable. The system is configured as a skid-mounted hydrogen refueling station with classified and non-classified equipment areas, hydrogen compression, high-pressure buffer storage, ground storage, cooling, heat exchange, dispensing support equipment, process manifolds, controls, and safety systems.

System includes:
(5) Cooling Water Units
(5) Heat Exchangers
(5) Chillers
(1) Classified Skid
(5) Interconnection Manifolds
(5) Delivery Manifolds
Control cabinets
(5) Dispensers
(5) Manifolds

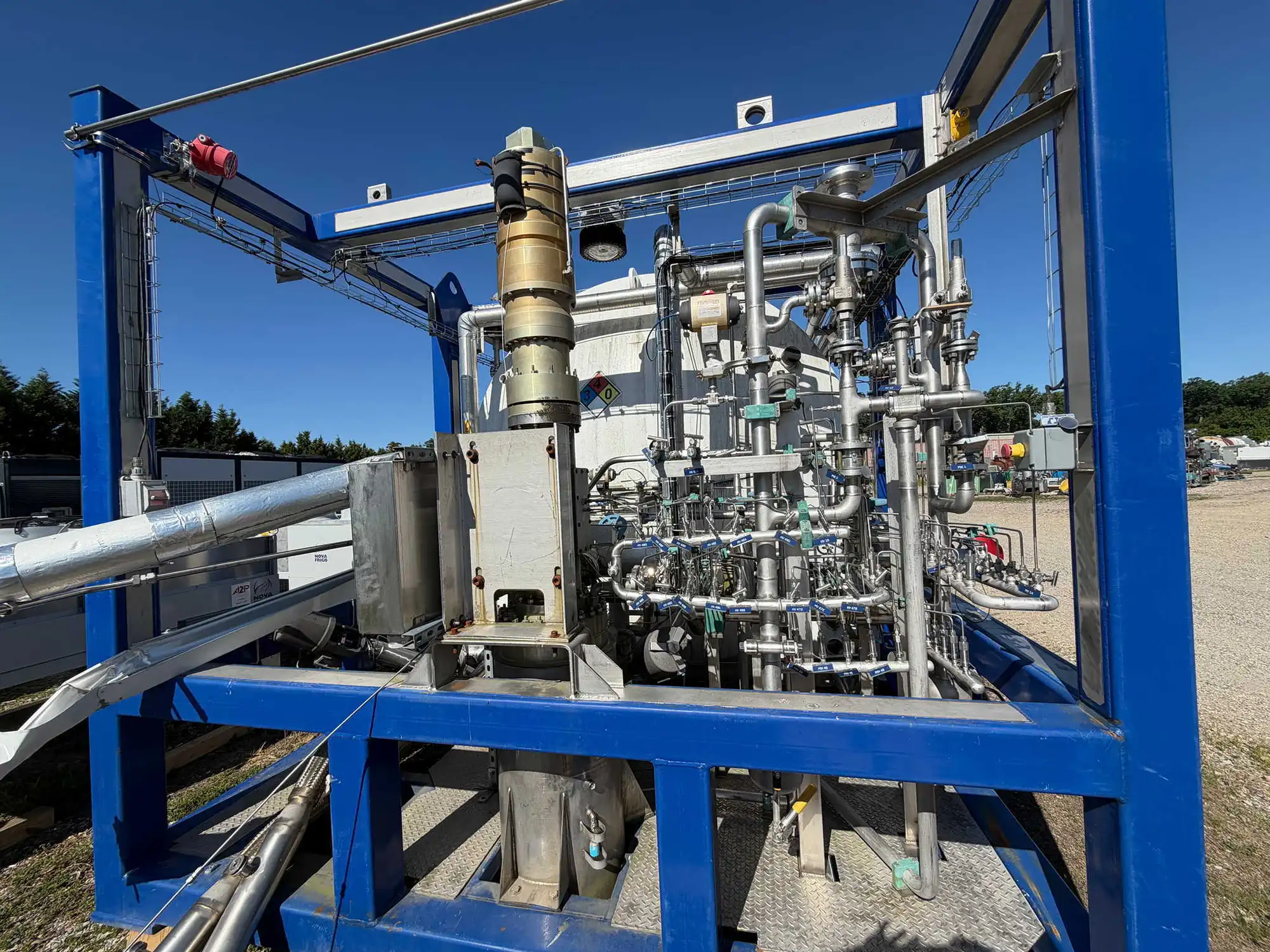

The station includes classified hydrogen process skids containing compression equipment, high-pressure buffer storage, and process equipment. Each classified skid is designed to receive hydrogen from buffer storage, compress it to high pressure, and supply the high-pressure buffers used for vehicle fueling. The classified skid package includes HOFER medium- and high-pressure hydrogen compressors and FABER high-pressure storage cylinders.

The non-classified skid contains the main electrical cabinets and hydraulic power equipment used to operate the compressor system. The hydraulic aggregate is supplied by HYDAC and supports the compressor operation in the classified skid.

The broader station package includes G2 cooling water units and chillers supplied by NOVA FRIGO, hydrogen heat exchangers supplied by RAVANAT, FIBA hydrogen ground storage, interconnection manifolds, hydrogen delivery manifolds, nitrogen manifolds, local delivery cabinet equipment, dispenser equipment, and related valve panels. The system also includes assorted hydrogen process components, vacuum-jacketed components, cable trays, and auxiliary equipment.

Safety features include hydrogen detectors, flame detectors, emergency shut-off buttons, process safety limits and parameters, classified electrical-area design considerations, and compliance-oriented design features for hydrogen vehicle fueling station service. The system is intended for installation as a complete hydrogen fueling station package with remote dispenser equipment, cooling and heat exchange equipment located near the dispenser, and supporting hydrogen, nitrogen, electrical, hydraulic, and control systems.

Major included components:

Air Liquide C100 / Generation 2 hydrogen fueling station equipment
G2 classified skid assemblies
G2 non-classified skid assemblies
HOFER hydrogen compressors
FABER high-pressure hydrogen storage cylinders
HYDAC hydraulic aggregate
NOVA FRIGO cooling water units
NOVA FRIGO chillers
RAVANAT hydrogen heat exchangers
FIBA hydrogen ground storage
Hydrogen delivery manifolds
Interconnection manifolds
Nitrogen manifolds
Local delivery cabinet
Dispenser equipment
Process valve panels and related piping
Vacuum-jacketed components
Cable trays and miscellaneous station support equipment
Safety systems including H2 detection, flame detection, and emergency shut-off controls

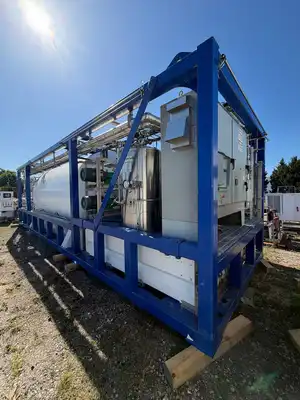

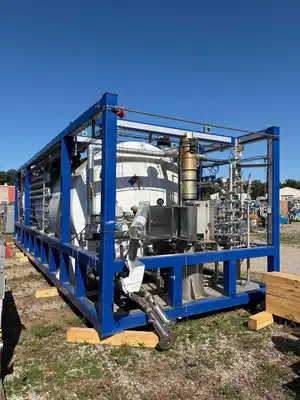

Used Chart Liquid Hydrogen Storage and Vaporization Module, 5,500 Gallon
Manufacturer: Chart Inc., New Prague, Minnesota, USA
Model HSH-5500 SC-150 cryogenic storage vessel
Built in 2019
Approximate liquid hydrogen storage capacity: 5,500 US gallons (20,800 liters)
Mounted in a transportable steel skid assembly
Vacuum-insulated cryogenic storage vessel
Designed for liquid hydrogen service
Includes integrated process piping, instrumentation, valves, and controls

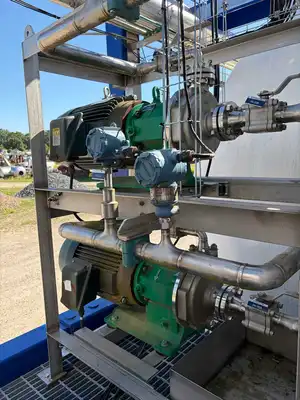

Equipped with dual Magnatex centrifugal cryogenic pumps

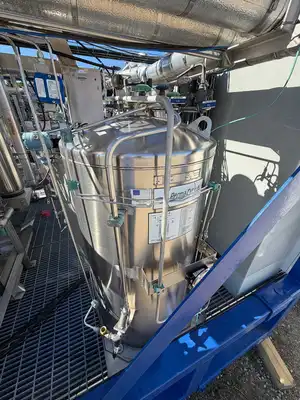

Includes Chart Perma-Cyl cryogenic pressure vessel
Includes process sump vessel and associated cryogenic piping
Integrated ambient vaporization coils mounted along skid sidewall
Stainless steel process construction throughout
Includes electrical control cabinet mounted on skid
Previously part of a hydrogen fueling station installation

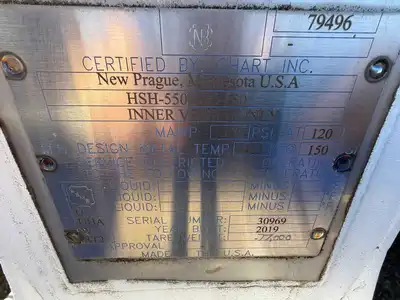

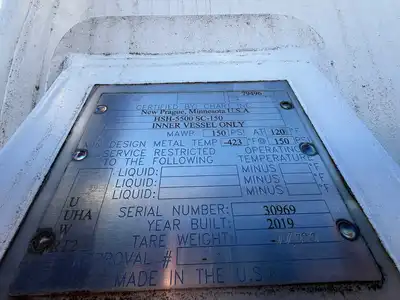

Tank Nameplate Details:
Manufacturer: Chart Inc.
Model: HSH-5500 SC-150
Serial Number: 30969
Year Built: 2019
MAWP: 150 PSI
Minimum Design Metal Temperature: -423°F (-253°C)
ASME Code Stamped
Approximate Tare Weight: 77,000 lbs (34,900 kg)

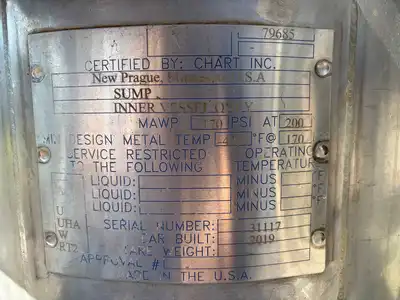

Process Sump Vessel:
Manufacturer: Chart Inc.
Serial Number: 31117
Year Built: 2019
MAWP: 170 PSI
Minimum Design Metal Temperature: -423°F
Cryogenic Pressure Vessel:
Manufacturer: Chart Inc.
Model: Perma-Cyl 450MP
Serial Number: 31915406
Year Built: 2019
MAWP: 250 PSI
MDMT: -320°F

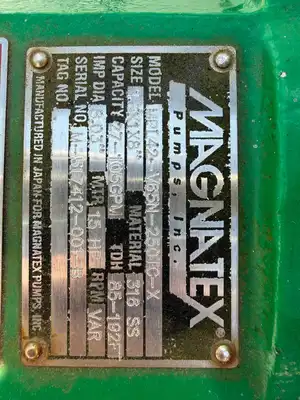

Cryogenic Pumps (2):
Manufacturer: Magnatex Pumps Inc.
Model: M12-165M-250TC-X
Size: 1" x 8"
Capacity: 7–105 GPM
Material: 316 Stainless Steel
Maximum Speed: 3,550 RPM

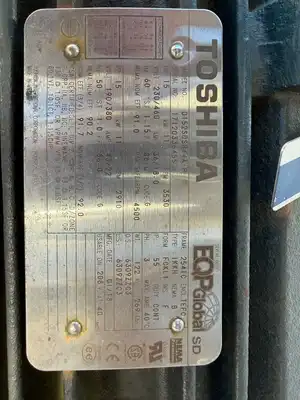

Pump Motors (2):
Manufacturer: Toshiba
Power: 15 HP (11 kW)
Voltage: 230/460 V
Frequency: 60 Hz
Speed: 3,550 RPM
NEMA Premium Efficiency

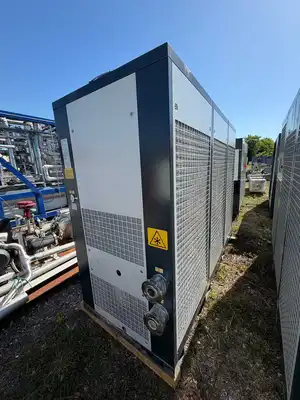

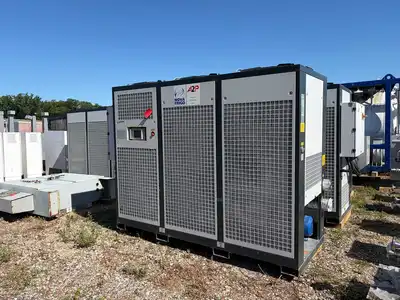

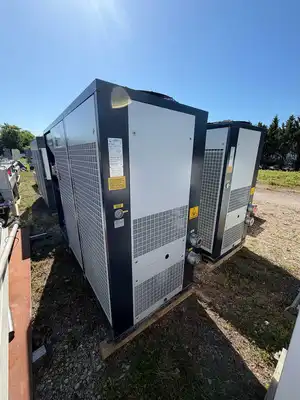

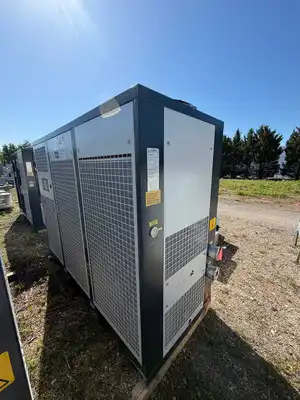

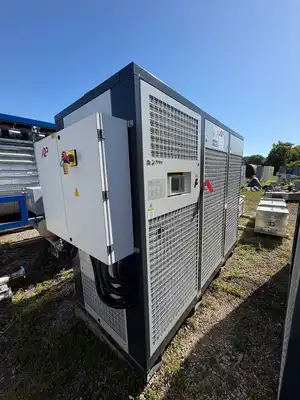

(5) Used Nova Frigo RS-200 Industrial Chiller
Manufacturer: Nova Frigo Engineering S.r.l.
Model: RS-200 KEY-UL
Quantity Available: 5 Units
Year: 2015-2016

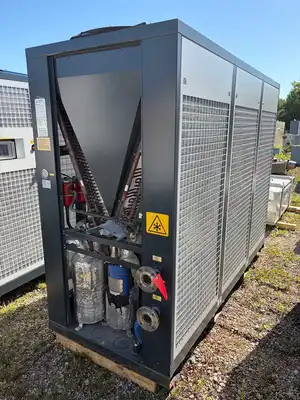

Industrial air-cooled chiller designed for process cooling service. Originally installed as part of a hydrogen fueling station cooling system. Unit features packaged refrigeration system with integrated air-cooled condensers, multiple axial cooling fans, control panel, and skid-mounted construction.

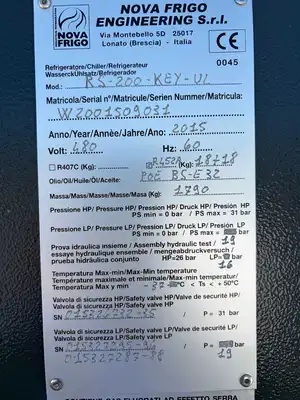

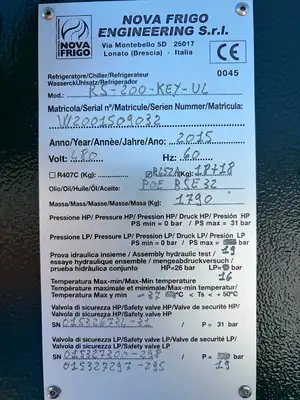

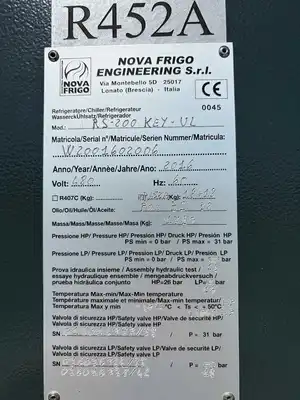

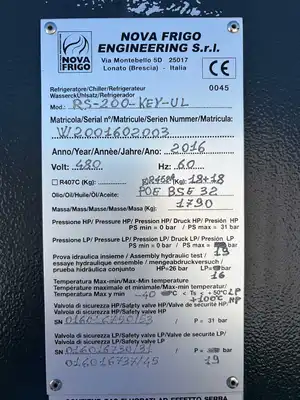

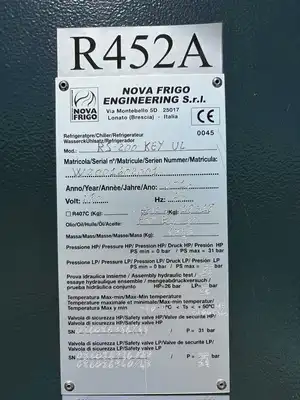

Nameplate Details:
Manufacturer: Nova Frigo Engineering S.r.l.
Model: RS-200 KEY-UL
Voltage: 480V / 3PH / 60Hz
Refrigerant: R452A
Year: 2015-2016
Designed for outdoor installation
Air-cooled construction
Originally used for hydrogen process cooling

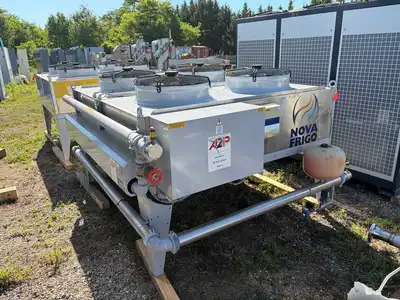

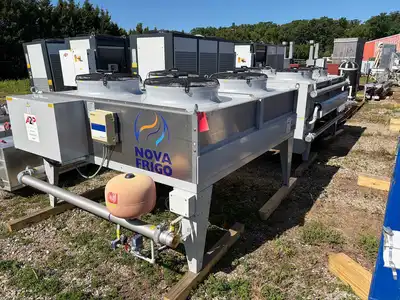

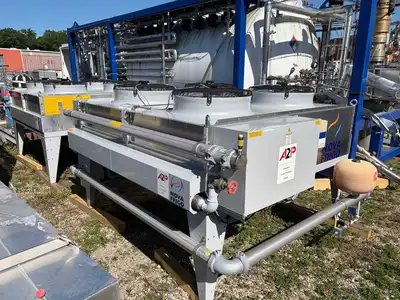

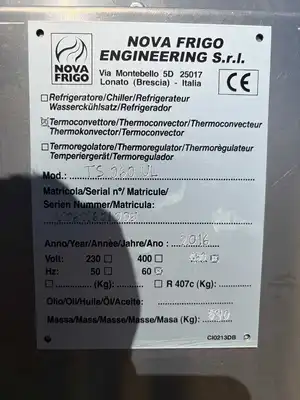

(2) Used Nova Frigo TS060 Dry Cooler / Air-Cooled Condenser
Manufacturer: Nova Frigo Engineering S.r.l.
Model: TS060 UL (TS60UL-02)
Quantity Available: 2 Units
Year: 2015-2016
Air-cooled dry cooler / thermoconvector designed for heat rejection in industrial cooling systems. Originally installed in conjunction with Nova Frigo chillers and hydrogen process heat exchangers. Stainless steel construction with multiple axial fans and process fluid piping manifold.
Nameplate Details:
Manufacturer: Nova Frigo Engineering S.r.l.
Model: TS060 UL / TS60UL-02
Voltage: 480V / 3PH / 60Hz
Hydraulic Test Pressure: 6 bar (87 psi)
Operating Temperature Range: -20°C to +50°C (-4°F to +122°F)
Approximate Weight: 590 kg (1,300 lbs)
Multi-fan air-cooled design
Outdoor installation
Originally used in a hydrogen fueling station cooling system
Heat Exchanger Coil Details:
Coil Manufacturer: Delta Coils
Refrigerant: R452A
Coil Operating Pressure: up to 435 psi
Coil Temperature Range: -20°C to +120°C (-4°F to +248°F)
These units were part of an integrated hydrogen fueling station cooling package consisting of LH₂ storage, hydrogen heat exchangers, chillers, dry coolers, and dispensing equipment.

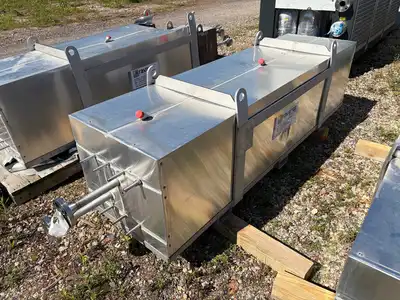

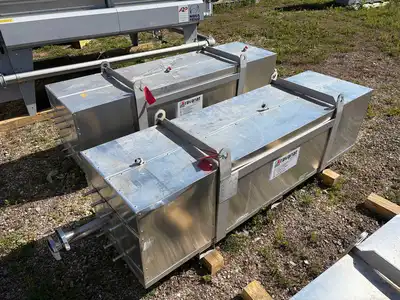

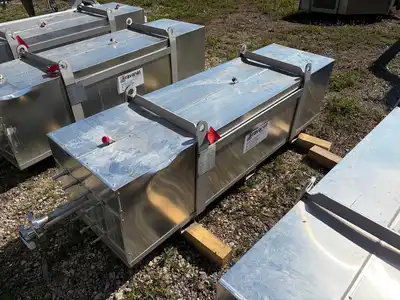

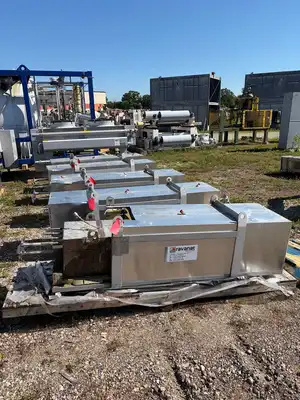

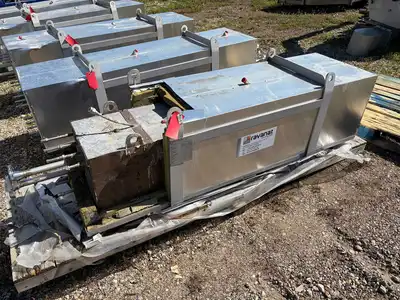

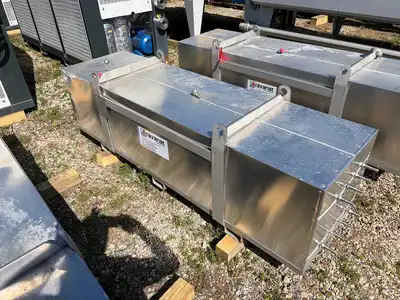

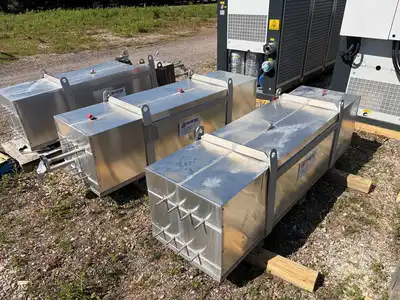

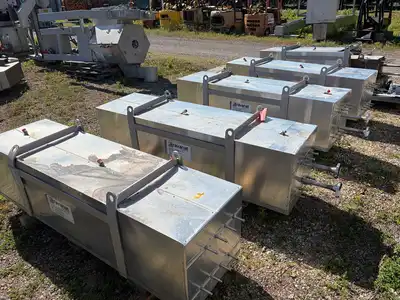

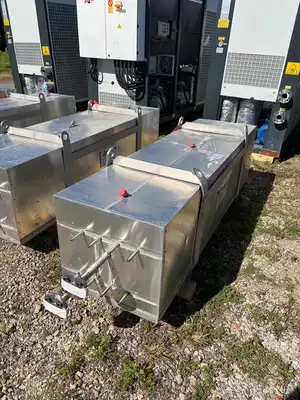

(5) Used Ravanat High-Pressure Hydrogen tube-in-tube (coaxial) Heat Exchangers
Manufacturer: Ravanat Chaudronnerie
Quantity Available: 5 Units
Years: 2015-2016
High-pressure hydrogen heat exchanger designed for hydrogen fueling station service. Constructed with a 316L stainless steel hydrogen circuit and a 304L stainless steel cooling fluid circuit. Designed for extremely high-pressure hydrogen applications up to 975 bar. Originally installed as part of a complete liquid hydrogen storage, vaporization, cooling, and dispensing system.

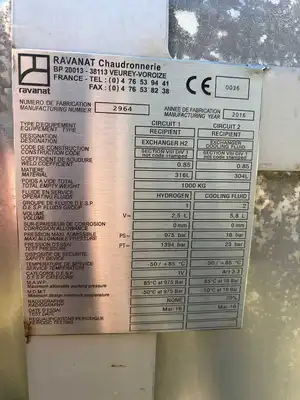

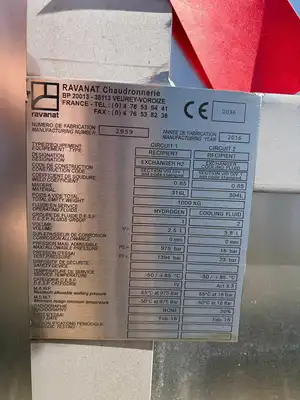

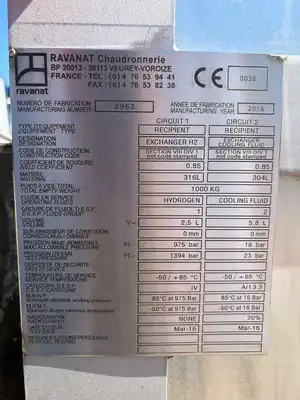

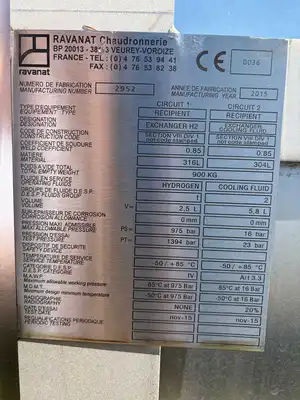

Nameplate Details:
Manufacturer: Ravanat Chaudronnerie (France)
Year: 2015-2016
Quantity Available: 5 Units
Hydrogen Circuit Material: 316L Stainless Steel
Cooling Circuit Material: 304L Stainless Steel
Hydrogen Side Design Pressure: 975 bar (14,142 psi)
Hydrogen Side Test Pressure: 1,394 bar (20,219 psi)
Cooling Fluid Side Design Pressure: 16 bar (232 psi)
Cooling Fluid Side Test Pressure: 23 bar (334 psi)
Hydrogen Side Internal Volume: 2.5 liters
Cooling Fluid Side Internal Volume: 5.8 liters
Operating Temperature Range: -50°C to +85°C (-58°F to +185°F)
Approximate Empty Weight: 900-1,000 kg (1,984-2,205 lbs) each
CE Marked
Originally used in hydrogen fueling station service
Available Units:
Manufacturing No. 2952 (2015)
Manufacturing No. 2959 (2016)
Manufacturing No. 2961 (2016)
Manufacturing No. 2962 (2016)
Manufacturing No. 2964 (2016)
These exchangers were engineered specifically for high-pressure hydrogen cooling and represent a rare opportunity to acquire equipment designed for hydrogen service at pressures approaching 1,000 bar. Suitable for hydrogen fueling, compression, storage, testing, research, and other high-pressure hydrogen applications.

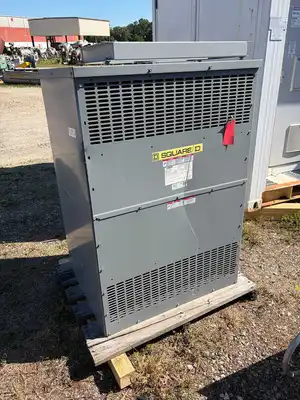

Used Square D Dry-Type Transformer, 300 kVA
Manufacturer: Square D Company (Schneider Electric)
Model: EX300T212H
Quantity Available: 1 Unit
Year: 2015
Dry-type power transformer designed for industrial and commercial power distribution applications. Previously installed as part of a hydrogen fueling station and used to supply power to refrigeration equipment, process cooling systems, controls, and auxiliary equipment.
Nameplate Details:
Manufacturer: Square D Company
Model: EX300T212H
Capacity: 300 kVA
Frequency: 60 Hz
Phase: 3 Phase
Primary Voltage: 208 V
Secondary Voltage: 480Y/277 V
Temperature Rise: 150°C
Insulation Class: 220°C
Cooling: AA (Air Cooled)
Weight: 1,973 lbs (895 kg)
Year Built: 2015
Made in USA
The transformer was originally installed as part of a modern hydrogen fueling station infrastructure project and was used to step up incoming 208V utility power to 480Y/277V distribution voltage for process equipment and controls.

Overall, this is a multi-component Air Liquide hydrogen refueling station package consisting of skid-mounted process, compression, storage, cooling, control, manifold, and dispensing-support equipment for vehicle hydrogen fueling applications.
