USED 2005 HAAS MDC-500
USD $14,500.00
Overview
Description

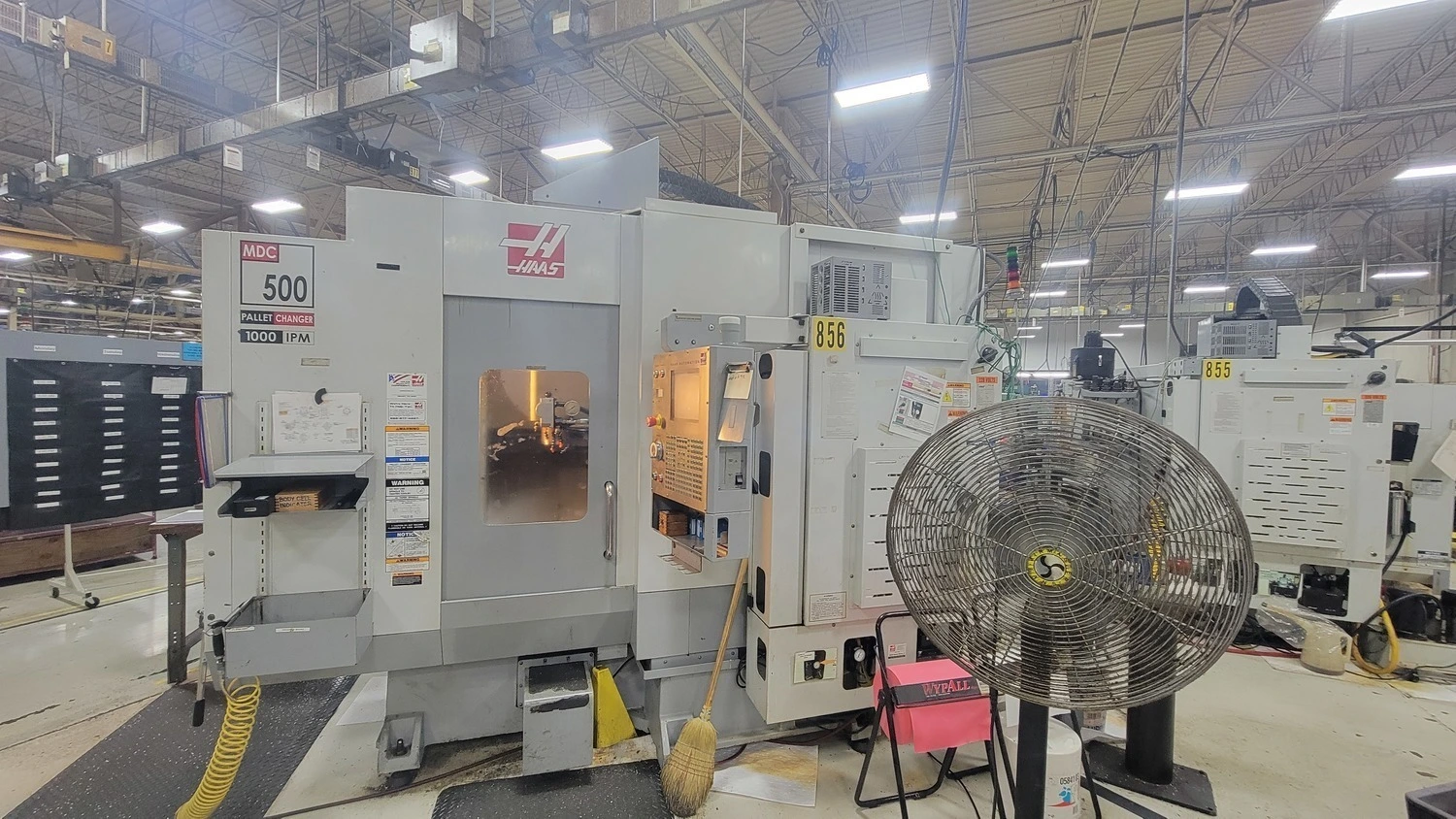

2005 Haas MDC-500, a used vertical machining center from reputable manufacturer HAAS. It boasts an X, Y and Z axis range of 20", 14" and 20" respectively along with 20 hp power. With an impressive RPM of 7,500, an automatic tool changer capacity of 24, and a CAT-40 taper, it's an asset to any operation. Its table measures 12" W and 20" L, and it's designed with 3 axis. Plus, it comes equipped with a pallet changer and a 1000 IPM for optimized productivity.
Specifications
| X | 20" | 508 mm |
|---|---|---|
| Y | 14" | 355.6 mm |
| Z | 20" | 508 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 7,500 RPM | 7,500 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 12" | 304.8 mm |
| Table-L | 20" | 508 mm |
| # Axis | 3 | 3 |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 130" x 134" x 113" H | 130" x 134" x 113" H |
| Weight | 16,000 lbs. | 16,000 lbs. |
X 20"
Y 14"
Z 20"
POWER 20 hp
RPM 7,500 RPM
# ATC 24
TAPER CAT-40
TABLE-W 12"
TABLE-L 20"
# AXIS 3
CONTROL CNC (Haas)
DIMENSIONS 130" X 134" X 113"
WEIGHT 16,000lb
Equipped With
Pallet Changer
1000 IPM
Chip Auger, Coolant system, 24 Swing arm Tool Changer, Rigid tapping,
