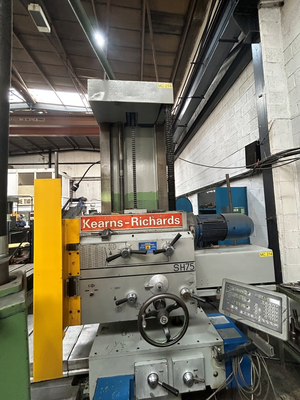

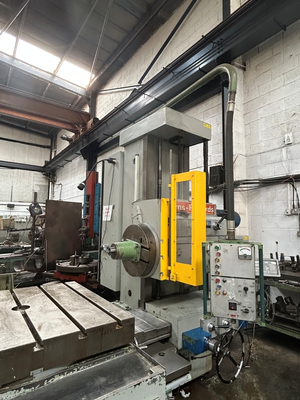

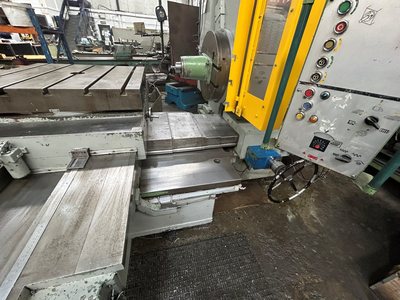

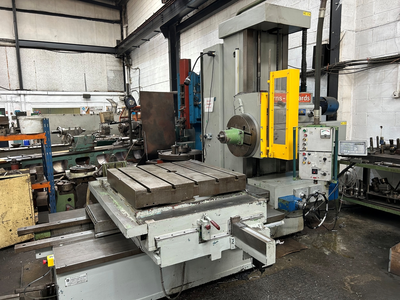

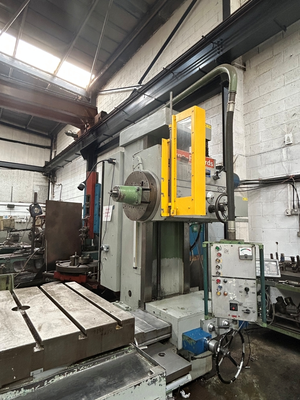

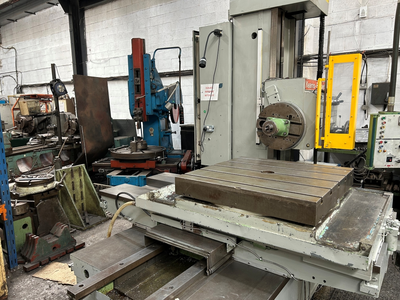

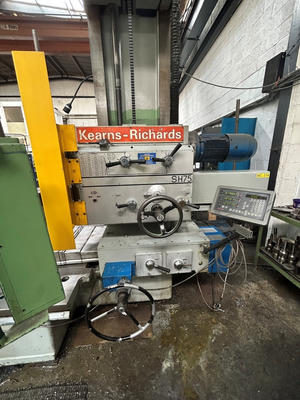

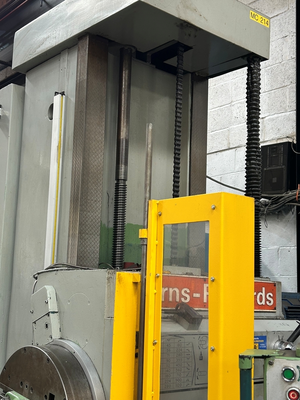

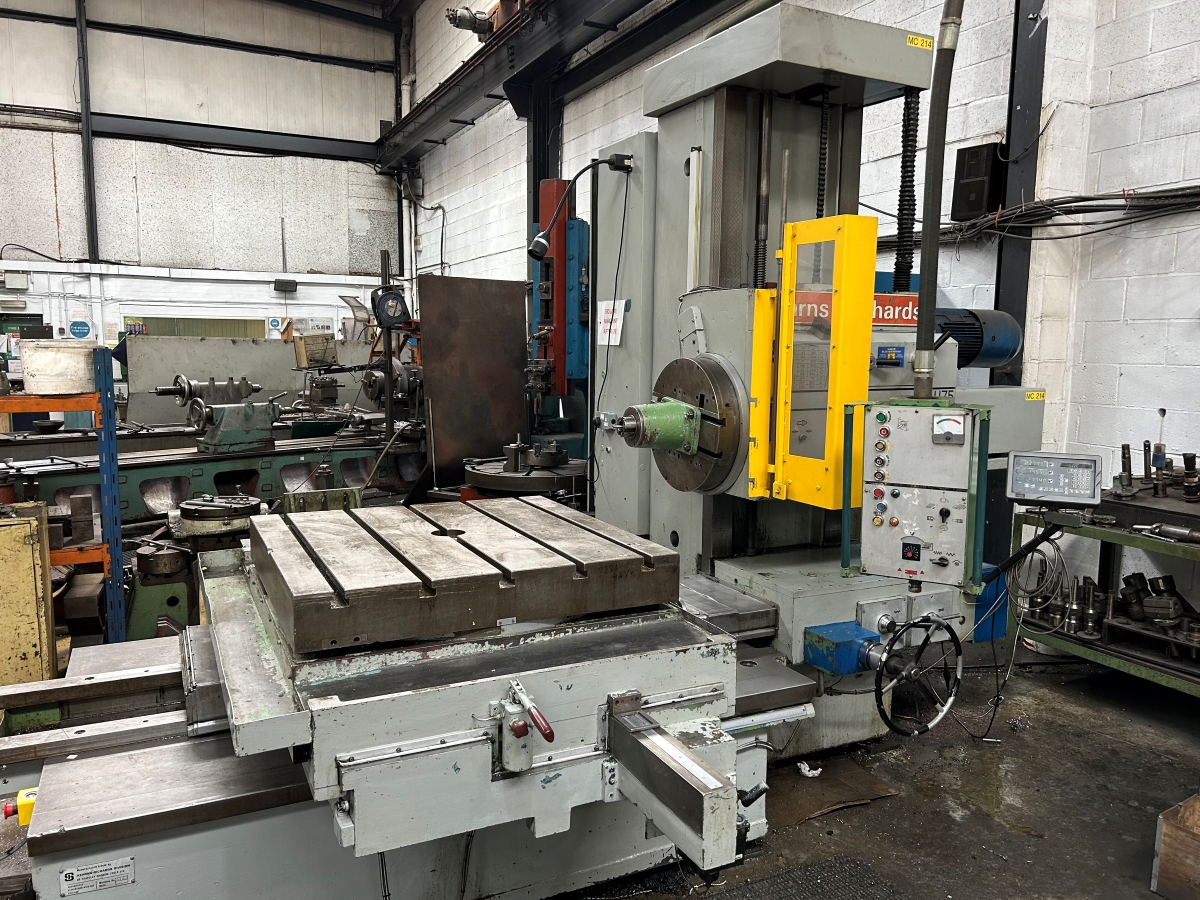

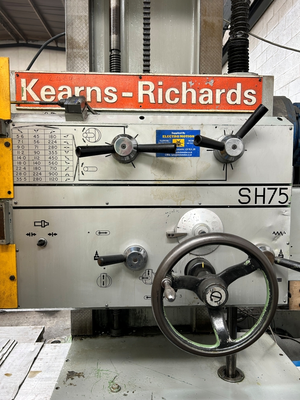

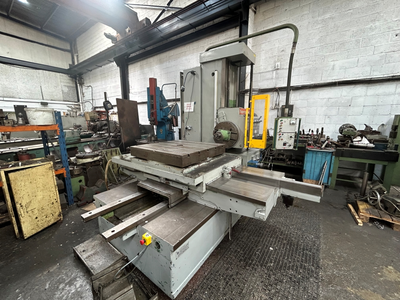

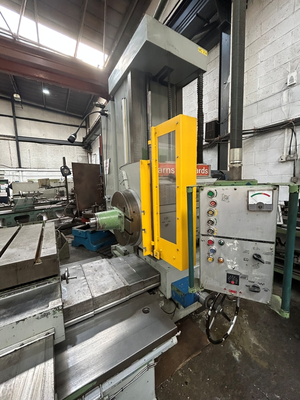

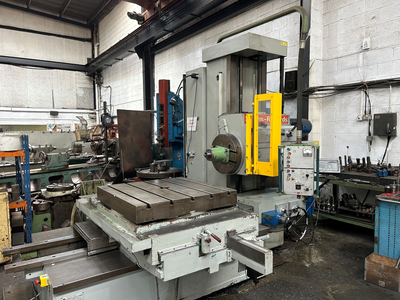

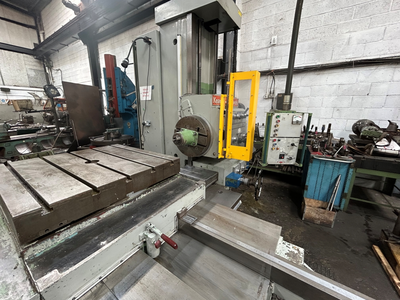

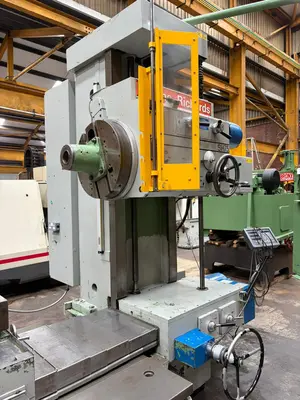

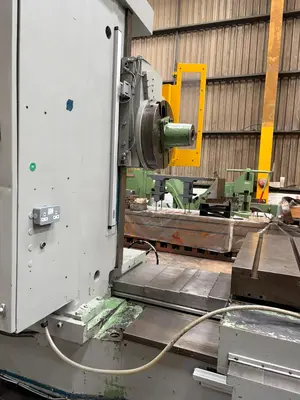

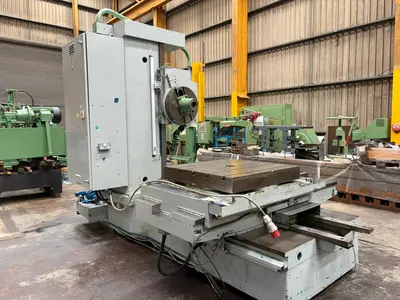

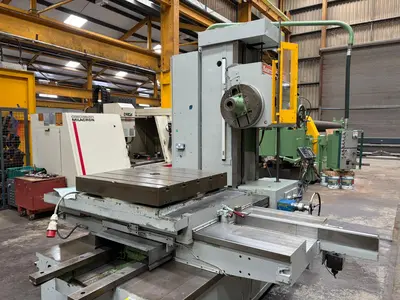

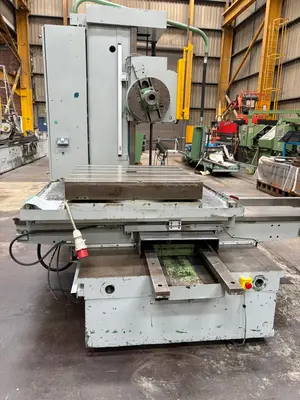

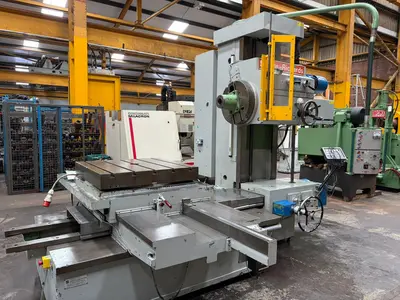

Kearns Richards SH75


Capacities:

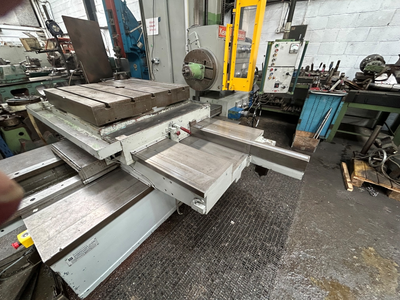

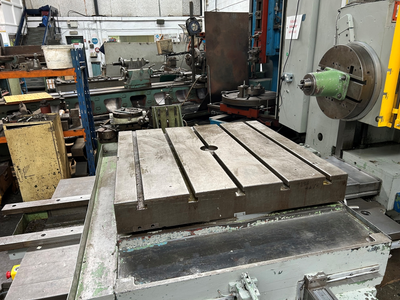

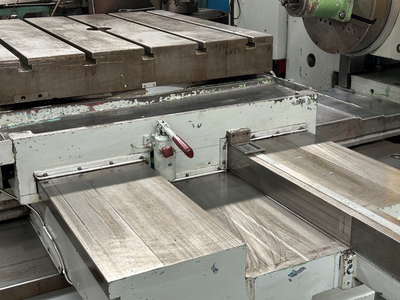

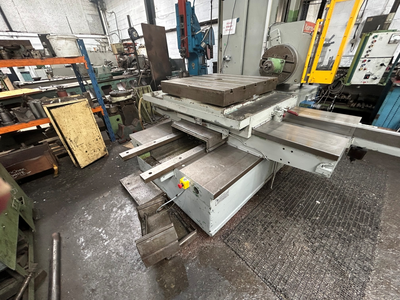

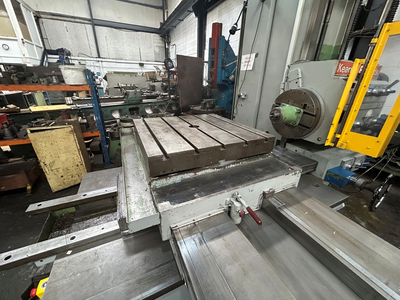

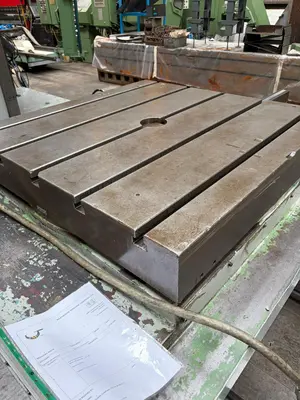

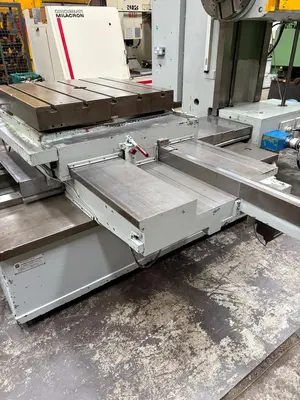

Rotary Table Size:          1000 x 1000mm
Maximum Table Load:   2000kg
Vertical Traverse:           1000mm
Cross Traverse:              1245mm
Longitudinal Traverse:    1000mm
Spindle Diameter:           75mm
Spindle Traverse:           508mm
Spindle Speeds:              5.6- 1120 rpm
Spindle Taper:                40 int

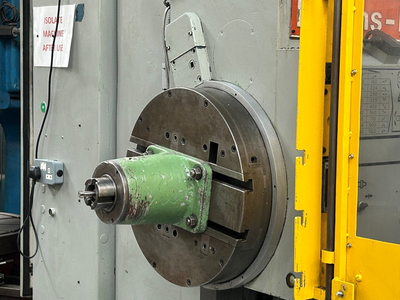

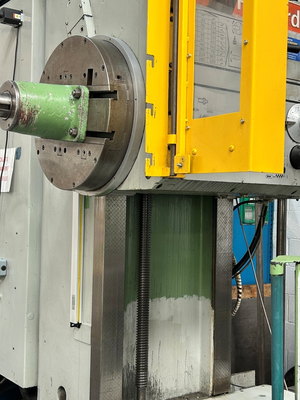

Facing Head Diameter:   508mm
Facing Slide Traverse:    180mm
Facing Head Speeds:      5.6 – 280rpm
Feeds, X, Y & Z:             0.75 – 2500mm/min
Feeds, Spindle & Face:   0.25 – 830mm

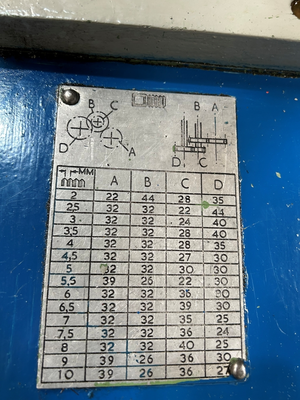

Screw Cutting to Table:  2 – 10mm Pitch, 4 – 16 TPI

Motor:        7.5kw
Electrics:     415v, 3ph, 50 Cycles

Complete with:

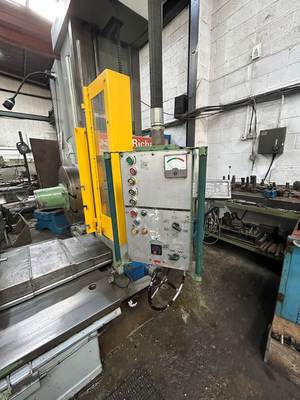

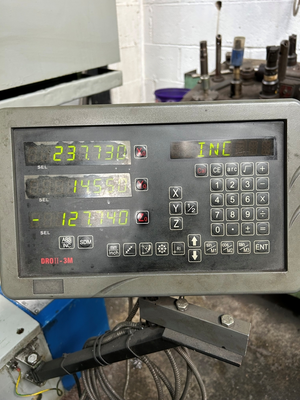

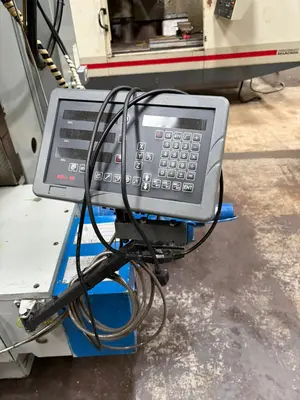

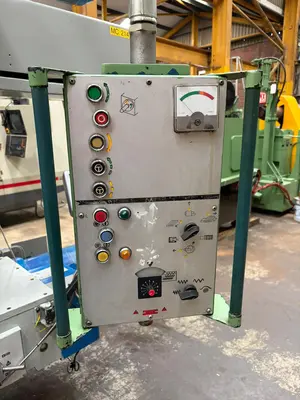

Screw Cutting, 3 Axis DRO, Steel Telescopic Guards, Operator Safety Guard, Pendent Control, Power Draw Bar, Safety Brake, Facing Head Lock,
Spindle Support Bearing, Facing Slide Tool Holder
Selection of Spindle Tool Holders, Lovo Light

Approximate Dimensions:        4200 x 2940 x 2950mm
Approximate Weight:               10,500kg
