USED 2020 HAAS GM-2
Overview

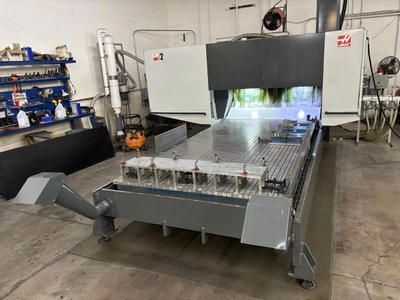

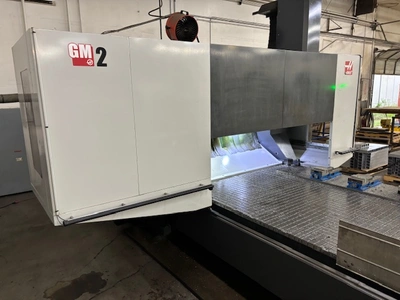

The Haas GM-2 CNC Vertical Gantry Mill is a large-format, high-speed CNC machining center designed for oversized workpieces and efficient material removal. Built on a rigid gantry-style platform, the GM-2 is ideal for machining aluminum, plastics, composites, and light metals requiring large travel capacity and consistent accuracy.
Specs

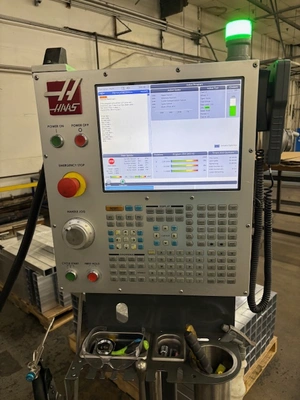

Control:: Haas Next Generation CNC Control
Table Size:: 144" x 72" x 1"
Max Table Load:: 6,000 Lbs.
Machine Travels:: 145" x 87.5" x 22"
Distance Spindle to Table:: 4" - 26"
Width Between Columns:: 75"
Spindle Taper:: CT 40\
Spindle Speeds:: 15,000 Max RPM
Cutting Feed Rate X/Y/Z:: Max 472 IPM
Rapid Traverse Rate X/Y/Z:: 472 / 1,889 / 1,181 IPM
Tool Changer Capacity:: 30 Station Automatic Tool Changer
Max Tool Weight:: 12 Lbs.
Max Tool Diameter/Length:: 2.5"/3.5" Diameter x 11" Length
Spindle Drive Motor:: 30 HP Vector Spindle Drive
Spindle Drive System:: Inline Direct-Drive
Equipped With

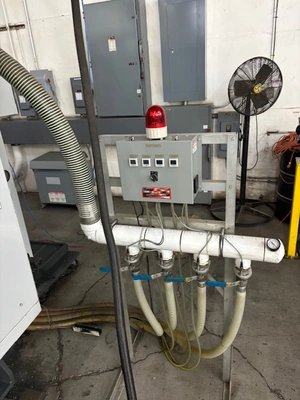

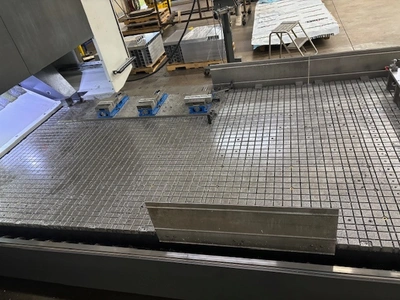

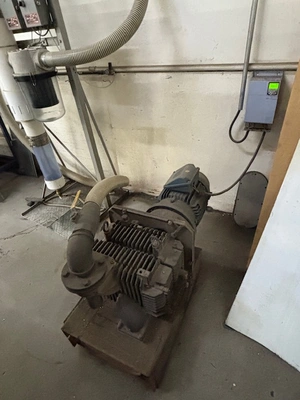

Haas Next Generation CNC Control, 15,000 Max RPM Spindle Speed, 30 Station Automatic Tool Changer, Vacuum Table and Vacuum Pump System, 4th Axis Brushless Drive, Thru-Spindle Coolant (300 PSI), Thru-Tool Air Blast, Haas Wireless Probing System with Renishaw Tool and Parts Probes, High Speed Machining, 1GB Memory, Chip Auger, Cabinet Cooler, Ethernet, Second Home Position, Remote Jog Handwheel, Rigid Tapping, Wifi Connect, Auto Air Gun, Flood Coolant System, Coordinate Rotation and Scaling, Machine will Come with Original Aluminum Table in addition to the Vacuum Table.
