USED 2020 FANUC ArcMate 120iD + R-30iB PLUS + TPS 400i
Description

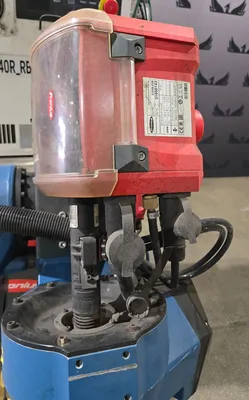

This listing is for a USED Fanuc Arc Mate 120iD complete system with R-30iB Plus controller, iPendant teach pendant, and Fronius TPS 400i weld package. The setup brings together articulated robot motion and arc welding output, enabling coordinated weld execution with integrated control and power delivery across the system components.
Specifications
| Dimensions | 90x48x80 | 90x48x80 |
|---|---|---|
| Weight | 1300lbs | 1300lbs |

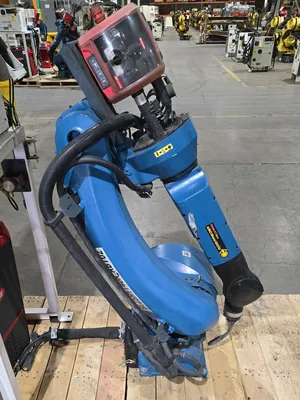

Robot Manufacturer: Fanuc

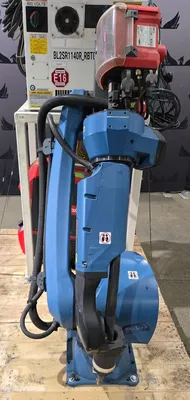

Robot Model: Arc Mate 120iD
Type: A05B-1228-B201
Condition: USED
Hours: 22671
YOM: 2020
Robot Serial Number: R20Z20241
Robot Weight: 250 kg

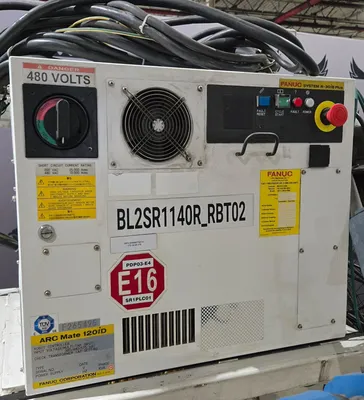

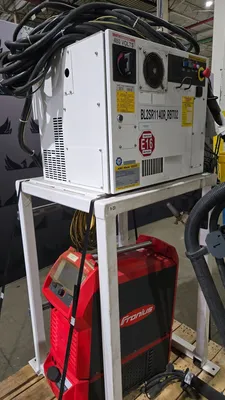

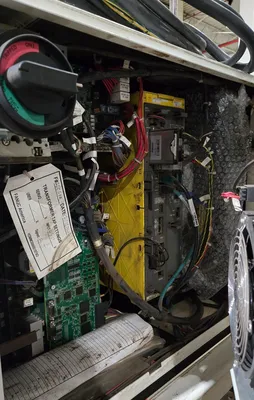

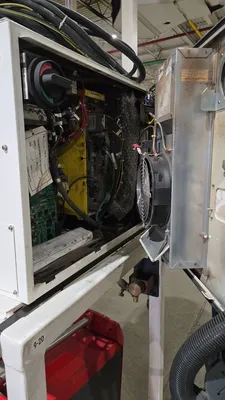

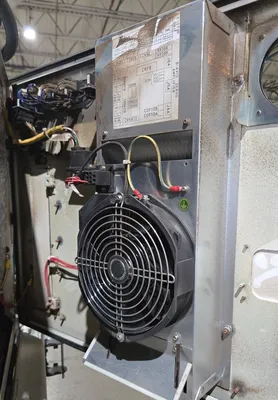

Controller Manufacturer: Fanuc

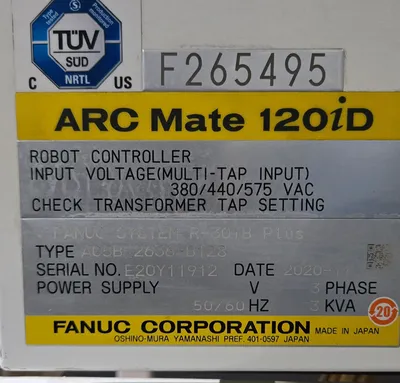

Controller Model: R-30iB Plus
Controller Type: A05B-2636-B128
Controller Serial Number: E20Y11912
Controller Date: 2020-11
Input Voltage: 380 / 440 / 575 VAC
Frequency: 50 / 60 Hz
Phase: 3 Phase
Power Rating: 3 kVA

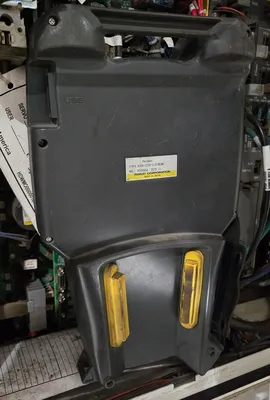

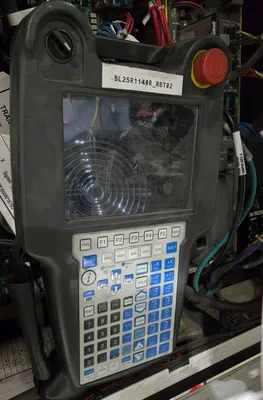

Teach Pendant:
Model: iPendant
Type: A05B-2256-C101#EAW
Serial Number: P006654
Date: 2020-11

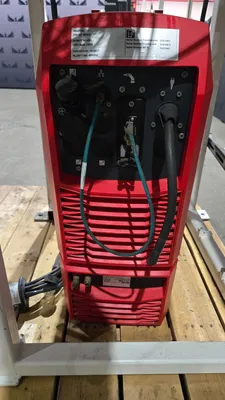

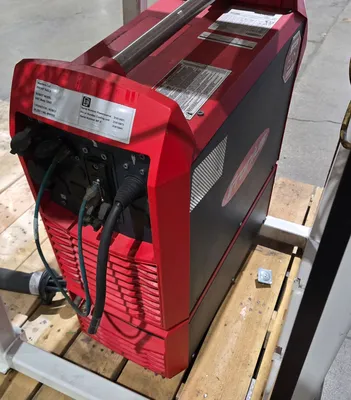

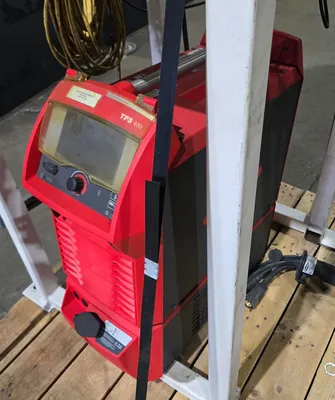

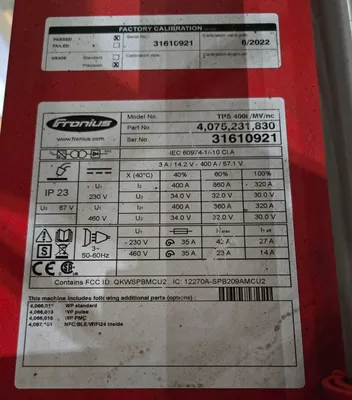

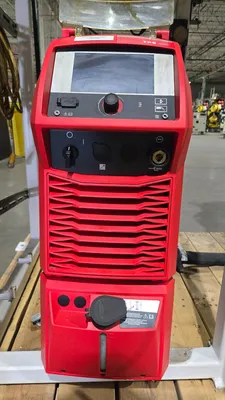

Welding Power Source Manufacturer: Fronius
Model: TPS 400i / MV / nc
Part Number: 4,075,231,830
Serial Number: 31610921
Welding Output:
Voltage Range: 14.2 V – 57.1 V
Max Output Current: 400 A
Duty Cycle:
40%: 400 A
60%: 360 A
100%: 320 A
Input Requirements (Welder):
230 V: 35 A
460 V: 35 A
Protection Rating: IP23

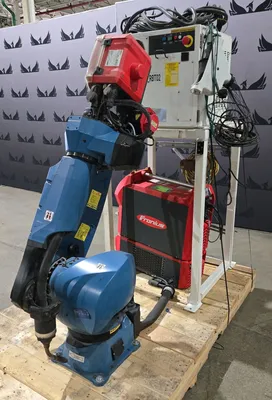

System Configuration:

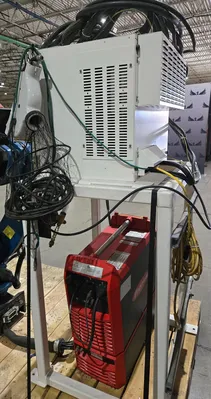

Robot + Controller + Teach Pendant + Welding Power Supply

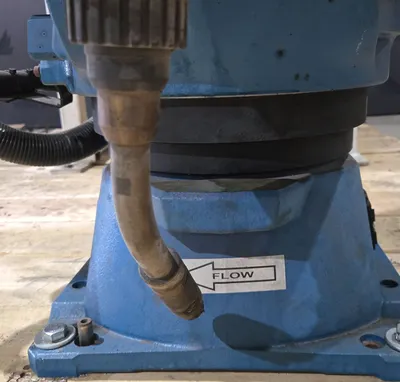

Mounting: Floor Mount Base
