USED 2020 FANUC ArcMate 120iD + R-30iB PLUS + TPS 400i
Description

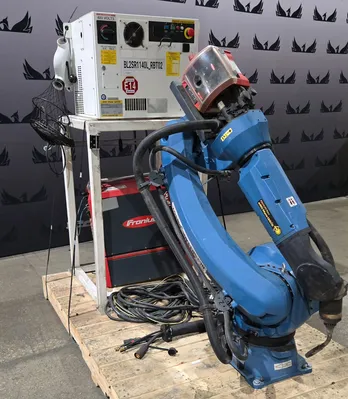

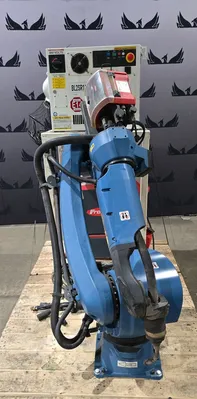

This listing is for a USED Fanuc Arc Mate 120iD complete system including an R-30iB Plus controller, iPendant teach pendant, and Fronius TPS 400i weld system. The setup delivers coordinated robotic motion with integrated arc welding output, combining robot control, welding power, and process support equipment for automated welding operations.
Specifications
| Dimensions | 90x48x71 | 90x48x71 |
|---|---|---|
| Weight | 1308lbs | 1308lbs |

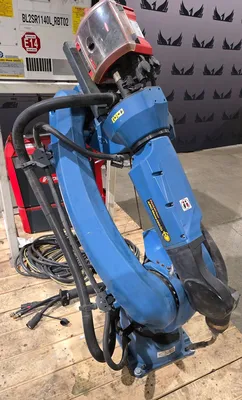

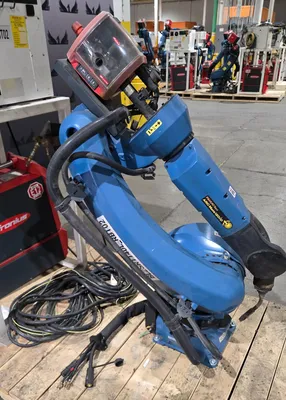

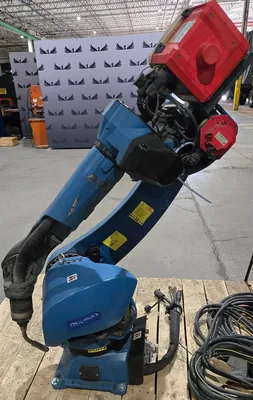

Robot Manufacturer: Fanuc
Robot Model: Arc Mate 120iD
Type: A05B-1228-B201
Condition: USED
Hours: 22556
YOM: 2020
Robot Serial Number: R20Z20245
Robot Weight: 250 kg

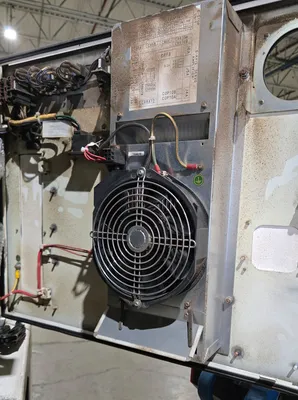

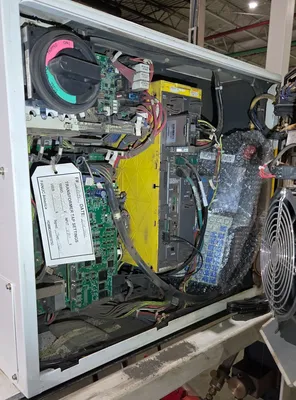

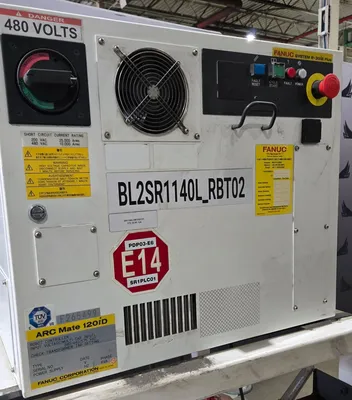

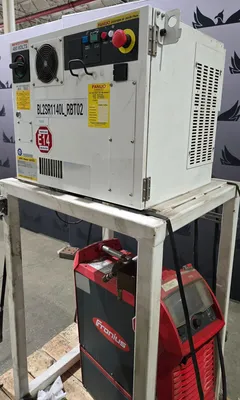

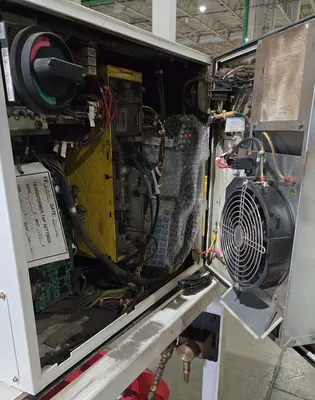

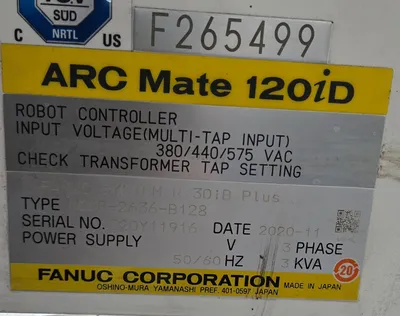

Controller Manufacturer: Fanuc
Controller Model: R-30iB Plus
Controller Type: A05B-2636-B128
Controller Serial Number: C20Y11916
Controller Date: 2020-11
Input Voltage: 380 / 440 / 575 VAC
Frequency: 50 / 60 Hz
Phase: 3 Phase
Power Rating: 3 kVA

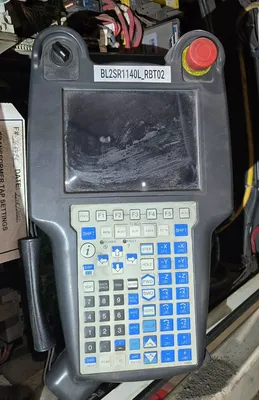

Teach Pendant:
Model: iPendant
Type: A05B-2256-C101#EAW
Serial Number: P006709
Date: 2020-11

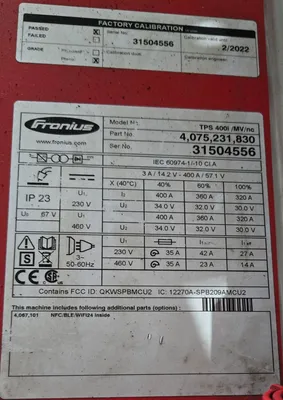

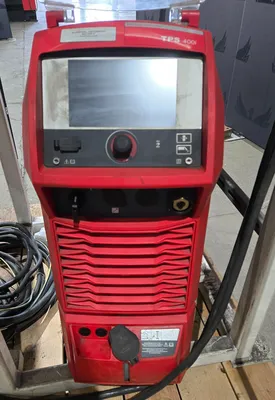

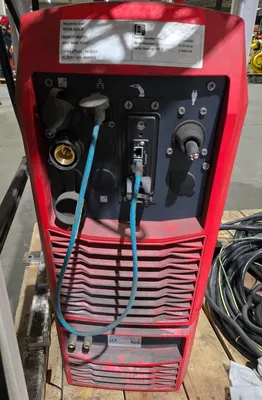

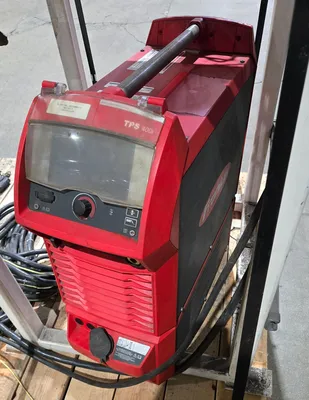

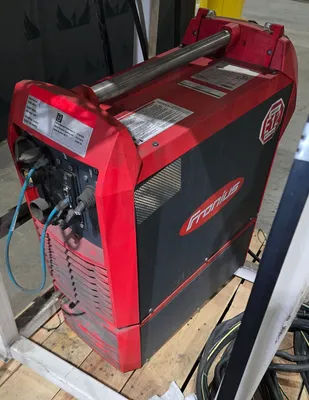

Welding Power Source Manufacturer: Fronius
Model: TPS 400i / MV / nc
Part Number: 4,075,231,830
Serial Number: 31504556
Welding Output:
Voltage Range: 14.2 V – 57.1 V
Max Output Current: 400 A
Duty Cycle:
40%: 400 A
60%: 360 A
100%: 320 A
Input Requirements (Welder):
230 V: 35 A
460 V: 35 A
Protection Rating: IP23

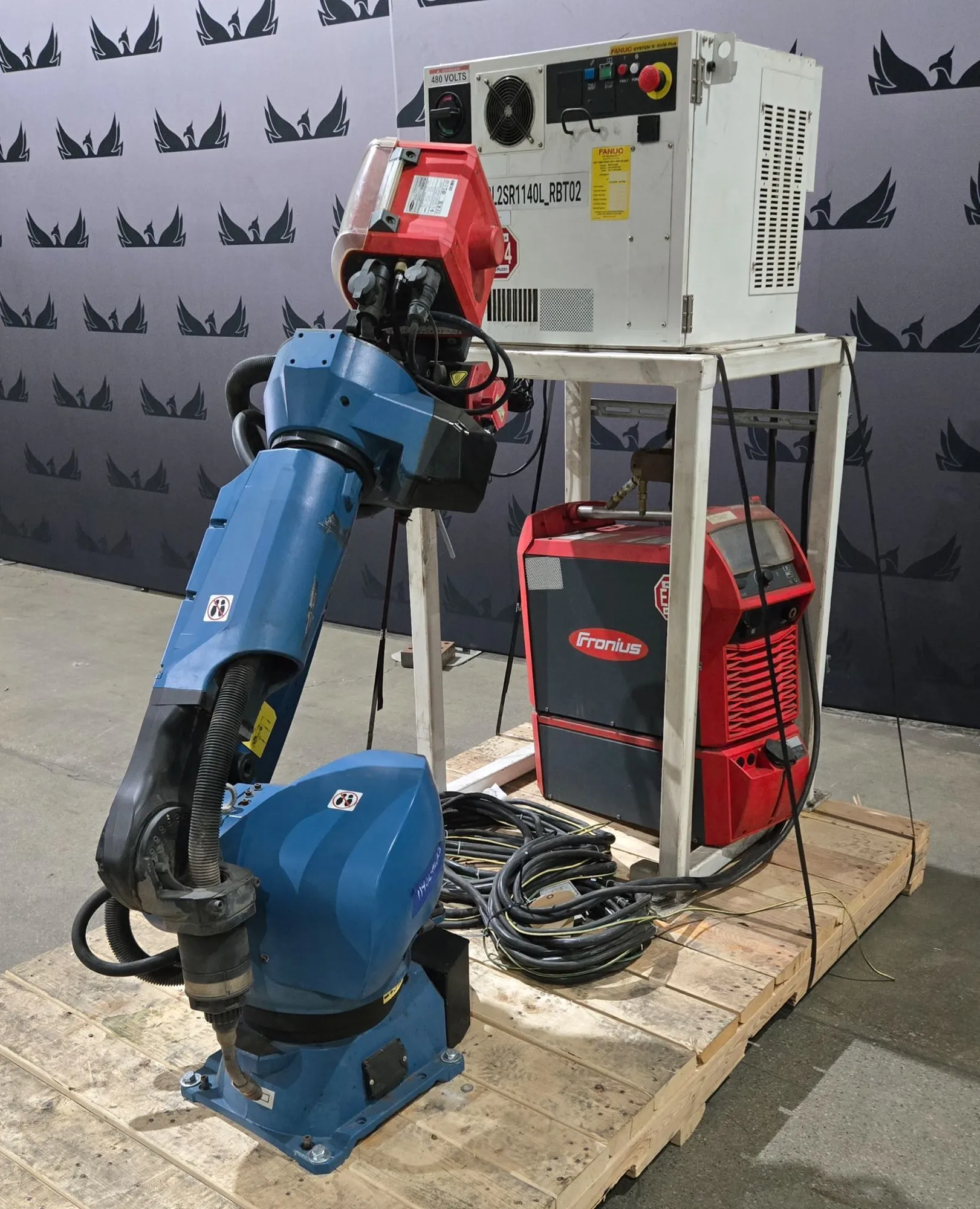

System Configuration:
Robot + Controller + Teach Pendant + Welding Power Supply
Mounting: Floor Mount Robot Base
