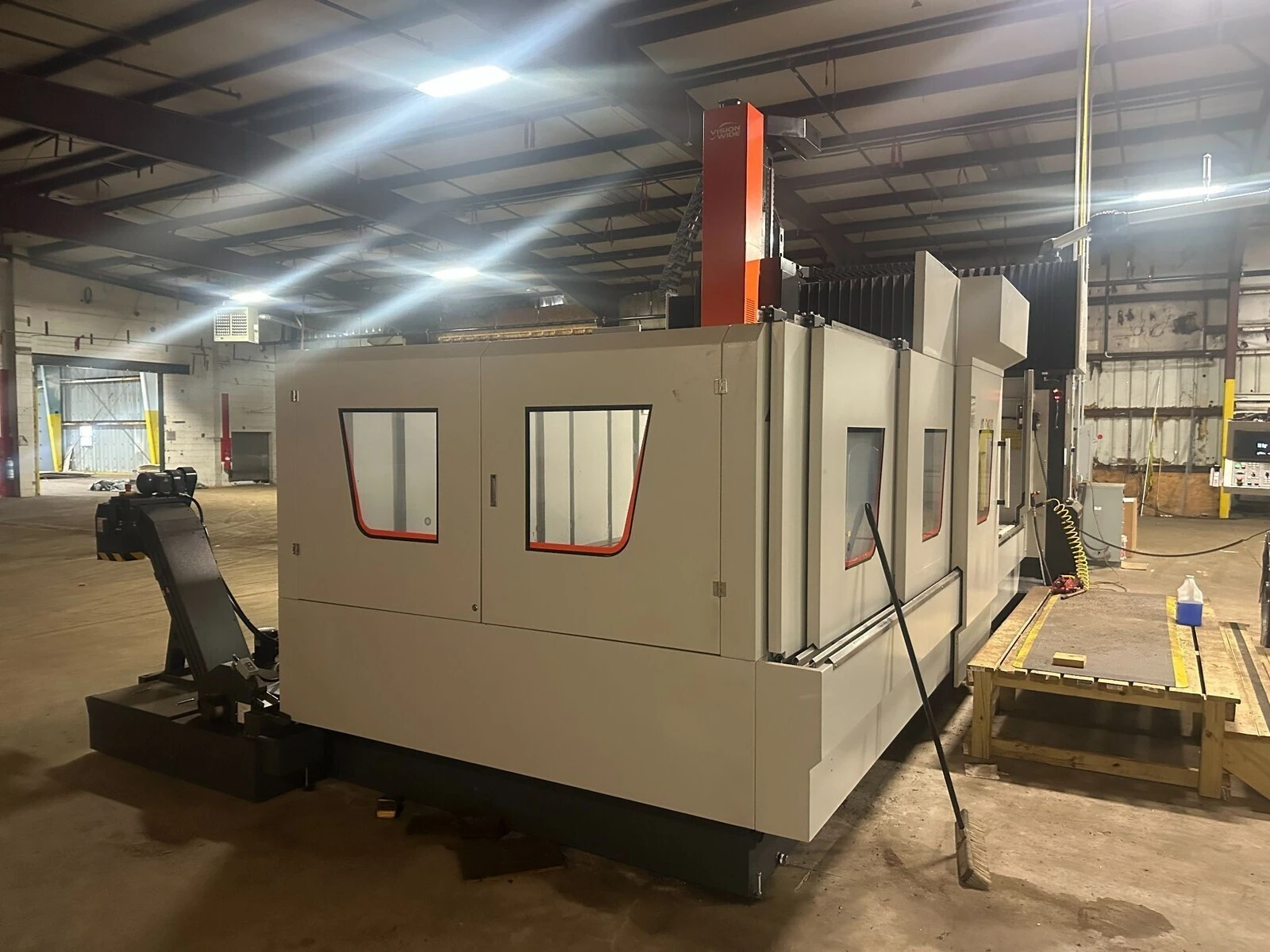

USED 2023 VISION SM4122
Description
Used Gantry Machining Center with 40 hours of use. Features Fanuc OiMF CNC, Renishaw RTS/RMP40, 300 PSI coolant, and more. Offers a large table capacity with 35 hp spindle and 6,000 RPM speed.
Specifications
| X | 86.7" | 2,202.2 mm |
|---|---|---|
| Y | 161.4" | 4,099.6 mm |
| Z | 40" | 1,016 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT 50 | CAT 50 |
| Table-W | 86" | 2,184.4 mm |
| Table-L | 161" | 4,089.4 mm |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 455" x 205" x 170" | 455" x 205" x 170" |
| Weight | 70,400 lbs | 70,400 lbs |
# Axis 3
Table-L 161"
Table-W 86"
Max Table Load Capacity 28,600 lb
X-Axis (Longitudinal Travel) 86.7"
Y-Axis (Cross Travel)161.4"
Z-Axis (Vertical Travel) 40"
X-Axis Rapid Traverse Rate 787 in/min.
Y-Axis Rapid Traverse Rate 787 in/min.
Z-Axis Rapid Traverse Rate 590 in/min.
Spindle Power 35 hp
Max Spindle Speed 6,000 RPM
Spindle Taper CAT 50
Automatic Tool Changer Capacity (ATC) 40
Machine Hours 40
Weight 70,400 lbs
Dimensions 455" x 205" x 170"
Equipped With
Fanuc OiMF CNC Control, IGB Data Server, Renishaw RTS/RMP40 Probing System, 300 PSI Coolant Through Spindle, Through Spindle Air Blast, Dual Augers and Chip Conveyor, Box Ways. Machine has 40 Cutting Hours!
