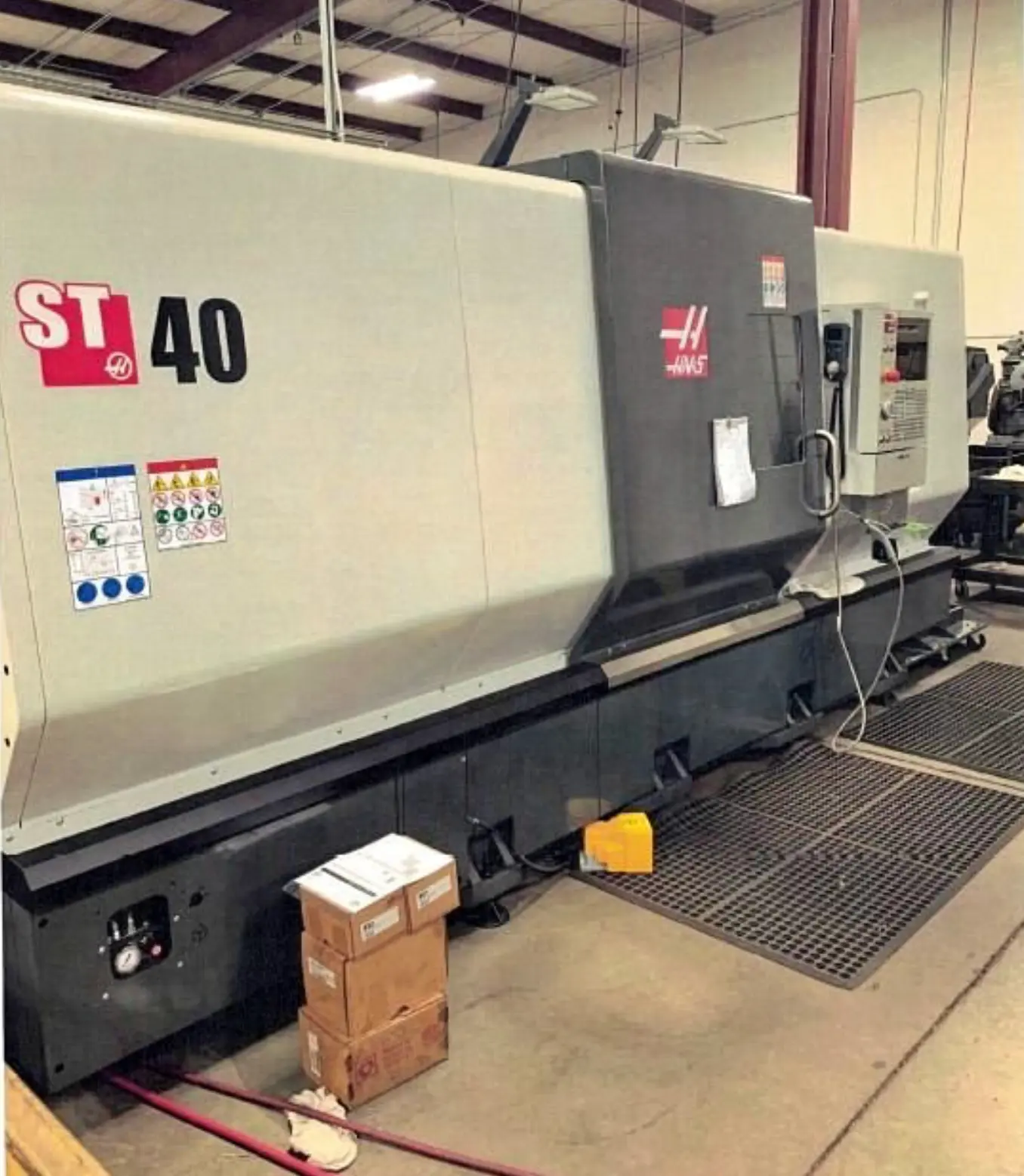

USED 2019 HAAS ST-40

Swing Diameter Over Front Apron 34.5 in
Swing Diameter Over Cross Slide 25.5 in
Swing Diameter Over Tailstock 25.5 in
Chuck Size 15.0 in
Max Cutting Diameter (varies with turret) 25.5 in
Max Cutting Length (varies with workholding) 44.0 in
Bar Capacity 4.00 in
X Axis Travel 17.0 in
Z Axis Travel 44.0 in
Rapids on X 710 ipm
Rapids on Z 710 ipm
Max Thrust X 5500 lbf
Max Thrust Z 9000 lbf
Spindle Nose A2-8
Max Rating 40.0 hp
Max Speed 2400 rpm
Max Torque 1400 ft-lbf @ 150 rpm
Spindle Bore ø 4.62 in
Drive System 2-Speed Gearbox
Max Rating 55.0 hp
Max Speed 2400 rpm
Max Torque 2100 ft-lbf @ 150 rpm
Input AC Voltage (3 Phase) - Low 220 VAC
Full Load Amps (3 Phase) - Low 105 A
Input AC Voltage (3 Phase) - High 440 VAC
Full Load Amps (3 Phase) - High 53 A
Number of Tools 12-Station BOT
OD vs ID Tools Any Combination (will vary with turret)
Boring Bar Rear Clearance (from back of turret ) 4.37 in
Never powered up nor used
X-axis Travel: 17"
Z-axis Travel: 44"
Chuck Size: 15" Hydraulic
Spindle Speed: 2400 rpm
Spindle Nose: A2-8
Power: 40 hp
Bar Capacity: 4.0"
Number of Tools: 12-Station BOT
Hours: Zero cutting (unused)
