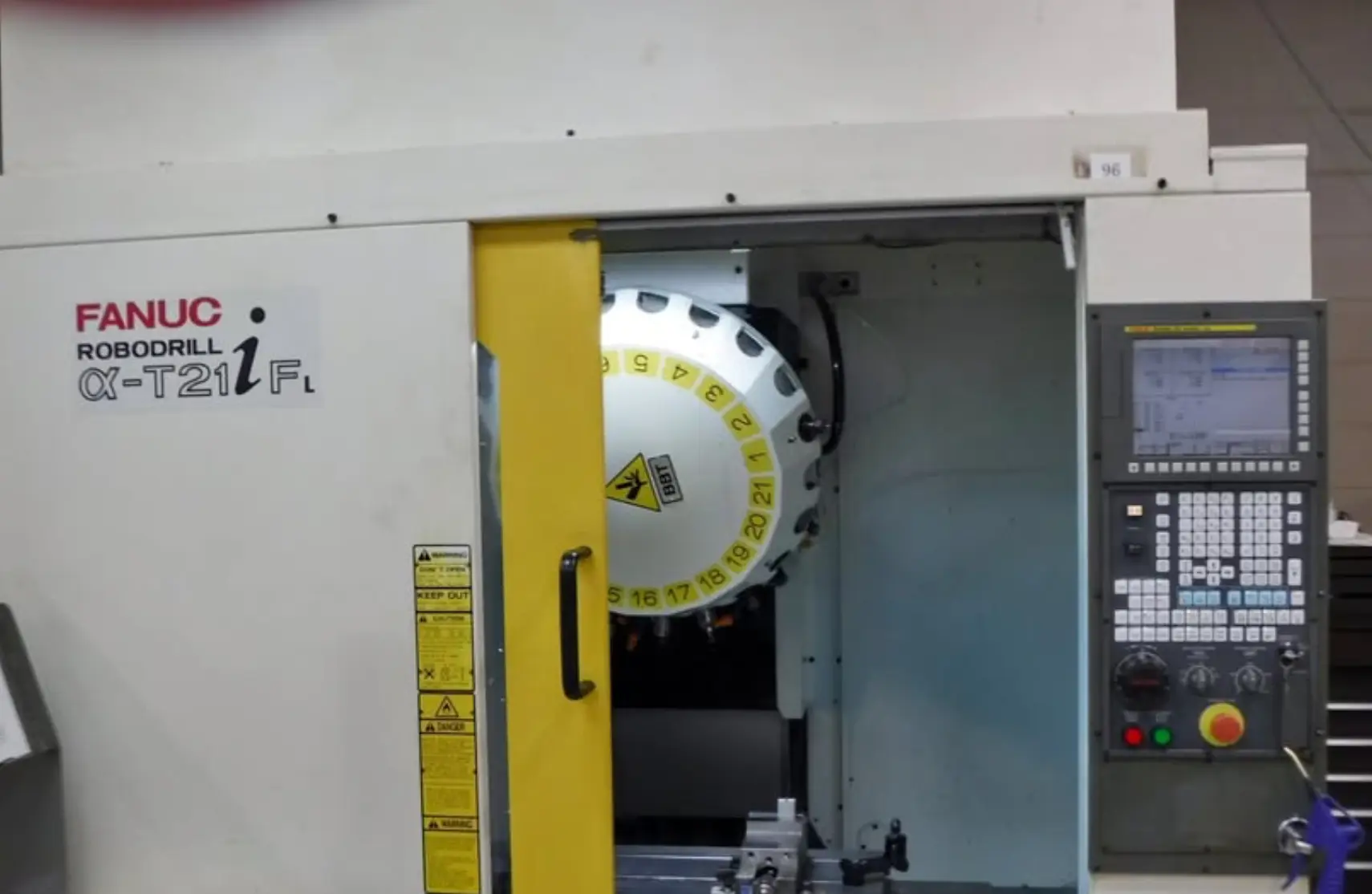

Used Vertical machining center. Features X axis travel of 27.5", 10,000 RPM spindle speed, and 21 tool ATC. Includes Renishaw probing, spindle chiller, and coolant tank.
| X | 27.5" | 698.5 mm |
| Y | 15.7" | 398.78 mm |
| Z | 13" | 330.2 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 21 | 21 |
| Taper | BT-30 | BT-30 |
| Table-W | 33.46" | 849.88 mm |
| Table-L | 16.14" | 409.96 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 84" x 64" x 116" H | 84" x 64" x 116" H |
X Axis Travel: 27.5"
Y Axis Travel: 15.74"
Z Axis Travel: 13"
Table Size: 33.46" x 16.10"
Max Workpiece weight: 660 lbs
Max Spindle Motor: 15 HP
Spindle Speed: 10,000 RPM
Spindle Taper: BT-30
Tool Changer: 21 ATC
Rapid Rate X/Y/Z Axis: 2,125 IPM
Max. Distance Spindle Nose to Table top : 29.75"
Dimensions: 84" x 64" x 116" H
Renishaw Probing included
21 Tool Capacity
Extended X-axis Travel: 27.5"
Extended Table Length: 33.4"
Coolant tank
Spindle Chiller
