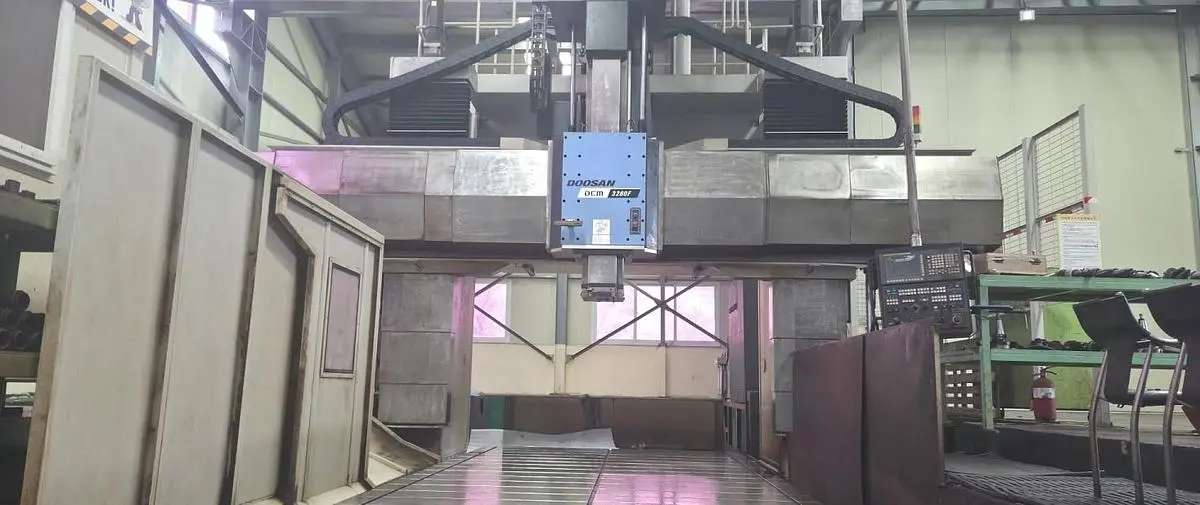

USED 2016 DOOSAN DCM 3280
Overview

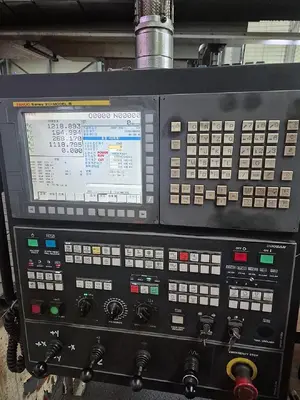

Fanuc 31iB CNC Control
Scales XYZW
Chip conveyor
20 bar spindle thru coolant
90 Position Automatic Tool Changer

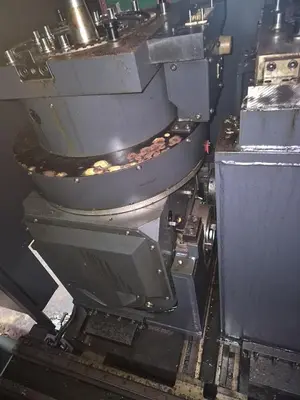

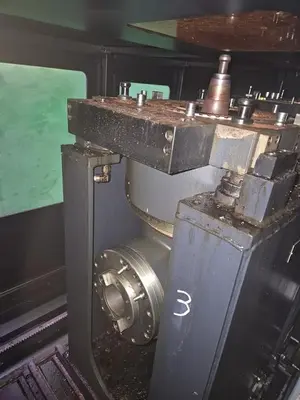

4 Position Linear Automatic Attachment Changer:
90 degree angle head (5 degree indexing), 2000 rpm
Universal head (A/C) 1 degree indexing. 4000 rpm
Extension Head 600mm, 4000 rpm
Specs
Manufacturer: Doosan
Model: DCM 3280
Year: 2016
Condition: Used
Stock Number: 5654368
Between columns: 3,200 mm
Spindle speeds: 4,000 rpm (Gearbox head)
Table to spindle nose: 2,000 mm
X axis travel: 8,250 mm
Y axis travel: 3,700 mm
Z axis travel: 1,000 mm
W axis travel: 1,450 mm
Table size: 2,700 x 8,100 mm
Table capacity: 40 Ton
Ram size: 380 x 380 mm
Spindle drive motor: 30 / 37 kW
Spindle taper: BT 50
Machine weight: 94,000 kg
Electrics: AC 220 V, 3 Ph, 50/60 Hz
