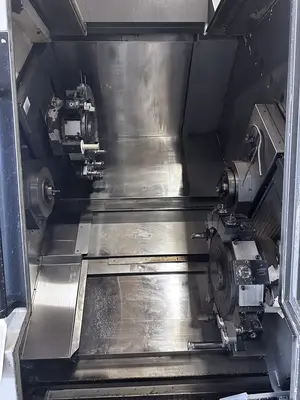

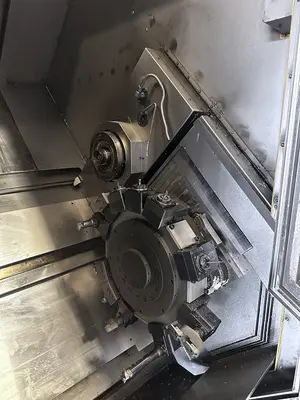

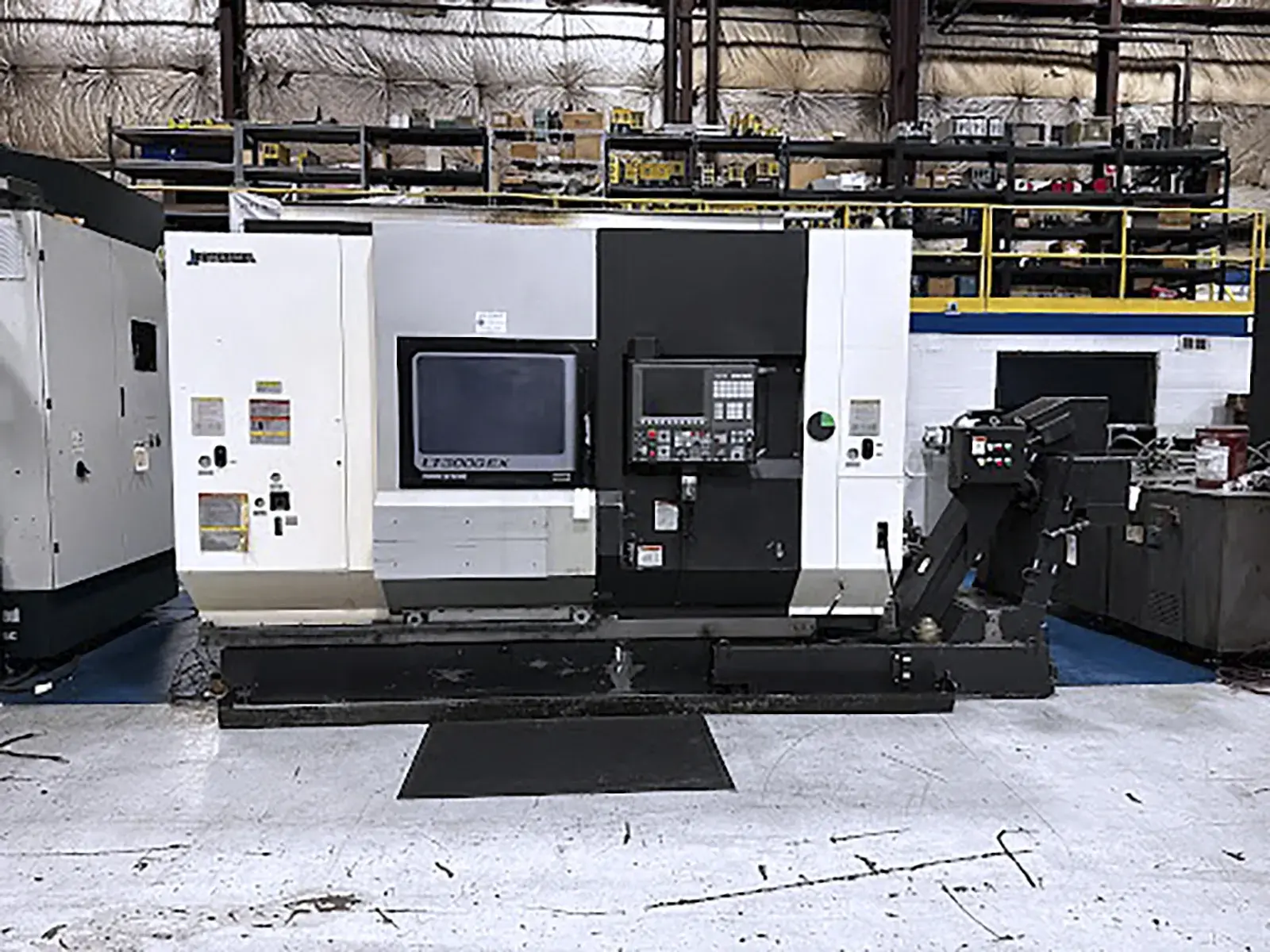

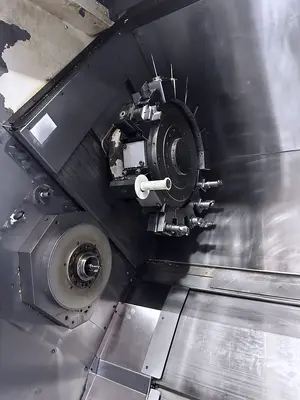

USED 2013 Okuma LT3000EX-2MY

The Okuma LT3000EX-2MY CNC Lathe (2013) with OSP-P300L control is a high-performance multitasking turning center designed for complete "done-in-one" machining. Featuring twin spindles, Y-axis capability, and live tooling on upper and lower turrets, it efficiently handles complex turning, milling, drilling, and tapping operations for aerospace, automotive, medical, and energy industry applications.

Type of cnc control: OSP-P300L
# Axis: 9
Swing: 21.66 inch (550.16 mm)
Turning Diameter: 13.78 inch (350.01 mm)
Center Distance: 47.25 in (1,200.15 mm)
Bar Capacity: 2.75 inch (69.85 mm)
X Axis Travel: 10.04 inch (255.02 mm)
X2 Travel: 10.04 inch (255.02 mm)
Z Axis Travel: 36.61 in (929.89 mm)
Z2 Travel: 36.61 in (929.89 mm)
Y-Axis Travel: 4.92"
C1/C2 Axis Index: 0.001°
B Axis Travel (Sub Spindle): 37.01 in (940.05 mm)
Y-Axis: Yes
Spindle Nose: A2-6
Spindle Speed: 5,000 rpm
Main Motor: 30 hp
Sub Spindle: Yes
Sub Spindle Bar Capacity: 2.75 in (69.85 mm)
Sub Spindle Speed: 5,000 rpm
Sub Spindle Motor: 30 hp
Live Tooling: Yes
Live Tooling Speed: 6,000 rpm
Live Milling Motor: 10 hp
Tailstock: No
Number of Turrets: 2
Turret Capacity: 16 + 16
Machine Dimensions: 158" x 110" x 118"
Machine Weight: 25,000 lbs (11,339.80 kg)

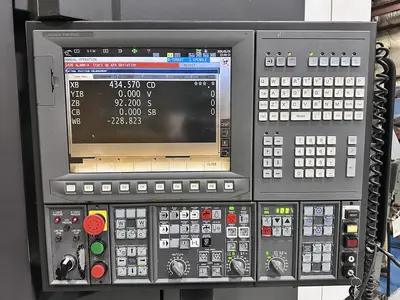

- Okuma OSP-P300L CNC Control

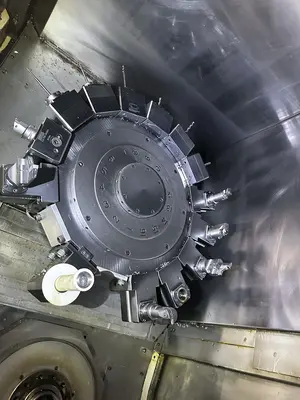

- Upper & Lower Turrets
- 6 Live Tools
- Y Axis (Both Turrets)
- Sub Spindle
- Chip Conveyor
- Coolant Tank & Pumps
- Hi-G Control
- Tool Life Management
- Tool Wear Compensation
- Misc. Tooling Available
- MP Coolant System
- High Pressure Coolant
