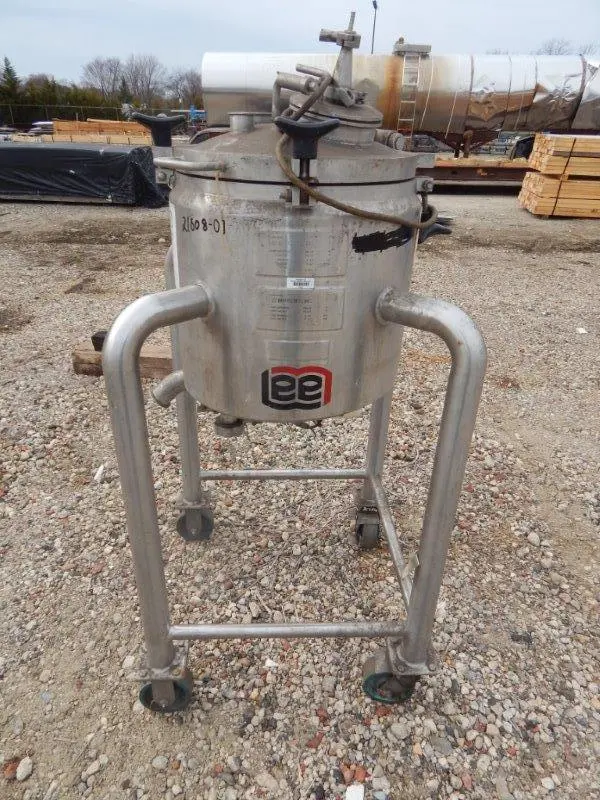

Used Approximately 8 Gallon Portable Stainless Steel Reactor
Manufacturer: Lee Industries Inc.
Capacity: 8 gallons (30 liters)
Model: 30LUTBT
Serial: C1084A
Year: 1995
Internal pressure: 15/FV @ 250°F
Jacket pressure: 100 psi @ 338°F
Dimensions: 16" dia. x 6" straight side
Clamped dish top, sloped bottom
Bottom entering agitator driven by 1/20 hp variable speed motor
Polished stainless steel internal
Mounted on (4) stainless steel legs with castors
| Capacity | 8 gal | 30.3 L |
| Type of stainless | Polished | Polished |
| Internal Pressure | 15 PSI | 1 bar |
| Internal Temperature | 250°F | 121.1°C |
| Jacket Pressure | 100 PSI | 6.9 bar |
| Diameter | 16" | 406.4 mm |
| Straight Side | 6" | 152.4 mm |
| Type Of Heads | Clamped dish top, sloped bottom | Clamped dish top, sloped bottom |
| Legs/Lugs | 4 | 4 |
| Dimensions | 16" dia. x 6" straight side | 16" dia. x 6" straight side |
