Used

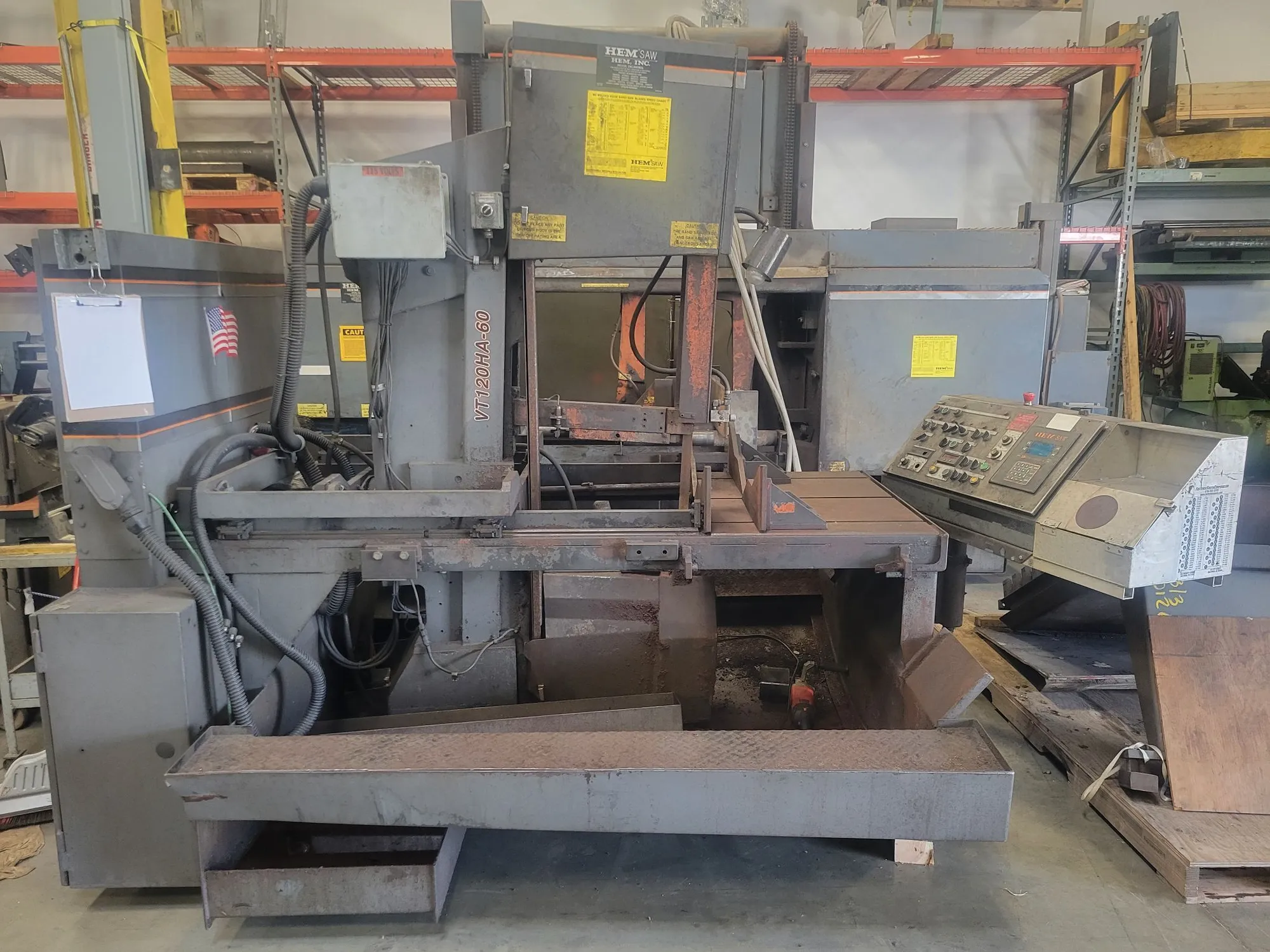

USED 2007 HEM VT120HA-60

Illinois, United States
185Listings|40Followers
Overview
Vertical Band Saws

HEHEM Smart, Programmable vertical infeed bandsaw, 60 degree tilt left or right programmable through the control, Auto feed with multiple feed and auto kerf compensation, Job memory, Variable speed Blade drive AC inverter, 16'6" x 1,1/4" Blade, extra shuttle vise and 2nd vise on table makes for four total, 4 degree canted head, Hour meter with 3523 hours showing, Power Feed table lift, Power guide arm, power tilt, Chip conveyor and Chip boxes, all availble manuals and 6 month WarrantyM vertical infeed, Programmable, 60 degree mitering left or right, Fully automatic, vertical bandsaw

Specs
Throat
18"
457.2 mm
Work Height
24"
609.6 mm
Power
7.5 hp
5.6 kW
Blade Width
1.25"
31.75 mm
Blade Length
16.6"
421.64 mm
Control
CNC (HEM Smart)
CNC (HEM Smart)
Dimensions
10' x 7'6" x 8' tall Machine, 7' x 6' x 4' tall Feed
10' x 7'6" x 8' tall Machine, 7' x 6' x 4' tall Feed
Weight
6000 lbs
6000 lbs

Saw Model VT 120HA 60.
Saw type = Vertical Band saw
Miter capacity= 60 degrees left or right
Capacity 90 degrees = 18"W x 24" H
Capacity 45 degrees 18" W x 16" H
Capacity 60 degrees 18" W x 10" H left
Capacity 60 degrees 18"W x 9" H right
Motor = 7.5 HP Variable frequency drive
Operation Automatic , Programmable

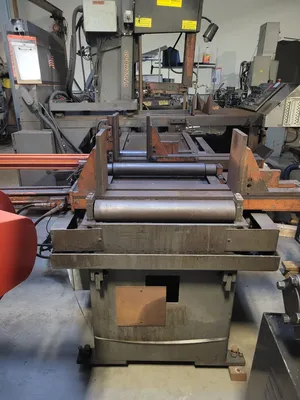

Bar feed 0" - 48" stroke with full stroke vises
STANDARD FEATURES
Swing away console with programmable control
programmable powered tilt W Angle readout
4 degree fixed cant
adjustable blade speed with read out
Powered adjustable guide arm
Powered blade tension
Material jogging feature

Equipped With

Power Blade guide, 4 Power vises, Power and programmable tilt, SMART Control, 4 degree canted head, extra vise on 48" material infeed, Swing away control, Coolant system, Work light, chip conveyor and manuals and a 6 month warranty after refurbishing
