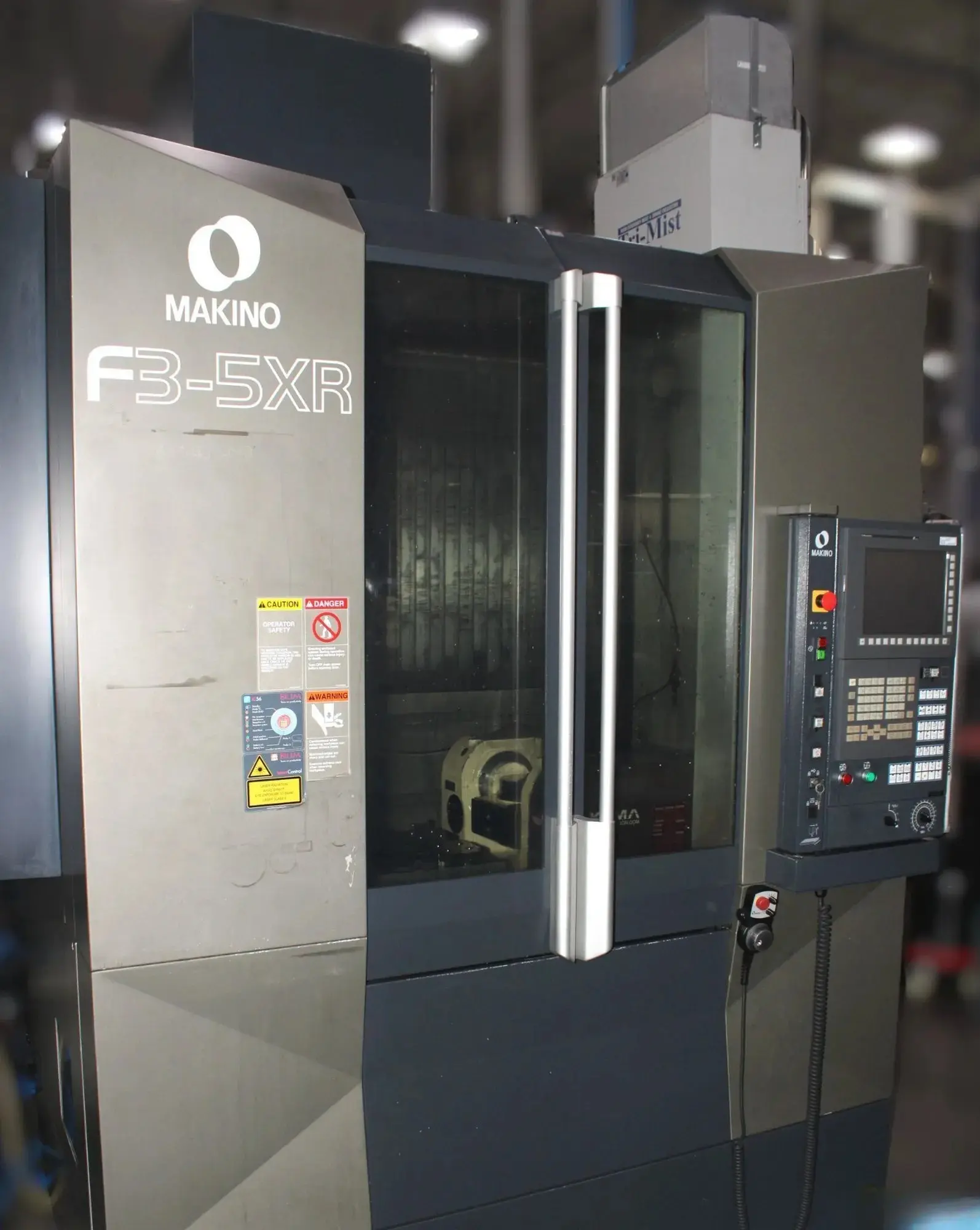

USED 2017 MAKINO F3-5AX
Overview
MAKINO F3-5AX 2017 Vertical Machining Center in used condition. Ideal for complex and precise machining tasks. Enhance your production capabilities with this versatile 5-axis equipment from a reputable manufacturer.
Specs
SPECIFICATIONS:
X-AXIS 25.6"
Y-AXIS 19.7"
Z-AXIS 17.7"
# AXIS 5
POWER 20 HP
RPM 20,000 RPM
# ATC 30
TAPER HSK-A63
CONTROL CNC
DIMENSIONS 99" W x 103" D x 120" H
WEIGHT 16,600 LBS
Table Working Area 33.5" x 19.7"
Maximum Table Load 1,760 LBS
Rapid Traverse 20,000 mm/min
Cutting feed 1 - 20,000 mm/min
Equipped With
Komo TND-160M 5-Axis Trunnion CNC Rotary Table (Removeable)
specs on the rotary table"
Tilt Range -30 to + 110 Degrees
Table Diameter 6.3"
Table Max RPM - Tilt 11.1 RPM, Rotary 41.6 RPM
Servo Motors are Fanuc
Makino Professional 5 (5-Axis CNC control)
Chip Blaster Coolant Through The Spindle Unit , Model D30-35
Tooling
Used for High Precision Medical Parts. 3 identical Macines Available
