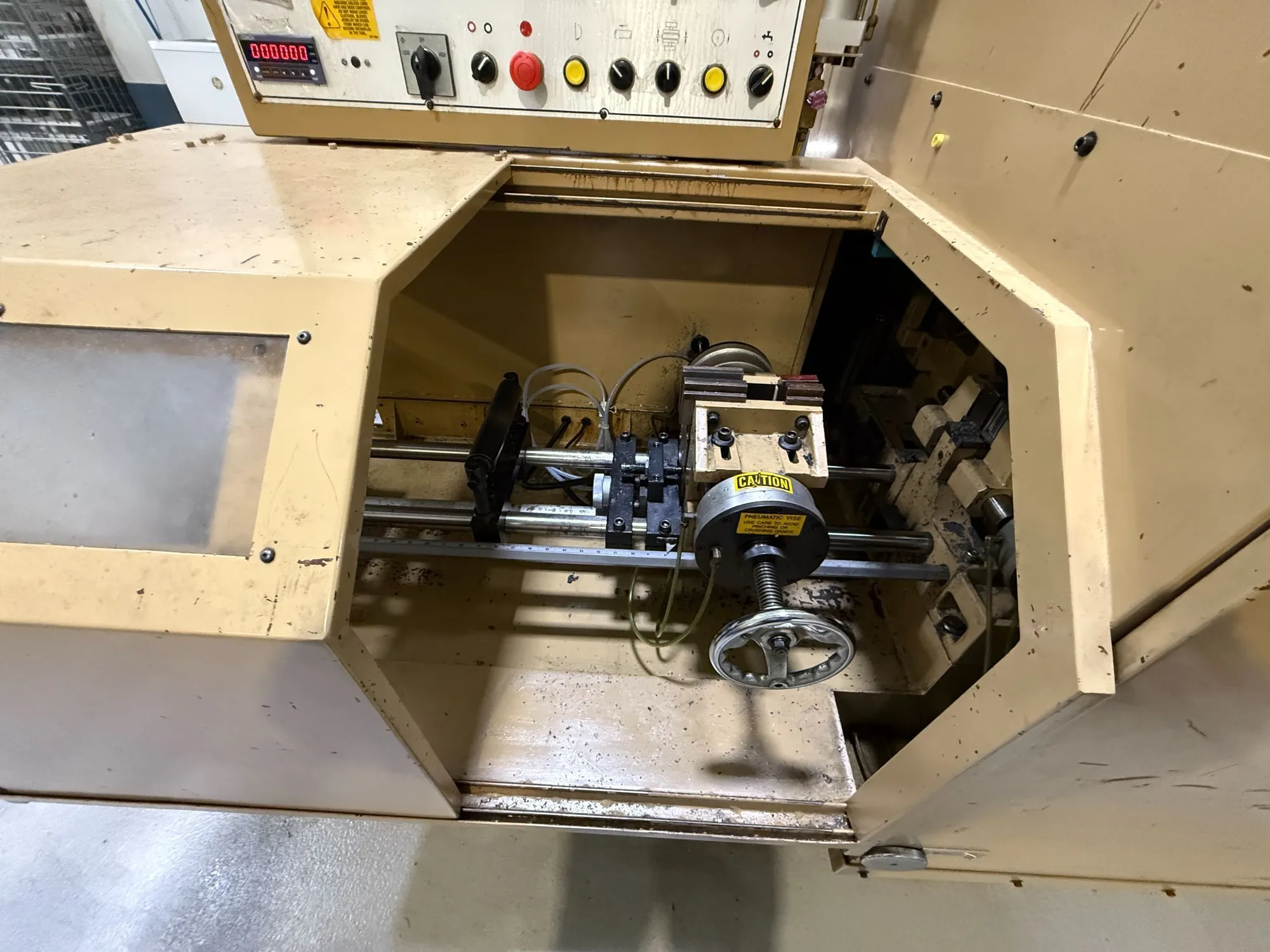

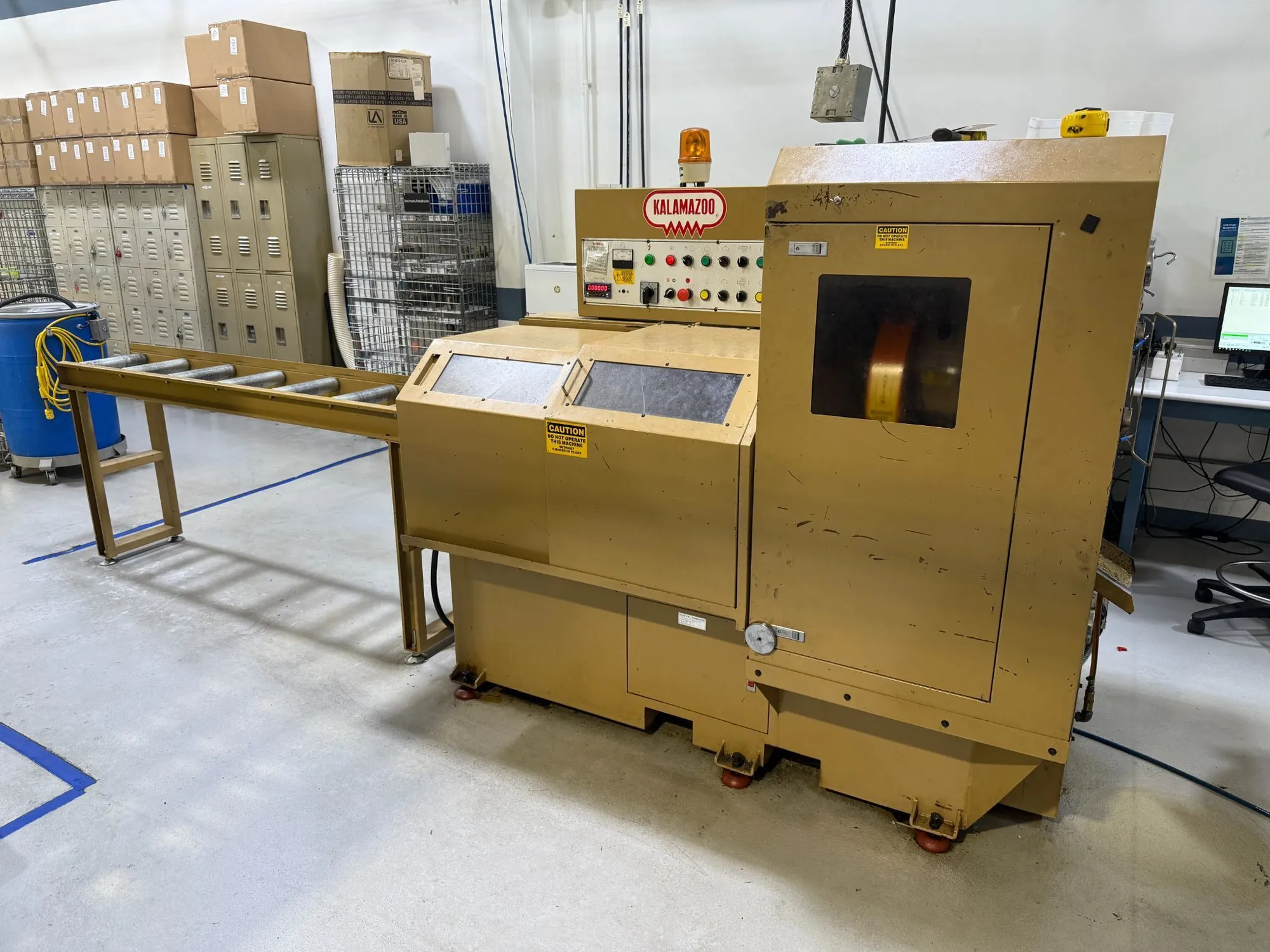

USED 2007 KALAMAZOO INDUSTRIES FHC-350A
Overview
Specifications
| Blade Dia | 14" | 355.6 mm |
|---|---|---|
| MAX CLAMPING CAP | 4.75 in | |
| SPINDLE SPEEDS | 70/35 | 70/35 |
| FEED LENGTH RANGE - SINGLE STROKE | .2" - 27.5" | .2" - 27.5" |
| FEED LENGTH RANGE - DOUBLE STROKE | .2" - 55" | .2" - 55" |
| FEED LENGTH RANGE - SINGLE STROKE | .2" - 82.5" | .2" - 82.5" |
| RECOMMENDED CUTTING CAPACITY - ROUND TUBE @ 90 DEG | 4.33 in | |
| RECOMMENDED CUTTING CAPACITY - RECTANGULAR TUBE @ 90 DEG | 4.33" x 2" | 4.33" x 2" |
| RECOMMENDED CUTTING CAPACITY - SQUARE TUBE @ 90 DEG | 4 in | |
| RECOMMENDED CUTTING CAPACITY - ROUND SOLID @ 90 DEG | 2.36 in | |
| RECOMMENDED CUTTING CAPACITY - SQUARE SOLID @ 90 DEG | 2 in | |
| APPROX MACHINE DIMENSIONS | 88" L x 48" W x 73" H | 88" L x 48" W x 73" H |
| Machine Weight | 2,100 lb | 952.5 kg |
Equipped With
KALAMAZOO FHC-350A AUTOMATIC FERROUS CUTTING CIRCULAR SAW, 2007
MAX BLADE SIZE:………………………………………14”
MAX CLAMPING CAP,…………………………………4.75”
SPINDLE SPEEDS:…………………………………….70/35
FEED LENGTH RANGE:
SINGLE STROKE:……………………………………. .2” – 27.5”
DOUBLE STROKE:………………………………….. .2” – 55”
SINGLE STROKE:…………………………………… .2” - 82.5”
RECOMMENDED CUTTING CAPACITY:
ROUND TUBE @ 90 DEG.:…………………………..4.33”
SQUARE TUBE @ 90 DEG:…………………………..4”
RECTANGLAR TUBE @ 90 DEG.:………………….4.33 X 2”
ROUND SOLID @ 90 DEG:………………………….2.36”
SQUARE SOLID @ 90 DEG:…………………………2”
APPROX. MACHINE DIM:……………………………88” l X 48” W X 73” H
APPROX. WEIGHT:…………………………………….2,100 LBS.
WITH:
AUTOMATIC CUTTING CYCLE
AUTOMATIC FEED RATE
AUTO SHUT-OFF & CLAMPING AT END OF CUT
AUTOMATIC PIECE COUNTER
SELF-CENTERING VISE HYDRAULIC DOUBLE VISE
UP TO 3 CUT-OFF INDEXES FOR LONGER PIECES
ENCLOSED WORM GEAR DRIVE FOR TROUBLE-FREE OPERATION
TWO SPEEDS FOR VERSATILITY
COOLANT SYSTEM
5 FOOT ROLLER STOCK TABLE
