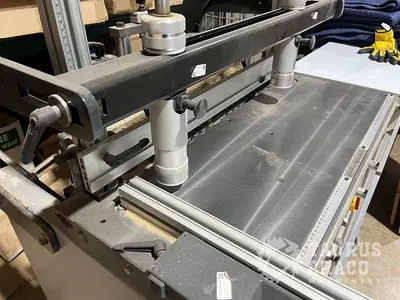

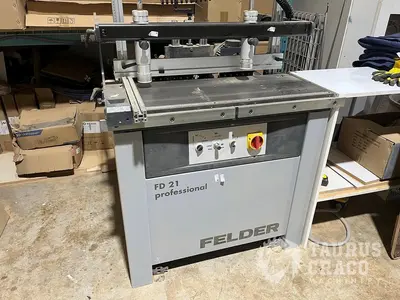

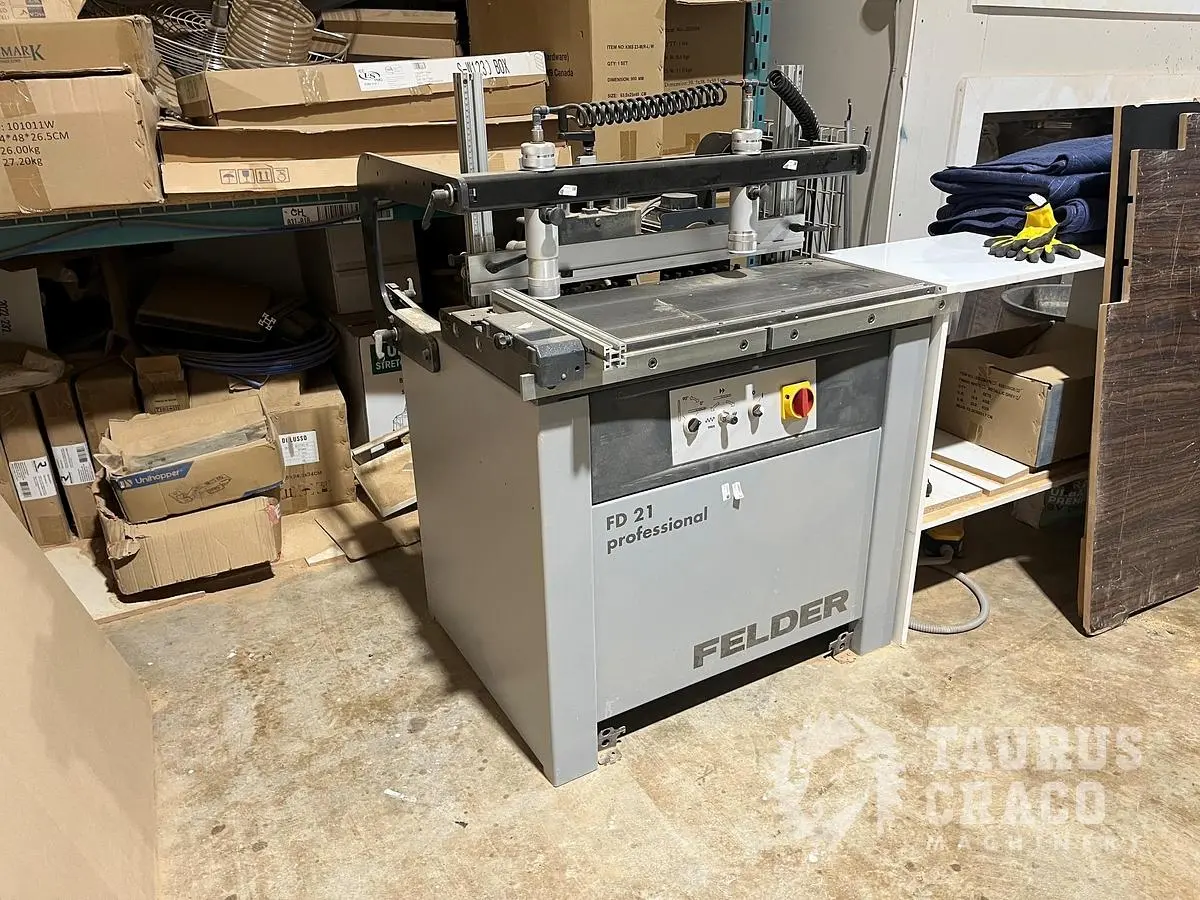

USED 2023 FELDER FD 21 PRO LINE BORING MACHINE

Manufacturer: Felder
Model: FD 21 Pro
Year of Manufacture: 2023
Condition: Used – Excellent Condition
Machine Type: Line Boring Machine / Multi-Spindle Drilling Machine
The Felder FD 21 Pro is a high-precision, industrial line boring machine designed for accurate and repeatable drilling of cabinet components, shelving systems, and furniture parts. Featuring a 21-spindle drilling head on 32 mm centers, this machine delivers fast, consistent results for doweling, shelf pins, and hardware preparation.

Built with Felder’s premium engineering and a heavy-duty frame, the FD 21 Pro offers exceptional stability, ease of use, and repeatability. Its compact footprint and single-phase electrical configuration make it ideal for both custom shops and production environments without requiring 3-phase power.

This 2023 unit is in excellent condition and represents a near-new opportunity at a fraction of replacement cost.

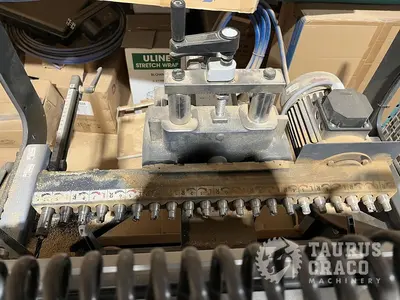

21-spindle drilling head (32 mm system)
Precision line boring for cabinets and furniture production
Pneumatic clamping for consistent material positioning
Tilting drill head for vertical and horizontal boring (0°–90°)
Adjustable drilling depth and fence positioning
Compact, space-efficient design
Single-phase power, ideal for small to mid-sized shops
Heavy-duty Felder construction for long-term reliability
Workpiece Length (Width):
Minimum: 60 mm
Over 800 mm: Requires roller support or second operator
Workpiece Depth:
Minimum: 60 mm
Workpiece Thickness:
Minimum: 8 mm
Maximum: 65 mm
Drilling Data:
Number of Spindles: 21
Spacing: 32 mm system
Max Drilling Depth: ~70 mm
Voltage: 230 V
Frequency: 60 Hz
Phase: 1-Phase
Current: 8.9 Amps
Motor Power: 1.5 kW
2023 machine, lightly used
Excellent mechanical and cosmetic condition
Clean shop environment
Fully functional and production-ready
The Felder FD 21 Pro is a premium line boring solution offering outstanding precision, repeatability, and ease of operation. This unit is an ideal upgrade for shops looking to improve efficiency and consistency in cabinet and furniture production while maintaining a simple, operator-friendly workflow.
