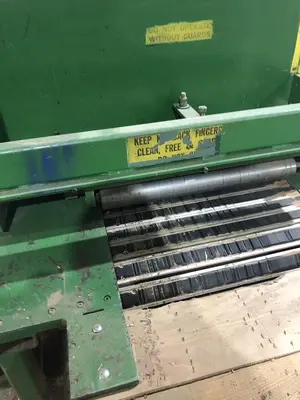

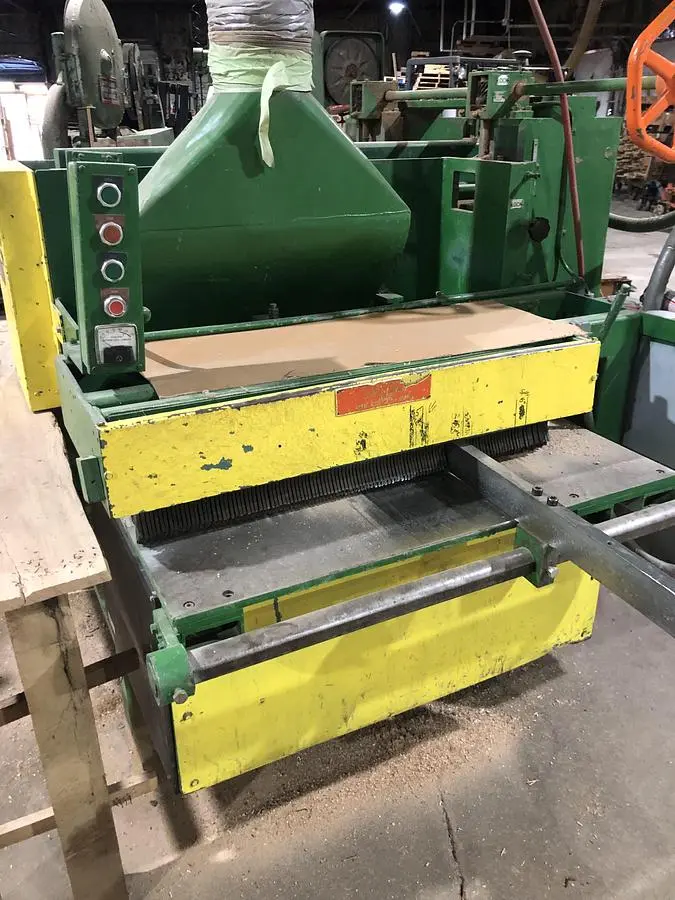

MEREEN JOHNSON "424-DC" 24” DIP CHAIN GANG RIPSAW

MEREEN JOHNSON "424-DC" 24” DIP CHAIN GANG RIPSAW

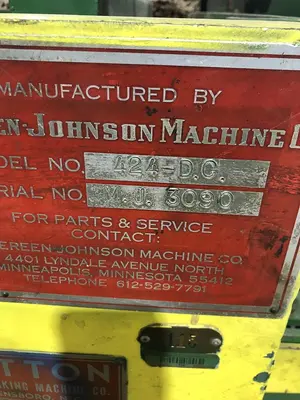

S/N:3090, (230/460/60/3 electrics), H-2278


Standard Specifications:

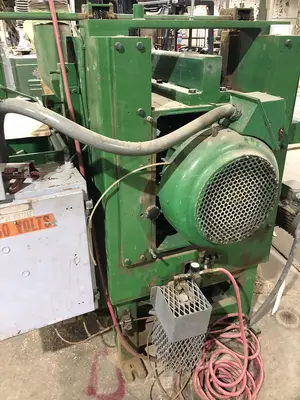

- 75 HP, 230/460/60/3, 3,560 RPM arbor motor, (direct drive w/disc brake) (To be verified)
- 24” arbor capacity, (14” max. saw blade diameter)
- 3-1/2” max. work-piece thickness capacity
- 22” min. work-piece length
- 3 HP feed chain motor, (variable speed from 50 to 150 FPM)
- (4) 3" diameter pneumatic overhead pressure rolls
- Full width spring loaded overhead bedplate w/scale & pointer reference
- (1) lower & (2) upper rows of infeed anti-kickback fingers
- 87” x 83” s 83” approx. overall dimensions and weighs approx. 10,500 lbs.

Condition: Used
Stock Number: H-2278
