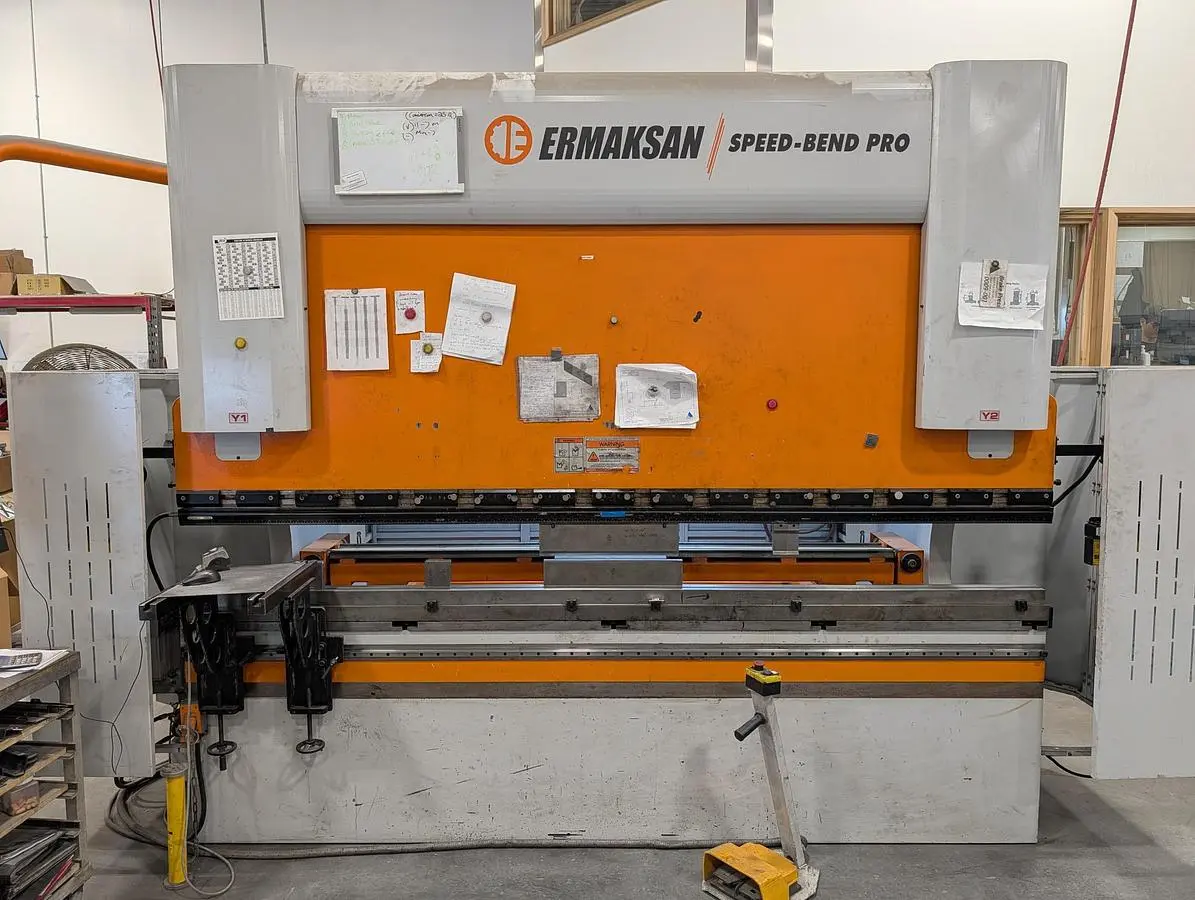

USED ERMAKSAN SB 3100-135
Overview
Specs
Capacity: 150 Tons
Overall Bending Length: 10.17"
Distance Between Housings: 102.4"
Y Rapid Speed: 7.87
Y Working Speed: .47
Y Return Speed: 7.48
Travel in X Axis: 31.5
Speed of X Axis: 19.7
Speed of Z1,Z2 Axes: 39.37 IPS
Throat: 16.1"
Daylight: 21.7"
Stroke: 10.8"
Back Gauge Travel: 31.5"
Back Gauge Speed: 9.84 IPS
Dimensions (approx): 167"x77"x110"H
Weight (approx.): 19,000
Equipped With
Equipped with:

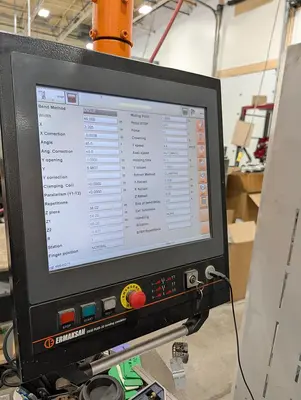

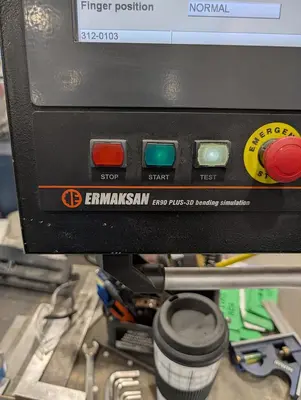

Ermak ER90 3D Control
Y1,Y2,X,R, Z1, Z2 Axes
CNC Crowning

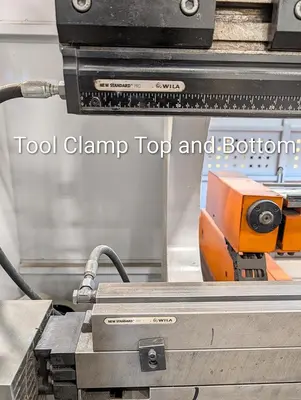

Wila Hydraulic Clamping on Top and Bottom
2 Sheet Support Arms
Light Curtains
Foot Pedal
